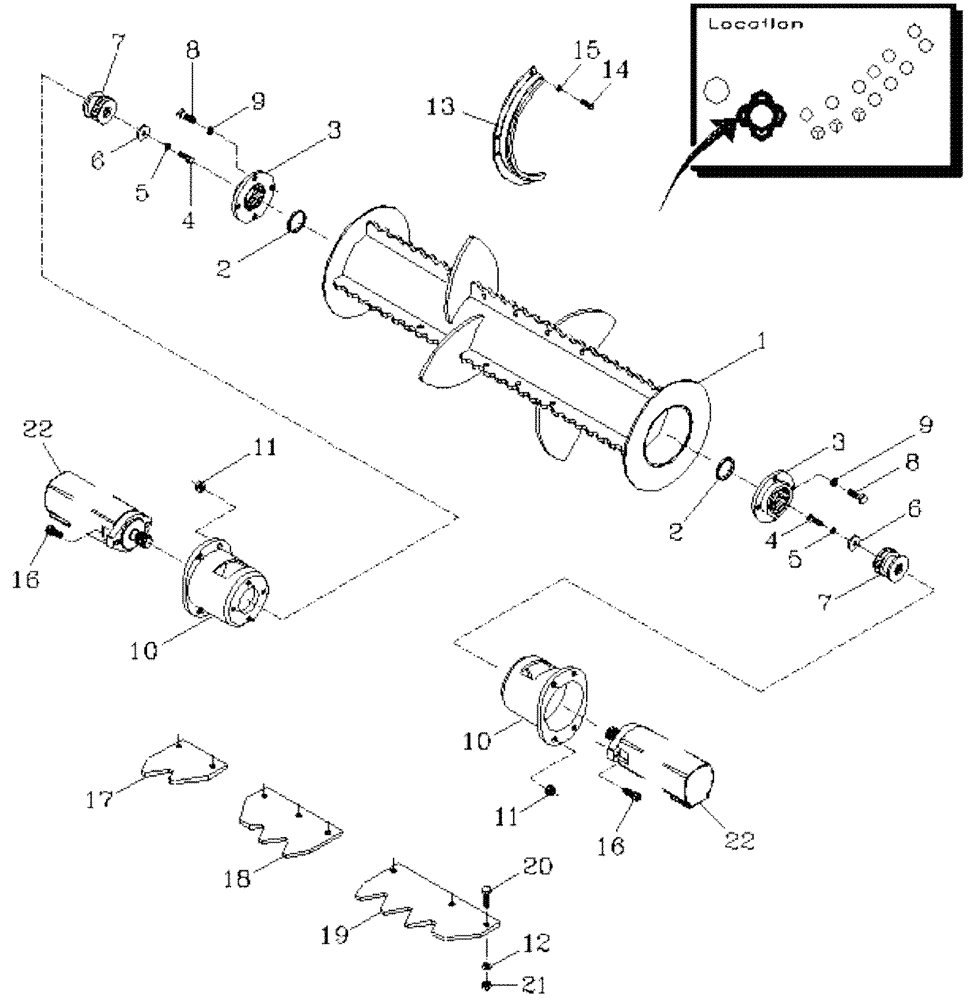

Запчасти Case IH 7700 (A05[03]) - FINNED ROLLER Mainframe & Functioning Components

1

397894A1

ROLLER,262.3mm OD x 1058mm L

1шт.

2

86701900

SPACER,52mm ID x 63mm OD x 5mm L

if required

1шт.

3

86700800

ADAPTER

2шт.

4

00601499

BOLT

2шт.

5

00605827

WASHER

2шт.

6

86778400

WASHER,10.5mm ID x 38.5mm OD x 5.15mm Thk

WASHER

2шт.

7

86701200

GEAR

pinion

2шт.

8

FA112025

BOLT

8шт.

9

WB120000

WASHER

8шт.

10

87096600

HOUSING

2шт.

11

825-51412

FLANGE NUT,M12, Flg Ser

8шт.

12

WA120000

WASHER

16шт.

13

86990989

BAFFLE

2шт.

14

FC108020

SCREW,M8 x 1.25 x 20mm

6шт.

15

WB080000

WASHER

6шт.

16

00604538

SCREW

4шт.

450956A1

KIT

KIT EXTREME CONDITIONS

1шт.

17

86983624

SLAT

[Short] extreme conditions

2шт.

18

86983622

SLAT

[Medium] extreme conditions

2шт.

19

86983623

SLAT

[Long] extreme conditions

2шт.

20

NC112000

NUT

16шт.

21

FA112035

BOLT

16шт.

22

HYDRAULIC MOTOR

1шт.

refer to figure B03.02

1шт.
