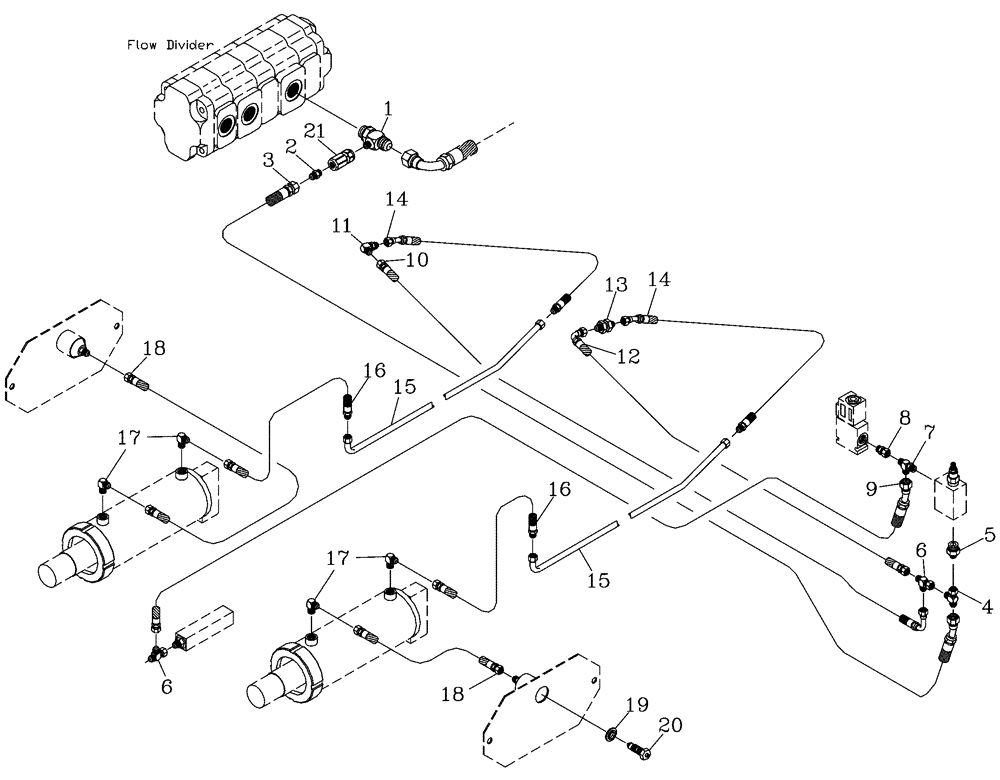

Запчасти Case IH 7700 (B12[05]) - HYDRAULIC CIRCUIT {Track Adjuster 7700} Hydraulic Components & Circuits

1

87421571

TEE

TEE

1шт.

2

00404766

HYD CONNECTOR

NIPPLE

1шт.

3

86992151

HOSE,9.53mm ID x 1280mm L, SAE 100R17

HOSE

1шт.

4

00408682

TEE

1шт.

5

00400073

HYD CONNECTOR

Nipple

1шт.

6

00404677

TEE

2шт.

7

00408455

TEE

TEE

1шт.

8

00409421

HYD CONNECTOR

Adaptor

1шт.

9

86992152

HOSE,9.53mm ID x 1450mm L, SAE 100R17

HOSE

1шт.

10

87412850

HOSE

HOSE

1шт.

11

00404781

HYD CONNECTOR

B/H Elbow

1шт.

12

87235277

HOSE,6.35mm ID x 470mm L, SAE 100R17

1шт.

13

00400070

HYD CONNECTOR

B/H Nipple

1шт.

14

87421694

HOSE,6.35mm ID x 2810mm L, SAE 100R17

HOSE

2шт.

15

87421693

HYD TUBE,9.5 mm DIA

TUBE

2шт.

16

87421695

HOSE,6.35mm ID x 390mm L, SAE 100R17

HOSE

2шт.

17

00400238

HYD CONNECTOR

Elbow

4шт.

18

87412852

HOSE

HOSE

2шт.

19

00131478

WASHER

2шт.

20

00131479

VALVE

2шт.

21

HYDRAULIC CHECK VALVE [refer to figure B05.16] 3/8"

1шт.
