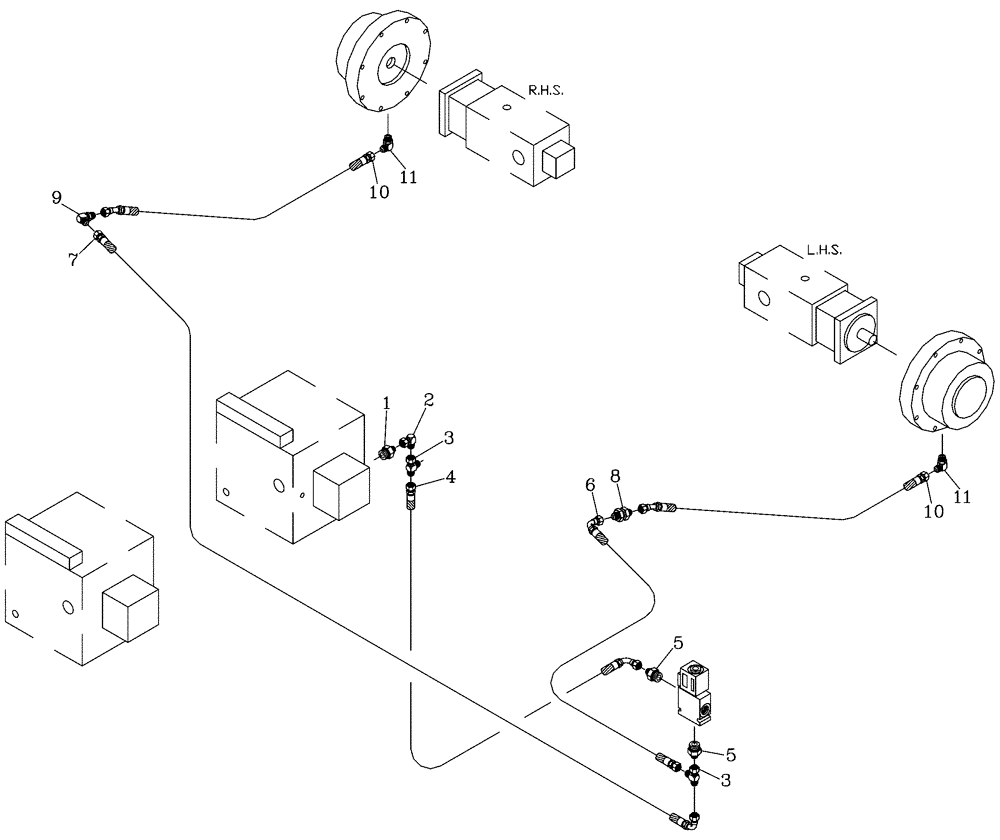

Запчасти Case IH 7700 (B12[04]) - HYDRAULIC CIRCUIT {Fail Safe Brakes 7700} Hydraulic Components & Circuits

1

00400074

HYD CONNECTOR

Nipple

1шт.

2

00402879

HYD CONNECTOR

Elbow

1шт.

3

00404677

TEE

2шт.

4

87235277

HOSE,6.35mm ID x 470mm L, SAE 100R17

1шт.

5

00400224

HYD CONNECTOR

Nipple

2шт.

6

82743100

HOSE,6.35mm ID x 350mm L, SAE 100R17

1шт.

7

86306167

HOSE,6.35mm ID x 1590mm L, SAE 100R17

HOSE

1шт.

8

00400070

HYD CONNECTOR

B/H Nipple

1шт.

9

00404781

HYD CONNECTOR

B/H Elbow

1шт.

10

87256266

HOSE,6.35mm ID x 3020mm L, SAE 100R17

HOSE

2шт.

11

00405242

HYD CONNECTOR

Elbow

2шт.
