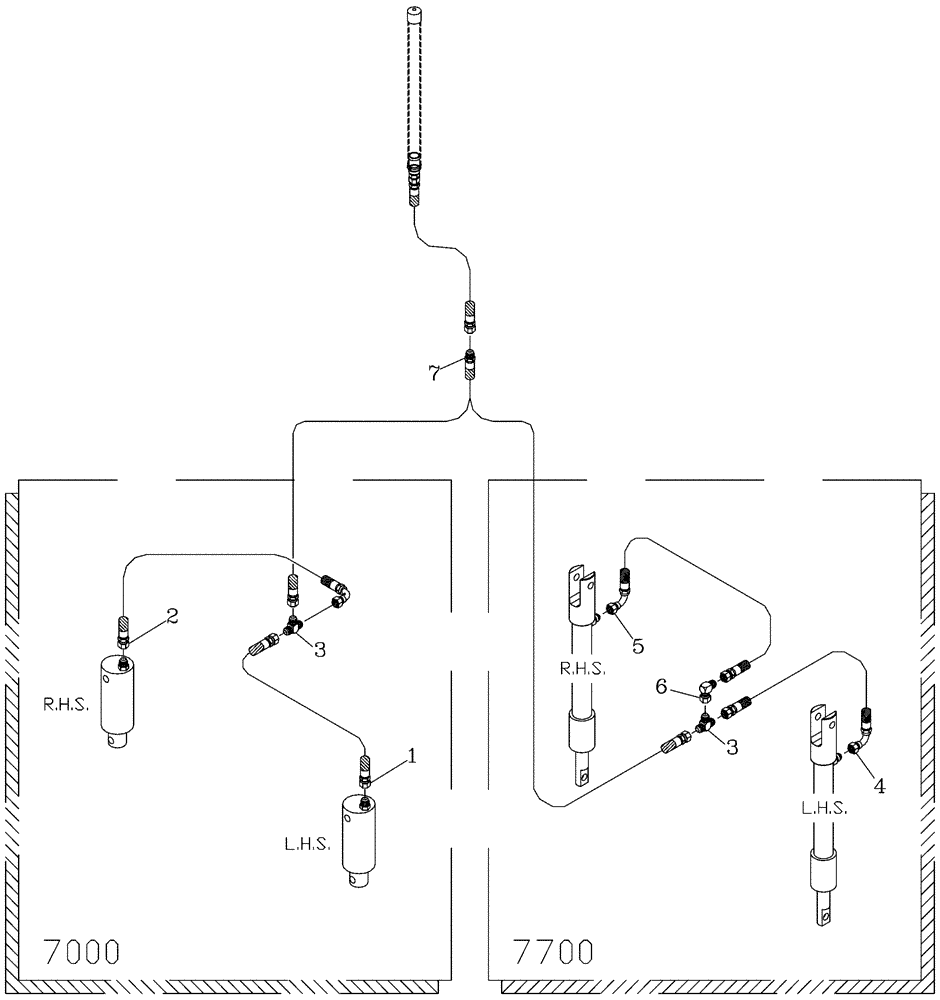

Запчасти Case IH 7700 (B11[07]) - HYDRAULIC CIRCUIT {Height Indicator} Hydraulic Components & Circuits

1

82711400

HOSE

1шт.

2

87254120

HOSE,6.35mm ID x 2450mm L, SAE 100R17

HOSE [7000]

1шт.

3

00400207

TEE

1шт.

4

82743200

HOSE ASSY.

HOSE [7700]

1шт.

5

87234593

HOSE,6.35mm ID x 1950mm L, SAE 100R17

HOSE [7700]

1шт.

6

00402879

HYD CONNECTOR

Elbow

1шт.

7

393594A1

HOSE,6.35mm ID x 250mm L, SAE 100R17

HOSE [7000]

1шт.

7

87423014

HOSE,6.35mm ID x 1250mm L, SAE 100R17

HOSE [7700]

1шт.
