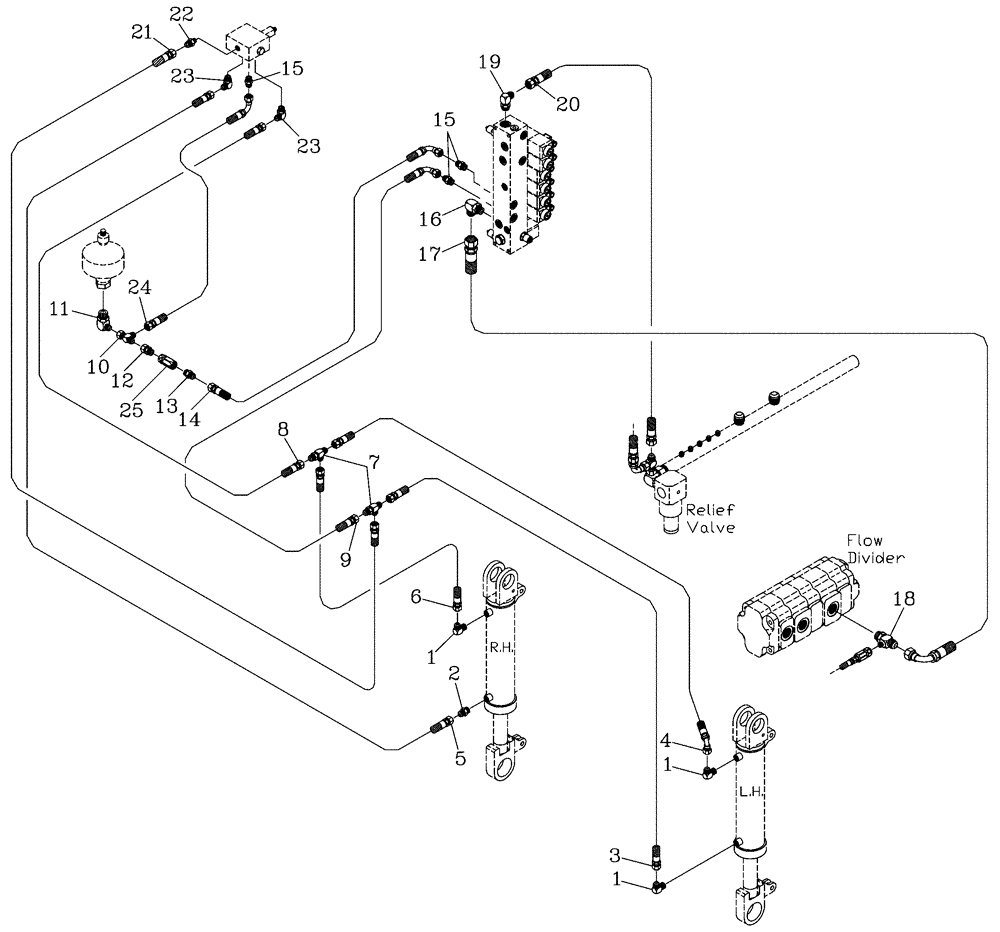

Запчасти Case IH 7700 (B11[06]) - HYDRAULIC CITCUIT {Basecutter Lift 7700 / Stability Kit 7700} Hydraulic Components & Circuits

1

00400192

HYD CONNECTOR

Elbow

3шт.

2

00400165

HYD CONNECTOR

Nipple

1шт.

3

87401092

HOSE,9.53mm ID x 1870mm L, SAE 100R17

HOSE

1шт.

4

87401091

HOSE,9.53mm ID x 1520mm L, SAE 100R17

HOSE

1шт.

5

374255A1

HOSE

1шт.

6

87401089

HOSE,9.53mm ID x 970mm L, SAE 100R17

HOSE

1шт.

7

00408876

TEE

2шт.

8

374261A1

HOSE

1шт.

9

87401088

HOSE,9.53mm ID x 980mm L, SAE 100R17

HOSE

1шт.

10

00404787

TEE

3шт.

11

00404772

HYD CONNECTOR

ELBOW

1шт.

12

87422020

HYD CONNECTOR

NIPPLE

1шт.

13

00404766

HYD CONNECTOR

NIPPLE

1шт.

14

87256256

HOSE ASSY.

1шт.

15

00400093

HYD CONNECTOR

Nipple

3шт.

16

00400243

HYD CONNECTOR

ELBOW

1шт.

17

86302744

HOSE

1шт.

18

87421571

TEE

TEE

1шт.

19

00400242

HYD CONNECTOR

Elbow

1шт.

20

87242175

HOSE,12.7mm ID x 720mm L, SAE 100R17

1шт.

21

81685300

HOSE

1шт.

22

00400225

LUBE NIPPLE

NIPPLE

1шт.

23

00400240

HYD CONNECTOR

Elbow

2шт.

24

374259A1

HOSE

1шт.

25

HYDRAULIC CHECK VALVE

1шт.

refer to figure B0516

1шт.
