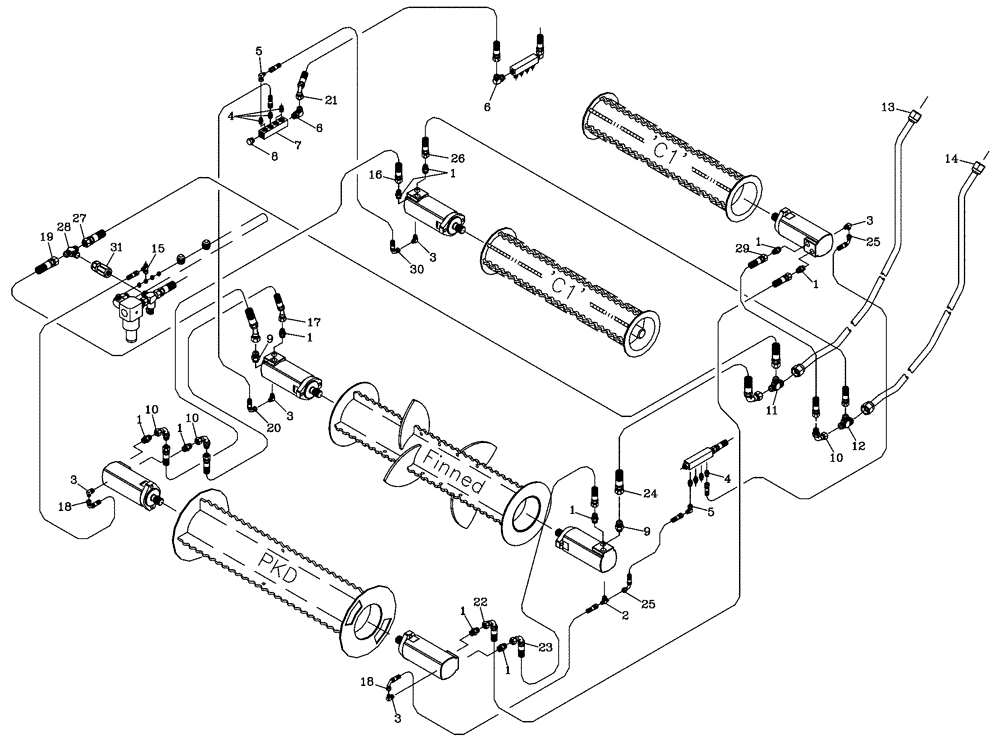

Запчасти Case IH 7700 (B08[01]) - HYDRAULIC CIRCUIT {PKD/Finned/1st & 2nd Floating Rollers} Hydraulic Components & Circuits

1

00400228

HYD CONNECTOR

Nipple

8шт.

2

00403925

TEE

1шт.

3

00405242

HYD CONNECTOR

Elbow

4шт.

4

00400223

HYD CONNECTOR

Nipple

4шт.

5

00402879

HYD CONNECTOR

Elbow

2шт.

6

00407832

HYD CONNECTOR

Elbow

2шт.

7

00409953

RETURN PIPE

Manifold

1шт.

8

00400106

HYD CONNECTOR

Plug

1шт.

9

00400229

HYD CONNECTOR

Nipple

2шт.

10

00407516

HYD CONNECTOR

Bend

3шт.

11

87226946

TEE

TEE

1шт.

12

86983880

TEE

TEE

1шт.

13

442993A1

TUBE

TUBE

1шт.

14

442994A1

TUBE

TUBE

1шт.

15

00404677

TEE

1шт.

16

87451989

PUMP

HOSE

1шт.

17

86312387

HOSE ASSY.

1шт.

18

87216749

HOSE ASSY.

2шт.

19

86308610

HOSE ASSY.

1шт.

20

87231900

HOSE ASSY.

HOSE

1шт.

21

86314817

HOSE,12.7mm ID x 1070mm L, SAE 100R16

HOSE

1шт.

22

87412284

HOSE,12.7mm ID x 3180mm L, SAE 100R17

HOSE

1шт.

23

87234096

HOSE

1шт.

24

87255572

HOSE,19.05mm ID x 1950mm L, SAE 100R16

HOSE

1шт.

25

412149A1

HOSE,6.35mm ID x 810mm L

HOSE

2шт.

26

87421990

HOSE,12.7mm ID x 2920mm L, SAE 100R17

HOSE

1шт.

27

86313007

HOSE ASSY.

HOSE

1шт.

28

00407003

TEE

1шт.

29

81673800

HOSE

1шт.

30

82743200

HOSE ASSY.

1шт.

31

HYDRAULIC CHECK VALVE 3/4"

1шт.

refer to figure B05.16

1шт.
