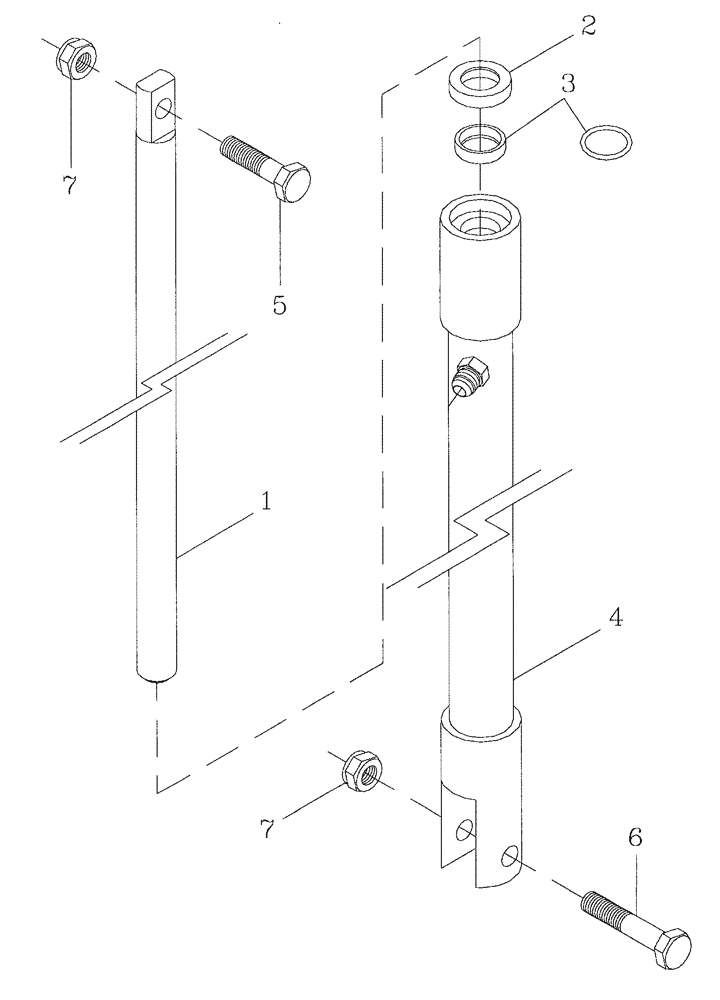

Запчасти Case IH 7700 (B02[12]) - HYDRAULIC CYLINDER, HEIGHT INDICATOR, 7700 Hydraulic Components & Circuits

1

87237350

SHAFT,22.23mm OD x 692mm L

1шт.

2

00100552

OIL SEAL

1шт.

3

00100759

OIL SEAL

1шт.

4

399041A1

CYLINDER,25mm Bore Dia

Barrel [LH]

1шт.

4

399042A1

CYLINDER,25mm Bore Dia

Barrel [RH]

1шт.

5

FM112045

BOLT

1шт.

6

FM112060

BOLT

1шт.

7

NC112000

NUT

2шт.

8

399035A1

HYDRAULIC CYLINDER

Assembly [LH] Excludes Items 5-7

1шт.

8

399036A1

HYDRAULIC CYLINDER

Assembly [RH] Excludes Items 5-7

1шт.
