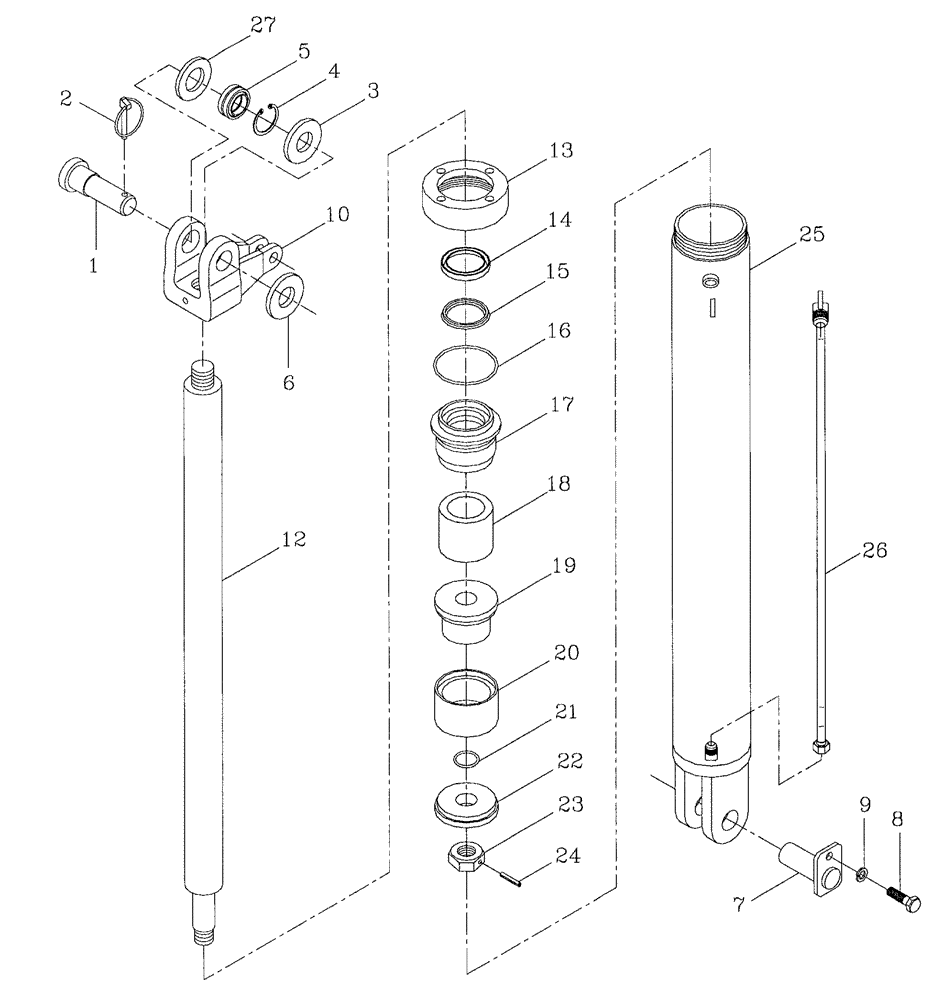

Запчасти Case IH 7700 (B02[11]) - HYDRAULIC CYLINDER, BASECUTTER LIFT, 7700 Hydraulic Components & Circuits

1

87237359

PIN,29mm OD x 96.5mm L

1шт.

2

00606627

PIN

Lynch

1шт.

3

87253423

SPACER, RING

1шт.

4

CI042000

CIRCLIP

1шт.

5

00141584

BEARING

1шт.

6

WA250000

WASHER

1шт.

7

87237362

PIN,25mm OD x 75mm L

1шт.

8

FM110025

BOLT

1шт.

9

WB100000

WASHER

1шт.

10

87247758

CLEVIS

[LH]

1шт.

10

87248388

CLEVIS

[RH]

1шт.

12

87237339

SHAFT

1шт.

13

87045700

SPECIAL NUT

1шт.

14

00100722

WIPER SEAL

Wiper

1шт.

15

00100711

WIPER SEAL

1шт.

16

00100110

O-RING

1шт.

17

87214804

CYLINDER HEAD

1шт.

18

87237342

SPACER

1шт.

19

86787200

CYLINDER,74.73mm Bore, 25.46mm Rod, 45.1mm W

Piston

1шт.

20

00100715

OIL SEAL

1шт.

21

00100019

O-RING

1шт.

22

86787100

PISTON

Retainer

1шт.

23

00606612

NUT

1шт.

24

SB050030

PIN

PIN, Roll

1шт.

25

87251291

CYLINDER,79mm Bore Dia

Barrel, [LH]

1шт.

25

87251292

CYLINDER

Barrel, [RH]

1шт.

26

87251295

TUBE,9.50 mm OD x 611 mm L

1шт.

27

87253424

SPACER, RING

1шт.

28

87213917

SEAL KIT

1шт.

29

87247750

CYLINDER,Double Acting, 44.45mm Rod, 575mm Stroke

Assembly, [LH], Includes Items 10-26

1шт.

29

87247751

CYLINDER,Double Acting, 44.45mm Rod, 575mm Stroke

Assembly, [RH], Includes Items 10-26

1шт.
