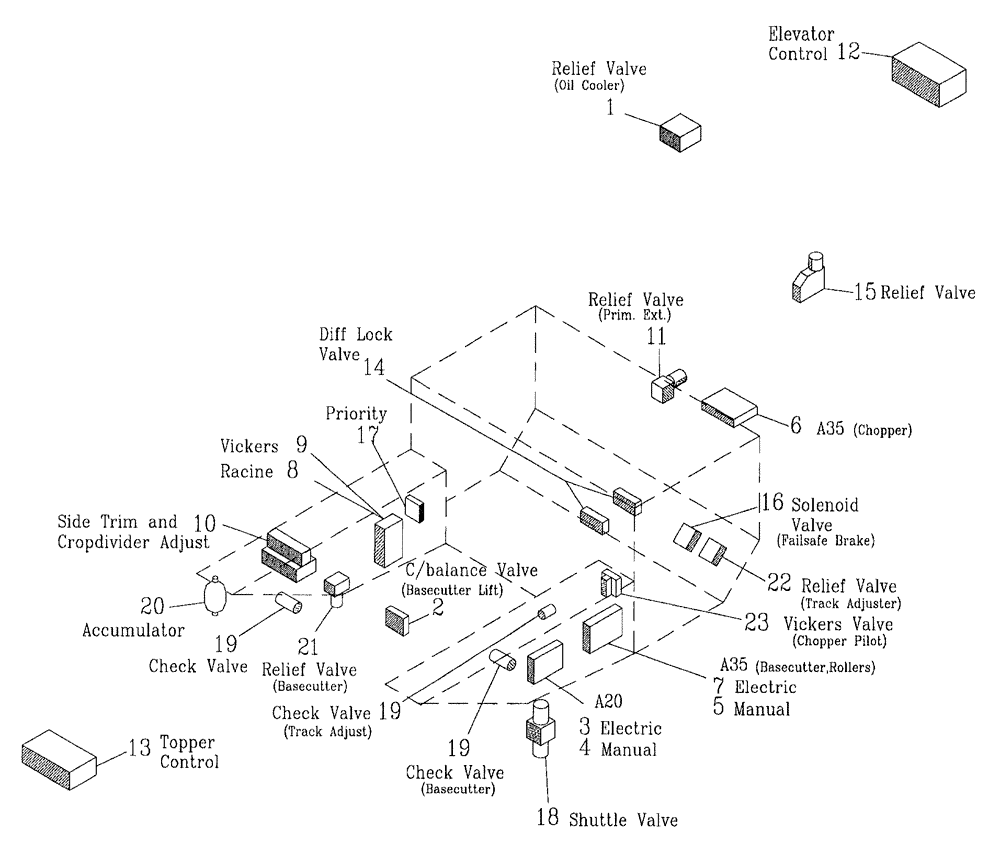

Запчасти Case IH 7700 (B01[06]) - HYDRAULIC VALVES Hydraulic Components & Circuits

1

VALVE, Hydraulic Solenoid Relief, Refer to Figure B05 (01)

1шт.

2

VALVE, Hydraulic Counter-Balance, Refer to Figure B05 (02)

1шт.

3

VALVE, Hydraulic, A20 (Electric), Refer to Figure B05 (03)

1шт.

4

VALVE, Hydraulic, A20 (Manual), Refer to Figure B05 (04)

1шт.

5

VALVE, Hydraulic, A35 (Manual), Refer to Figure B05 (05)

1шт.

6

VALVE, Hydraulic, A35, Refer to Figure B05 (06)

1шт.

7

VALVE, Hydraulic, A35 {Electric), Refer to Figure B05 (07)

1шт.

8

VALVE, Hydraulic, Racine, Refer to Figure B05 (08)

1шт.

9

VALVE, Hydraulic, Vickers, Refer to Figure B05 (09)

1шт.

10

VALVE, Hydraulic, Vickers, Refer to Figure B05 (10)

1шт.

11

VALVE, Hydraulic, Solenoid Relief, Refer to Figure B05 (11)

1шт.

12

VALVE, Hydraulic, Solenoid, Refer to Figure B05 (12)

1шт.

13

VALVE, Hydraulic, Solenoid, Refer to Figure B05 (13)

1шт.

14

VALVE, Hydraulic, Solenoid, Refer to Figure B05 (14)

1шт.

15

VALVE, Hydraulic, Solenoid, Refer to Figure B05 (15)

1шт.

16

VALVE, Hydraulic, Solenoid, Refer to Figure B05 (16)

1шт.

17

VALVE, Hydraulic, Priority, Refer to Figure B05 (17)

1шт.

18

VALVE, Hydraulic, Shuttle, Refer to Figure B05 (18)

1шт.

19

VALVE, Hydraulic, Check, Refer to Figure B05 (19)

1шт.

20

ACCUMULATOR, Refer to Figure B05 (20)

1шт.

21

VALVE, Hydraulic, Relief, Refer to Figure B05 (21)

1шт.

22

VALVE, Hydraulic, Relief, Refer to Figure B05 (22)

1шт.

23

VALVE, Hydraulic, Pilot, Refer to Figure B05 (23)

1шт.
