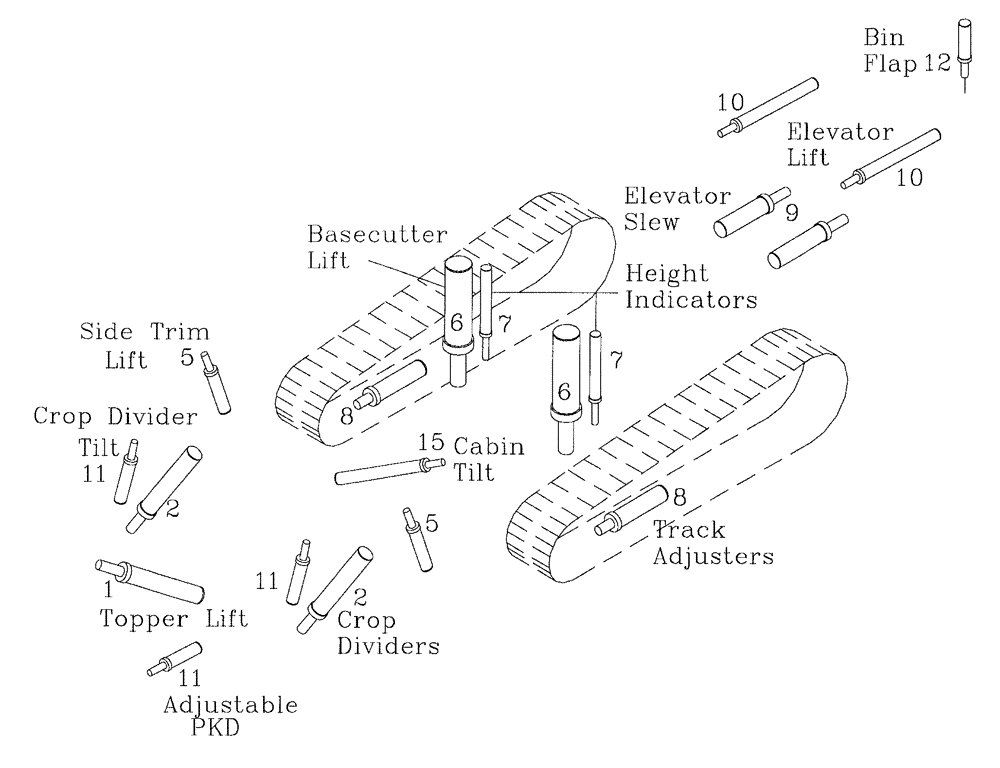

Запчасти Case IH 7700 (B01[02]) - HYDRAULIC CYLINDERS, 7700 Hydraulic Components & Circuits
![Схема запчастей Case IH 7700 - (B01[02]) - HYDRAULIC CYLINDERS, 7700 Hydraulic Components & Circuits](https://partsell.ru/storage/images/caseih/766.png)
8
5
2
11
10
5
11
6
8
12
9
11
10
6
15
7
2
7
№
Артикул
Название
Примечание
Количество
1
CYLINDER, Hydraulic, Refer to Figure B02 (01)
1шт.
2
CYLINDER, Hydraulic, Refer to Figure B02 (02)
1шт.
5
CYLINDER, Hydraulic, Refer to Figure B02 (03)
1шт.
6
CYLINDER, Hydraulic, Refer to Figure B02 (11)
1шт.
7
CYLINDER, Hydraulic, Refer to Figure B02 (12)
1шт.
8
CYLINDER, Hydraulic, Refer to Figure B02 (07)
1шт.
9
CYLINDER, Hydraulic, Refer to Figure B02 (08)
1шт.
10
CYLINDER, Hydraulic, Refer to Figure B02 (09)
1шт.
11
CYLINDER, Hydraulic, Refer to Figure B02 (13)
1шт.
12
CYLINDER, Hydraulic, Refer to Figure B02 (10)
1шт.
15
CYLINDER, Hydraulic, Refer to Figure B02 (15}
1шт.
Выбрано товаров: 11
