(C03[01]) - ENGINE COMPARTMENT

Запчасти Case IH 7700 (C03[01]) - ENGINE COMPARTMENT Engine & Engine Attachments

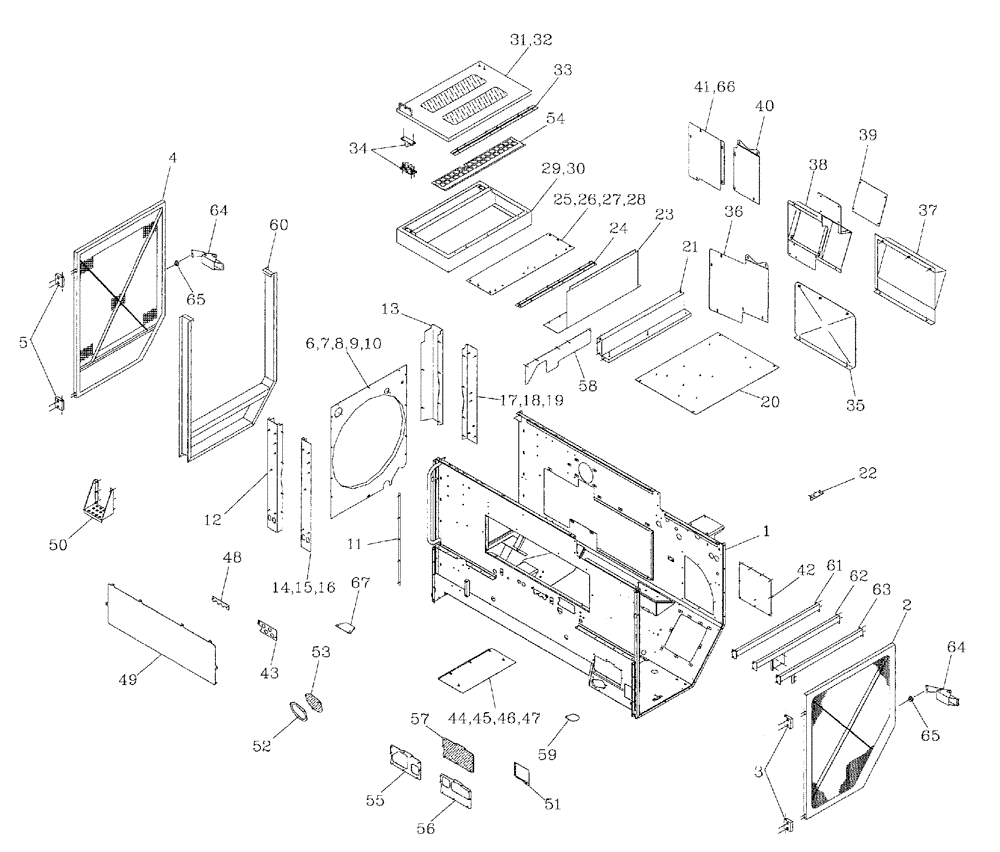

Схема запчастей Case IH 7700 - (C03[01]) - ENGINE COMPARTMENT Engine & Engine Attachments
10
62
65
14
15
17
6
29
25
52
41
36
22
2
53
56
39
50
65
51
67
33
11
23
24
47
3
31
37
40
5
26
20
13
55
43
34
12
7
45
49
16
60
28
58
66
57
48
19
64
9
32
38
21
61
59
27
1
46
54
18
8
44
64
4
63
35
42
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

400055A1

FRAME

ENGINE COMPARTMENT, 108/6CT

1шт.

1

400054A1

ENGINE COMPARTMENT, 125

1шт.

1

398481A1

ENGINE COMPARTMENT, M11

1шт.

1

400056A1

ENGINE COMPARTMENT, 3306

1шт.

2

87246485

DOOR ASSY.

1шт.

2

00180492

SEAL

Pinchweld / Rubber

1шт.

3

87229919

LUG

Hindge

2шт.

4

87246589

DOOR ASSY.

1шт.

4

00180492

SEAL

Pinchweld / Rubber

1шт.

5

86983900

HINGE

2шт.

6

385968A1

SHROUD, 108

1шт.

7

87256504

SHROUD

125

1шт.

8

380337A1

SHROUD, 6CT

1шт.

9

401369A1

SHROUD, M11-330

1шт.

10

87257130

SHROUD, 3306

1шт.

11

87242920

COVER, 125

2шт.

12

398605A1

SUPPORT, Front, 108/6CT

1шт.

13

398603A1

SUPPORT, Rear, 108/6CT

1шт.

14

87256500

BRACKET

SUPPORT, Front, 125

1шт.

15

398490A1

SUPPORT

SUPPORT, Front, M11

1шт.

16

87257132

SUPPORT, Front, 3306

1шт.

17

87256502

BRACKET

SUPPORT, Rear, 125

1шт.

18

426157A1

SUPPORT, Rear, M11

1шт.

19

87257134

SUPPORT, Rear3306

1шт.

20

369268A1

TOOL KIT

Cover

1шт.

21

87242289

BRACKET

Member

1шт.

22

87250256

CLAMP BRACKET

Mount, Filter

1шт.

23

87242090

PLATE

Cover

1шт.

24

87242089

HINGE

1шт.

25

380339A1

PLATE, 108/6CT

1шт.

26

87245624

PLATE

125

1шт.

27

87245623

PLATE

M11

1шт.

28

87245725

PLATE, 3306

1шт.

29

87238026

MOUNTING PARTS

Cover, 125/M11-250

1шт.

30

87233183

COVER ASSY

108/6CT, M11-330, 3306

1шт.

31

86958000

COVER

108/6CT, M11-330, 3306

1шт.

32

87238040

COVER ASSY

125, M11-250

1шт.

33

86958200

HINGE

1шт.

34

00607939

SPRING

Catch

2шт.

35

87231867

COVER ASSY

Rear, 108, 125, 6CT, 3306

1шт.

36

376680A1

COVER

COVER, Rear, 125, 3306

1шт.

37

87231847

COVER ASSY

[Rear, M11

1шт.

38

376677A1

MOUNTING PARTS

COVER, Rear, M11

1шт.

39

376679A1

COVER PLATE

COVER, Rear, M11

1шт.

40

389996A1

COVER

COVER, Rear, 108/6CT

1шт.

41

389993A1

COVER, Rear, 108

1шт.

42

87254374

COVER

INSPECTION COVER

1шт.

43

381444A1

COVER

COVER

1шт.

44

87230221

COVER ASSY

Lower, 108/6CT

1шт.

45

87238192

COVER ASSY

Lower, 125

1шт.

46

398498A1

COVER, Lower, M11

1шт.

47

87242552

COVER, Lower, 3306

1шт.

48

87243296

PLATE

PLATE

1шт.

49

367702A1

PLATE

1шт.

50

398480A1

STEP

STEP

1шт.

51

87246617

COVER

1шт.

52

417806A1

COVER ASSY

COVER

1шт.

53

87247978

SEAL

SEAL

1шт.

54

87254097

COVER

COVER

1шт.

55

87252048

COVER

COVER, Denison

1шт.

56

87253480

COVER, Commerical

1шт.

57

87248877

RUBBER

SEAL

1шт.

58

87254156

PLATE

FAN GUARD, 3306

1шт.

59

87246619

PLATE

COVER

1шт.

60

87246519

EXTENSION

125/M11

1шт.

61

87232171

STIFFENER

108/6CT, 3306

1шт.

62

87249841

SUPPORT

CROSS MEMBER, M11

1шт.

63

380350A1

BRACE

CROSS MEMBER, 125

1шт.

64

00181902

LATCH

2шт.

65

00181881

BUTTON

2шт.

66

395721A1

COVER

[Rear, 6CT

1шт.

67

87243284

SUPPORT, Traction Cable

1шт.
