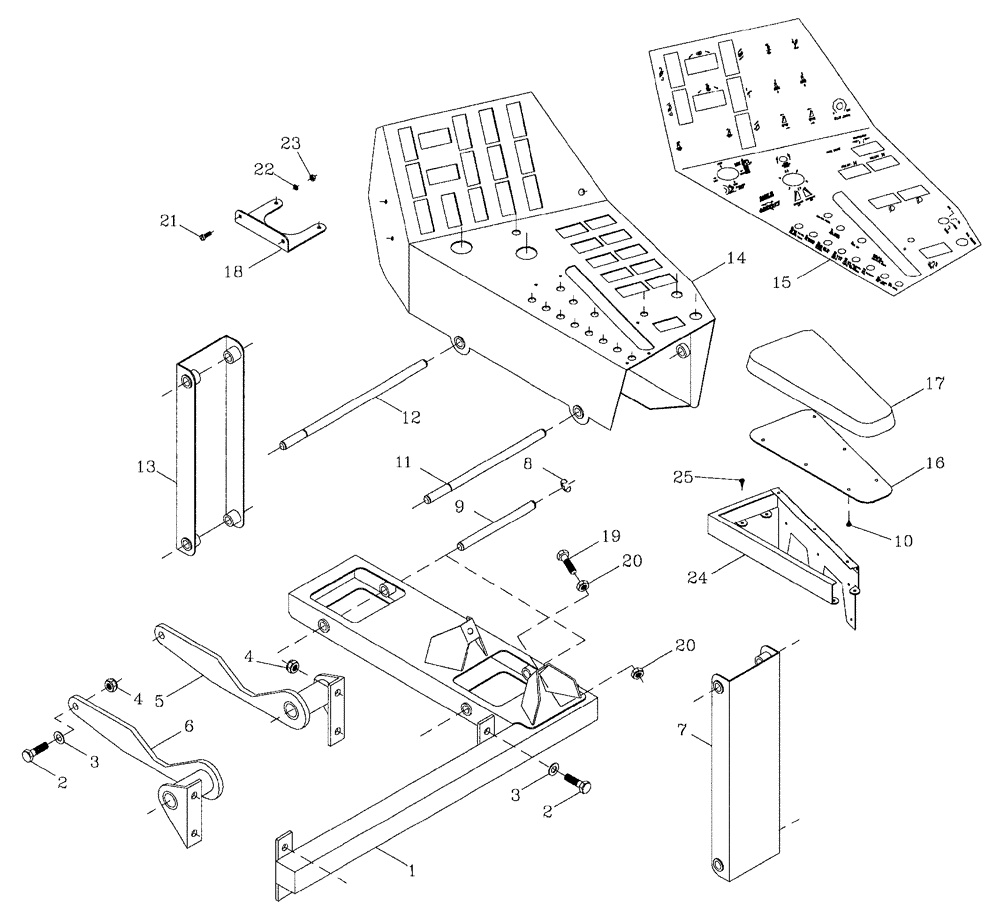

Запчасти Case IH 7700 (A11[05]) - CABIN CONSOLE, ELECTRIC Mainframe & Functioning Components

1

87256560

SUPPORT

SUPPORT

1шт.

2

FA110025

BOLT

6шт.

3

WA100000

WASHER

6шт.

4

NC110000

NUT

6шт.

5

87251959

BRACKET

Mount, [RH]

1шт.

6

87251964

MOUNT, [LH]

1шт.

7

87256552

ARM ASSY.

ARM, [Rear]

1шт.

8

00182148

MOUNTING PARTS

Ring

10шт.

9

87256556

PIN,12.7mm OD x 157.1mm L

PIN

2шт.

10

00605961

SCREW

SCREW

12шт.

11

87256555

PIN,12.7mm OD x 248.1mm L

PIN, [Rear]

1шт.

12

87256554

PIN,12.7mm OD x 301.1mm L

PIN, [Front]

1шт.

13

87256550

ARM ASSY.

ARM, [Front]

1шт.

14

87256541

CONSOLE

CONSOLE, [RH]

1шт.

15

377084A1

DECAL

1шт.

16

87256547

PLATE

PLATE

1шт.

17

87256548

ARMREST

UPHOLSTERY

1шт.

18

372852A1

MOUNTING PARTS

MOUNT

1шт.

19

FA110050

BOLT

2шт.

20

NA110000

NUT

4шт.

21

FT105016

SCREW,M5 x 16mm

SCREW

4шт.

22

WB080000

WASHER

4шт.

23

NA108000

NUT

4шт.

24

87256544

DECK

1шт.

25

00608217

SCREW

4шт.
