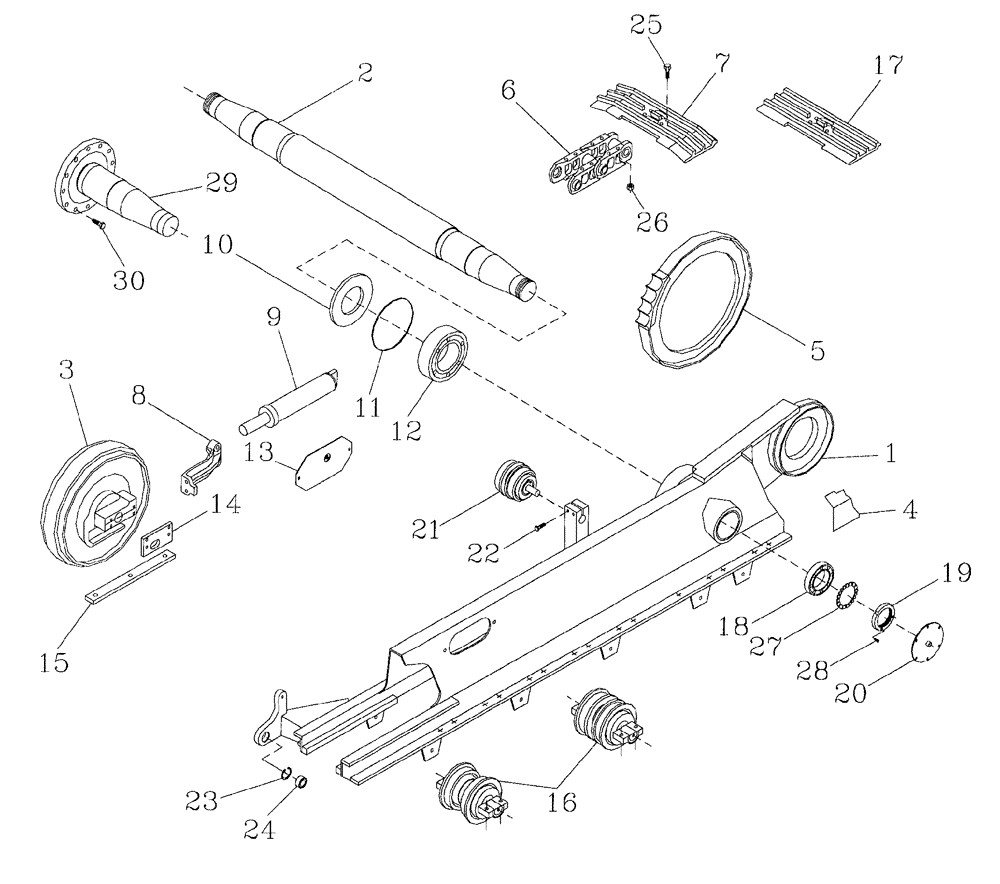

Запчасти Case IH 7700 (A10[01]) - FULL TRACK, 7700 Mainframe & Functioning Components

1

390275A1

CRAWLER TRACK ASSY

FRAME [LH]

1шт.

1

390276A1

CRAWLER TRACK ASSY

FRAME [RH]

1шт.

2

87254664

SHAFT

Cross

1шт.

2

390892A1

AXLE

Cross beam, [22"]

1шт.

3

IDLER, Front Track, Refer to Figure A10 (05}

1шт.

4

87217925

GUARD

Cover [LH]

1шт.

4

87217926

GUARD

Cover [RH]

1шт.

5

87110500

SPROCKET ASSY.

Welded

2шт.

5

87223451

SPROCKET ASSY.

Ring

2шт.

5

87110600

PLATE

Centre

2шт.

5

00136030

BOLT

20шт.

5

00136031

NUT

20шт.

6

00139539

TRACK CHAIN

48 Link

2шт.

6

87252477

TRACK CHAIN

S.A.L.T.

2шт.

7

87249349

TRACK PLATE

Grouser, 16", Bent

94шт.

7

87249350

TRACK PLATE

Grouser, 16", Bent Master

2шт.

7

87219788

TRACK PLATE

Grouser, 18", Bent

94шт.

7

87220831

TRACK PLATE

Grouser, 18", Bent Master

2шт.

7

87243343

ANGLE

GROUSER, 18", Bent, Low Profile

94шт.

7

87243344

ANGLE

GROUSER, 18", Bent Master, Low Profile

2шт.

7

87222832

TRACK PLATE

Grouser, 20", Bent

94шт.

7

87226416

TRACK PLATE

Grouser, 20", Bent Master

2шт.

7

87239104

PLATE

GROUSER, 22", Bent

94шт.

7

87239105

ANGLE

GROUSER, 22", Bent Master

2шт.

8

00131447

SUPPORTING ARM

4шт.

8

00607865

BOLT

2шт.

10

87254662

PLATE

Seal

2шт.

11

00100074

O-RING

2шт.

12

00146531

BEARING

2шт.

13

87256137

COVER ASSY

2шт.

14

87229548

RETAINING PLATE

4шт.

15

87226275

WEAR STRIP

4шт.

15

FD108050

SCREW,Flat Hd, Csk, M8 x 1.25 x 50mm

12шт.

15

NC108000

NUT

12шт.

16

ROLLER, Track, Refer to Figure A10 (03}

1шт.

17

00180908

TRACK PLATE

GROUSER, 18", Straight

94шт.

17

00180909

TRACK PLATE

GROUSER, 18", Straight Master

2шт.

17

00135967

ASSEMBLY

GROUSER, 20", Straight

94шт.

17

00139540

TRACK PLATE

GROUSER, 20", Straight Master

2шт.

17

00180702

PLATE

GROUSER, 22", Straight

94шт.

17

00180703

TRACK PLATE

GROUSER, 22", Straight Master

2шт.

18

00146556

BEARING

2шт.

19

87254514

BEARING LOCK NUT

2шт.

20

87242108

COVER

2шт.

20

00601499

BOLT

6шт.

21

ROLLER, Track Idler, Refer to Figure A10 (04}

1шт.

22

00601535

BOLT

BOLT

4шт.

23

CI042000

CIRCLIP

2шт.

24

00141584

BEARING

2шт.

25

00131438

BOLT

384шт.

26

00131437

NUT

384шт.

27

87245816

LOCKING PLATE

Locking

2шт.

28

FC106025

SCREW,M6 x 25mm

2шт.

29

392000A1

STUB AXLE/STEERING S

STUB, Cranked Axle

2шт.

30

FM120070

BOLT

24шт.

30

WA200000

WASHER

24шт.
