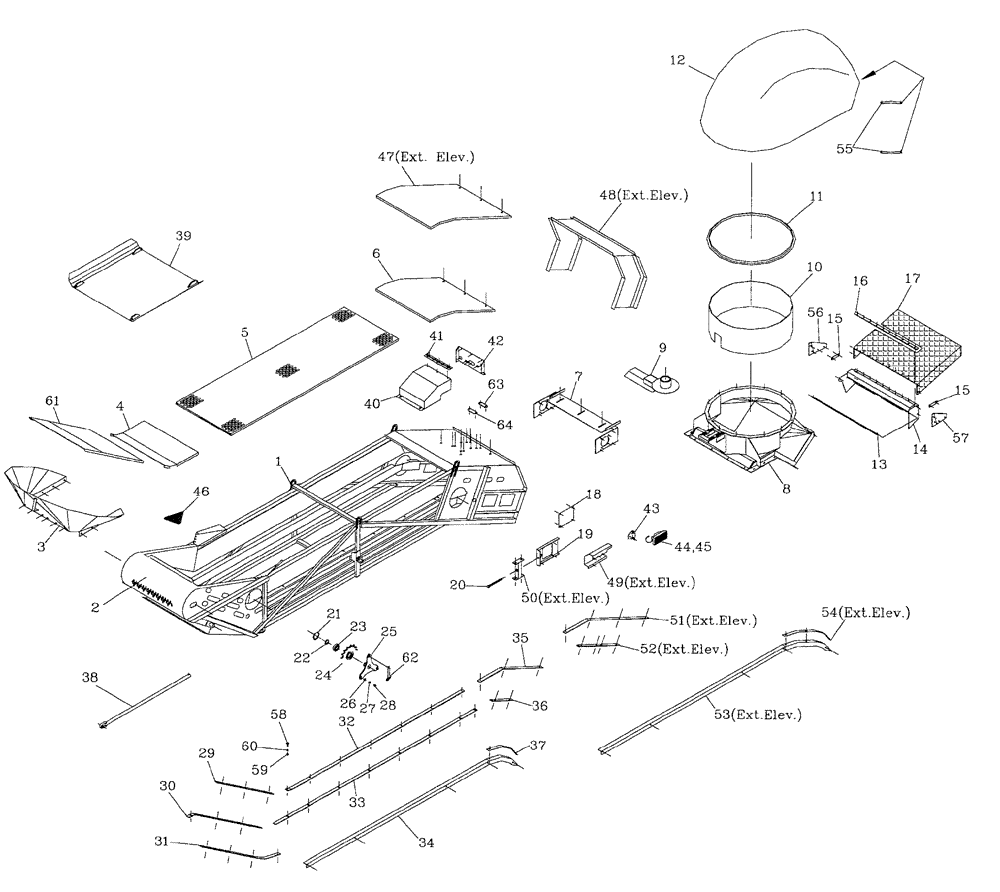

Запчасти Case IH 7700 (A08[03]) - ELEVATOR Mainframe & Functioning Components

1

87242800

ELEVATOR

Std. & Ext.

1шт.

1

87242908

ELEVATOR

Ext. + 250

1шт.

2

87242838

BOOT

1шт.

3

87242856

HOPPER

Bowl

1шт.

3

FA110025

BOLT

10шт.

3

WA100000

WASHER

22шт.

3

WB100000

WASHER

16шт.

3

NA110000

NUT

6шт.

3

FL110025

SCREW,Btn Skt Hd, M10 x 1.5 x 25mm

6шт.

4

87254614

FLOOR

Bent

1шт.

5

87250041

FLOOR

Middle, Std. & Ext.

1шт.

5

87242951

FLOOR

Middle, Ext. + 250

1шт.

6

87237118

FLOOR

Upper, Standard Elevator

1шт.

7

87237067

FLOOR

Adjustable

1шт.

8

87241694

HOOD

Extractor

1шт.

9

87241702

SUPPORTING ARM

1шт.

10

87241695

WEAR STRIP

Ring

1шт.

11

86569800

RING

Ring

1шт.

12

87253801

HOOD

1шт.

13

86937500

ROD,12mm OD x 1032mm L

1шт.

14

87229056

FLAP

Bin

1шт.

15

87229054

STRIP,25mm W x 130mm L x 5.2mm Thk

2шт.

16

87229053

STRIP,25.4mm W x 940mm L

1шт.

17

87229055

RUBBER

1шт.

18

87237319

COVER PLATE

Blanking

2шт.

19

87214036

PLATE

Doubler

2шт.

20

87214043

BOLT,5/8" x 200mm, Grade 8

Screw

2шт.

21

CI080000

CIRCLIP

4шт.

22

CE040000

CIRCLIP

4шт.

23

00144081

BALL BEARING

4шт.

24

87242847

SPROCKET

4шт.

25

87250979

BRACKET

Stub Shaft

4шт.

26

87249196

WASHER

12шт.

27

WA120000

WASHER

12шт.

28

NA120000

NUT

12шт.

29

87243873

WEAR STRIP,40mm W x 803mm L

2шт.

30

87235158

WEAR STRIP

2шт.

31

87237313

WEAR STRIP

2шт.

32

87243874

WEAR STRIP

Standard & Ext. Elevator

2шт.

32

87247427

WEAR STRIP

Ext. + 250 Elevator

2шт.

33

87242851

WEAR STRIP

Standard & Ext. Elevator

2шт.

33

87247428

WEAR STRIP

Ext. + 250 Elevator

2шт.

34

87237315

WEAR STRIP

[LH] Standard Elevator

1шт.

34

87237316

WEAR STRIP

[RH] Standard Elevator

1шт.

35

87227544

WEAR STRIP

Standard Elevator

2шт.

36

87242850

WEAR STRIP

[Standard Elevator

2шт.

37

87235298

WEAR STRIP

[LH] Standard Elevator

1шт.

37

87235297

WEAR STRIP

[RH] Standard Elevator

1шт.

38

87236365

STAY

Safety

2шт.

39

87239320

GUARD

Bin

1шт.

40

87251842

COVER

1шт.

41

87246787

HINGE

1шт.

42

87251843

MOUNT

1шт.

43

87256342

BRACKET

2шт.

44

00198194

LIGHT

3шт.

45

00198219

LIGHT

Sealed Beam

3шт.

46

87241776

RUBBER

2шт.

47

87236359

FLOOR

Upper, Extended & Ext. + 250

1шт.

48

87236375

EXTENSION

Extended & Ext. + 250

1шт.

49

87236935

SPACER

[LH] Extended & Ext. + 250

1шт.

49

87236936

SPACER

[RH] Extended & Ext. + 250

1шт.

50

87250281

BEAM

Stiffener, Extended & Ext. + 250

2шт.

51

87236958

WEAR STRIP

Extended & Ext. + 250

2шт.

52

87242849

WEAR STRIP

Extended & Ext. + 250

2шт.

53

87237061

WEAR STRIP

[LH] Extended Elevator

1шт.

53

87243009

WEAR STRIP

(LH) Ext. + 250 Elevator

1шт.

53

87237062

WEAR STRIP

[RH] Extended Elevator

1шт.

53

87243010

WEAR STRIP

[RH] Ext. + 250 Elevator

1шт.

54

87237065

WEAR STRIP

[LH] Extended & Ext.+250

1шт.

54

87237066

WEAR STRIP

[RH] Extended & Ext.+250

1шт.

55

87250294

MOUNTING PARTS

Strip

6шт.

56

87231907

BACK PLATE

[RH]

1шт.

57

87231906

BACK PLATE

[LH]

1шт.

58

FD110025

SCREW,Flat Hd, Csk, M10 x 1.5 x 25mm

64шт.

59

NC110000

NUT

64шт.

60

WA100000

WASHER

64шт.

61

87254612

FLOOR

Lower

1шт.

62

87255685

LOCKING DEVICE

4шт.

62

WB120000

WASHER

4шт.

62

NA112000

NUT

4шт.

63

87255819

PLATE

Clamp, Short

1шт.

64

87255820

PLATE

Clamp, Long

1шт.
