(A07[03]) - PRIMARY EXTRACTOR HOOD

Запчасти Case IH 7700 (A07[03]) - PRIMARY EXTRACTOR HOOD Mainframe & Functioning Components

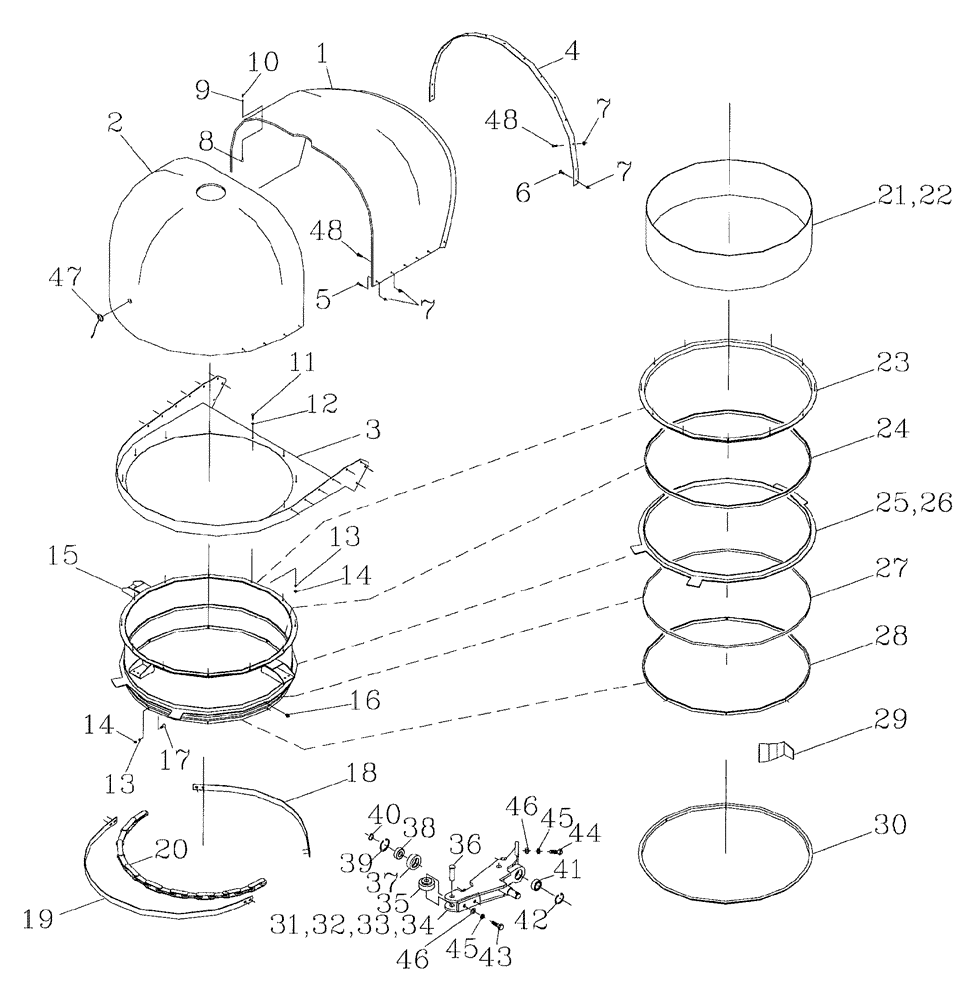

Схема запчастей Case IH 7700 - (A07[03]) - PRIMARY EXTRACTOR HOOD Mainframe & Functioning Components
45
24
36
45
23
8
17
20
21
1
42
43
22
7
13
15
28
10
44
46
9
47
27
33
16
26
40
39
3
19
14
31
30
41
34
6
38
25
37
4
7
35
29
46
48
32
13
5
14
7
2
12
11
48
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87253833

HOOD

Chute [Exit]

1шт.

2

87253834

HOOD

Chute [Front]

1шт.

3

87248392

FRAME ASSY

1шт.

4

87248399

FRAME

Strap

1шт.

5

FG112050

BOLT

2шт.

6

FA112020

BOLT

2шт.

7

NC112000

NUT

39шт.

8

FD108040

SCREW,Flat Hd, Csk, M8 x 1.25 x 40mm

18шт.

9

WA080000

WASHER

18шт.

10

NC108000

NUT

18шт.

11

FA110025

BOLT

12шт.

12

WA100000

WASHER

12шт.

13

WB100000

WASHER

20шт.

14

NA110000

NUT

20шт.

15

87250817

BARREL

[Mechanical Slew]

1шт.

15

87250473

BARREL

[Hydraulic Slew]

1шт.

16

00132752

LUBE NIPPLE

Grease [Mechanical Slew]

2шт.

16

00153751

LUBE NIPPLE

Grease [Hydraulic Slew]

2шт.

17

FA110020

BOLT

8шт.

18

87244536

STRAP

1шт.

19

87244537

STRAP

1шт.

20

70014527

CHAIN

1шт.

21

87246778

WEAR STRIP

Liner [Standard]

1шт.

22

87251590

WEAR STRIP

Liner [Heavy Duty]

1шт.

23

87243108

COUPLING RING

Ring

1шт.

24

87244791

SNAP RING,630mm ID x 650mm OD x 25mm Thk

Doubler

1шт.

25

87243110

MOUNTING PARTS

Ring [Mechanical Slew]

1шт.

26

87243121

MOUNTING PARTS

Ring [Hydraulic Slew]

1шт.

27

87243111

WEAR STRIP

Ring

1шт.

28

87243112

HALF-COLLAR

Doubler

1шт.

29

87251837

DEFLECTOR

4шт.

30

87244992

COUPLING RING

Ring

1шт.

31

87254510

LINK

[RH] [Mechanical Slew]

1шт.

32

87254511

CONNECTING LINK

[LH] [Mechanical Slew]

1шт.

33

87254508

CONNECTING LINK

[LH] [Hydraulic Slew]

1шт.

34

87254509

CONNECTING LINK

[RH] [Hydraulic Slew]

1шт.

35

00181719

ROLLER

4шт.

36

82085300

PIN,19.18mm OD x 60.32mm L

4шт.

37

87255168

ROLLER,60mm OD x 22mm L

4шт.

38

00140217

BALL BEARING

4шт.

39

CI047000

CIRCLIP

1шт.

40

CE020000

CIRCLIP

4шт.

41

00141584

BEARING

2шт.

42

CI042000

CIRCLIP

2шт.

43

FA112020

BOLT

2шт.

44

FA112025

BOLT

2шт.

45

WB120000

WASHER

4шт.

46

WA120000

WASHER

2шт.

47

MONITOR, Cane Loss Refer Figure C09(01}

1шт.

48

FG112030

BOLT

22шт.
