/ / / / / / / / (A07[02]) - VERTICAL ARM PRIMARY EXTRACTOR

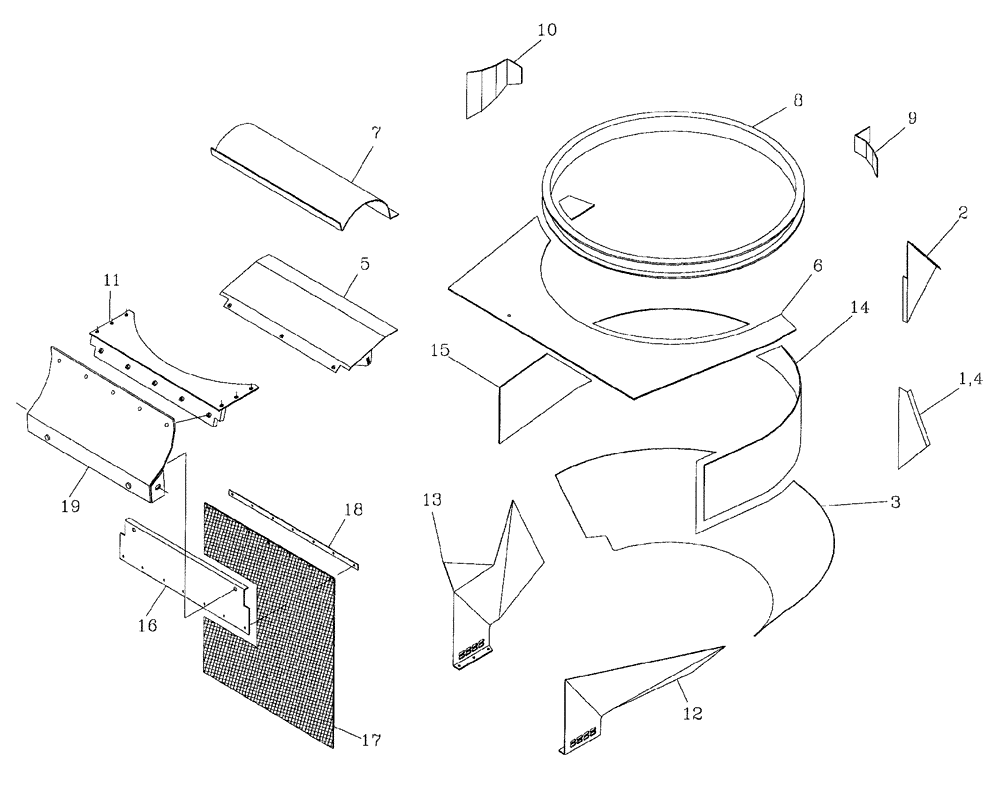

Запчасти Case IH 7700 (A07[02]) - VERTICAL ARM PRIMARY EXTRACTOR Mainframe & Functioning Components
![Схема запчастей Case IH 7700 - (A07[02]) - VERTICAL ARM PRIMARY EXTRACTOR Mainframe & Functioning Components](https://partsell.ru/storage/images/caseih/1321607.png)
15
7
16
4
5
6
17
2
10
18
14
12
13
11
19
9
3
1
8
1
87246193
GUSSET
[RH]
1шт.
2
87246196
GUSSET
[Rear]
3шт.
3
87246195
CONE
1шт.
4
87246194
GUSSET
[LH]
1шт.
5
87251098
DEFLECTOR
1шт.
6
87243399
PLATE ASSY.
Top
1шт.
7
87255311
COVER ASSY
[12"]
1шт.
7
363725A1
PLATE
Cover [15"]
1шт.
8
87255169
RING
1шт.
9
87241050
PLATE
Deflector
1шт.
10
87214032
PLATE
Deflector
1шт.
11
87254897
PLATE ASSY.
Sill [12"]
1шт.
11
87254898
PLATE ASSY.
Sill [15"]
1шт.
12
87243412
PLATE
[LH]
1шт.
13
87244061
PLATE
[RH]
1шт.
14
87250585
PLATE ASSY.
Body [LH]
1шт.
15
87250586
PLATE ASSY.
Body [RH]
1шт.
16
87255691
BRACKET
Mount
1шт.
17
86972600
RUBBER
1шт.
18
87254298
BAR
Strip
1шт.
19
87254899
PLATE ASSY.
Deflector [12"]
1шт.
19
87254900
PLATE ASSY.
Deflector [15"]
1шт.
20
87246191
CHAMBER
Assembly, Cleaning
1шт.
