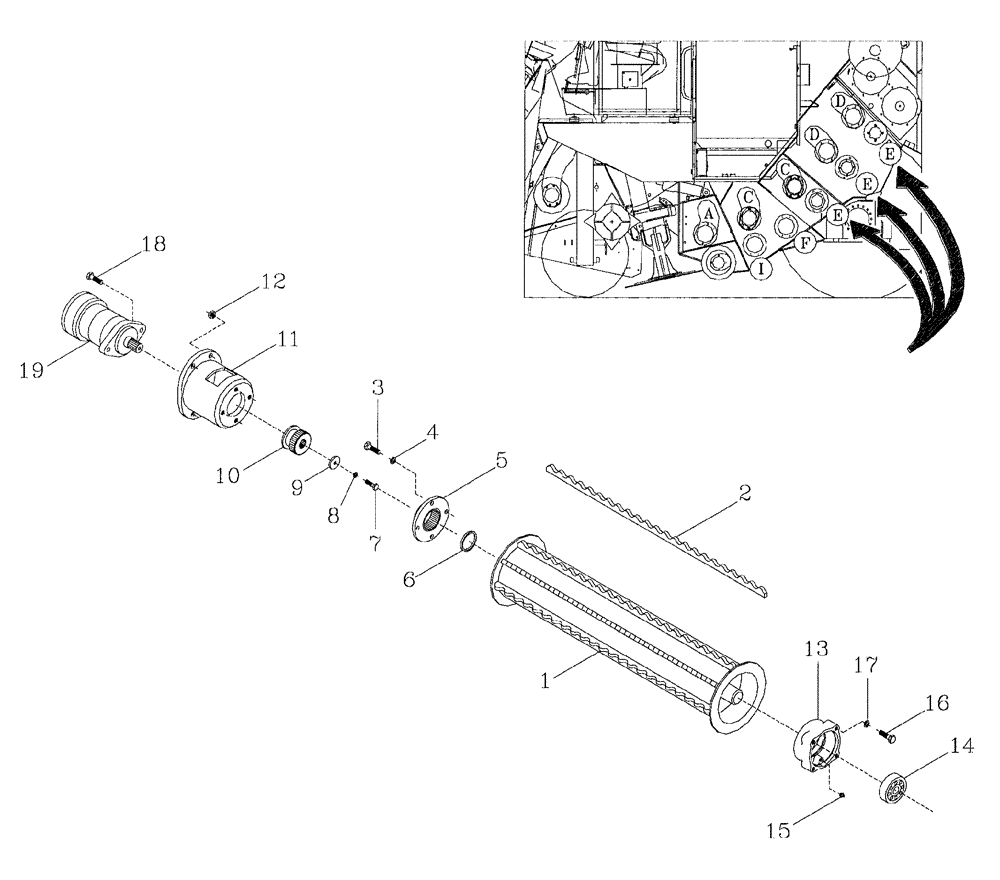

Запчасти Case IH 7700 (A05[08]) - BOTTOM ROLLERS, UPPER - E Mainframe & Functioning Components

1

86702001

ROLLER,218.3mm OD x 880mm L

3шт.

2

87116500

SLAT

24шт.

3

FM112025

BOLT

12шт.

4

WB120000

WASHER

12шт.

5

86700800

ADAPTER

3шт.

6

86701900

SPACER,52mm ID x 63mm OD x 5mm L

(If Required)

1шт.

7

00601499

BOLT

3шт.

8

00605827

WASHER

3шт.

9

86778400

WASHER,10.5mm ID x 38.5mm OD x 5.15mm Thk

Washer

3шт.

10

86701200

GEAR

Pinion

3шт.

11

87217094

HOUSING

OVERALL LENGTH 151MM

3шт.

12

NC112000

NUT

12шт.

13

87213555

HOUSING, BEARING,87 mm ID x 62 mm

3шт.

14

00140493

BEARING

3шт.

15

00153751

LUBE NIPPLE

Grease

3шт.

16

00601501

BOLT

12шт.

17

00605829

WASHER

12шт.

18

00604538

SCREW

6шт.

19

MOTOR, Hydraulic

1шт.

Refer Page B03 (02

1шт.
