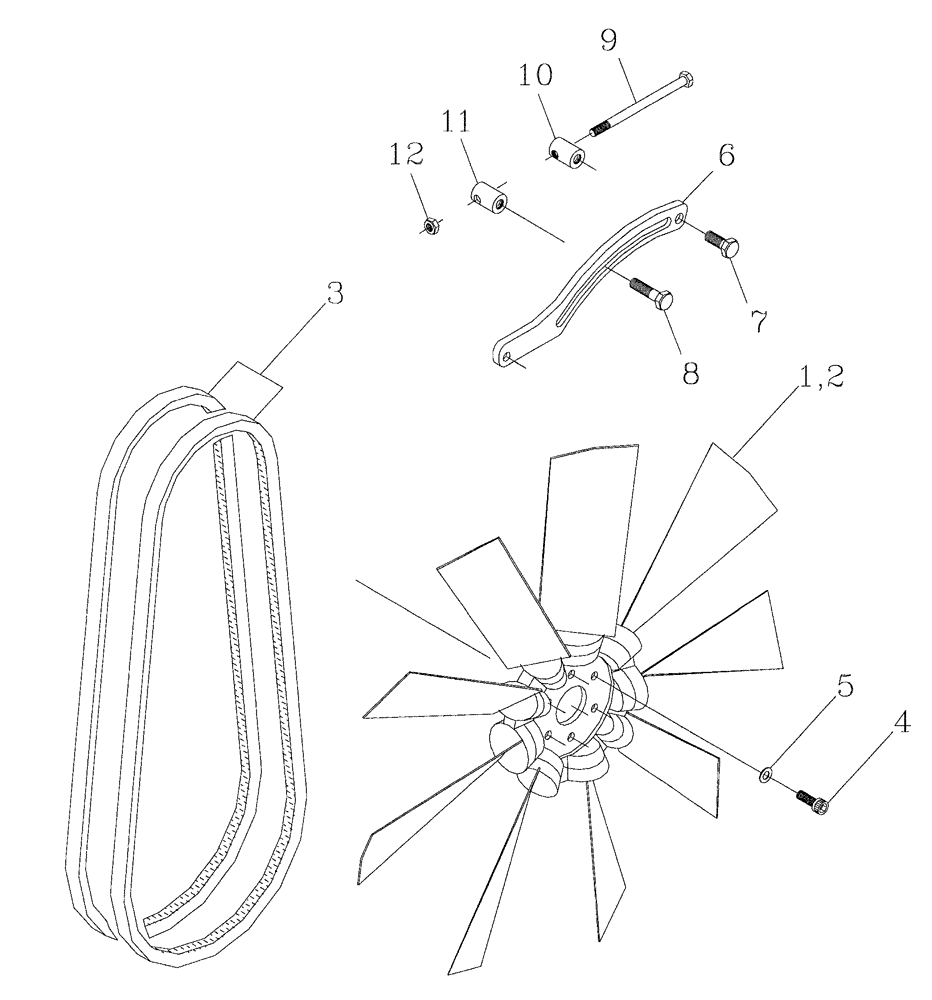

Запчасти Case IH 7700 (C02[01]) - COOLING FAN AND DRIVE BELTS, 108,125 Engine & Engine Attachments

1

87194000

FAN

Assembly, 108

1шт.

1

87232782

FAN

Assembly, 125

1шт.

2

00136989

FAN

Blade, 108

12шт.

2

00180477

PACKAGE

Blade, 125

12шт.

3

00138872

BELT

Set, 108

1шт.

3

00180967

BELT

Set, 125

1шт.

4

FC110025

SCREW,M10 x 1.5 x 25mm

6шт.

5

WA100000

WASHER

6шт.

6

87252471

ANCHOR

Bracket, 125

1шт.

7

FM112025

BOLT

125

1шт.

8

FM112040

BOLT

125

1шт.

9

87242806

SCREW,M10 x 1.5 x 150mm

125

1шт.

10

87242804

BOSS

Adjuster, 125

1шт.

11

87242805

BOSS

Adjuster, 125

1шт.

12

NA100000

NUT, 125

1шт.
