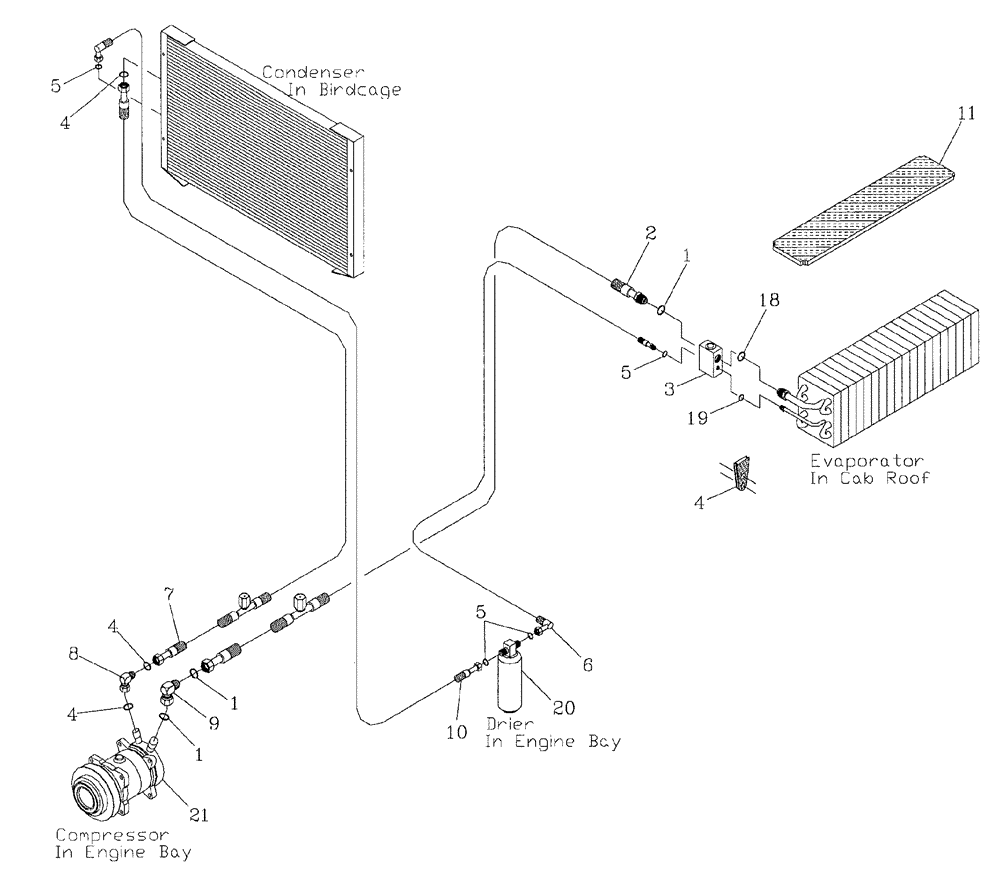

Запчасти Case IH 7700 (B13[02]) - HYDRAULIC CIRCUIT, AIR CONDITIONER Hydraulic Components & Circuits

1

00181115

O-RING

3шт.

2

395839A1

HOSE

1шт.

3

1990756C2

VALVE

Expansion

1шт.

4

193111A2

GROMMET

1шт.

5

00181089

O-RING

4шт.

6

395841A1

HOSE

1шт.

7

87243308

HOSE

1шт.

8

00409297

ELBOW

1шт.

9

00409298

ELBOW

1шт.

10

87242711

HOSE

1шт.

11

222385A1

SEAL

1шт.

18

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

19

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

20

00180726

RECEIVER-DRYER

1шт.

21

AIR CONDITIONER COMPRESSOR, Refer Figure A13 (08}

1шт.
