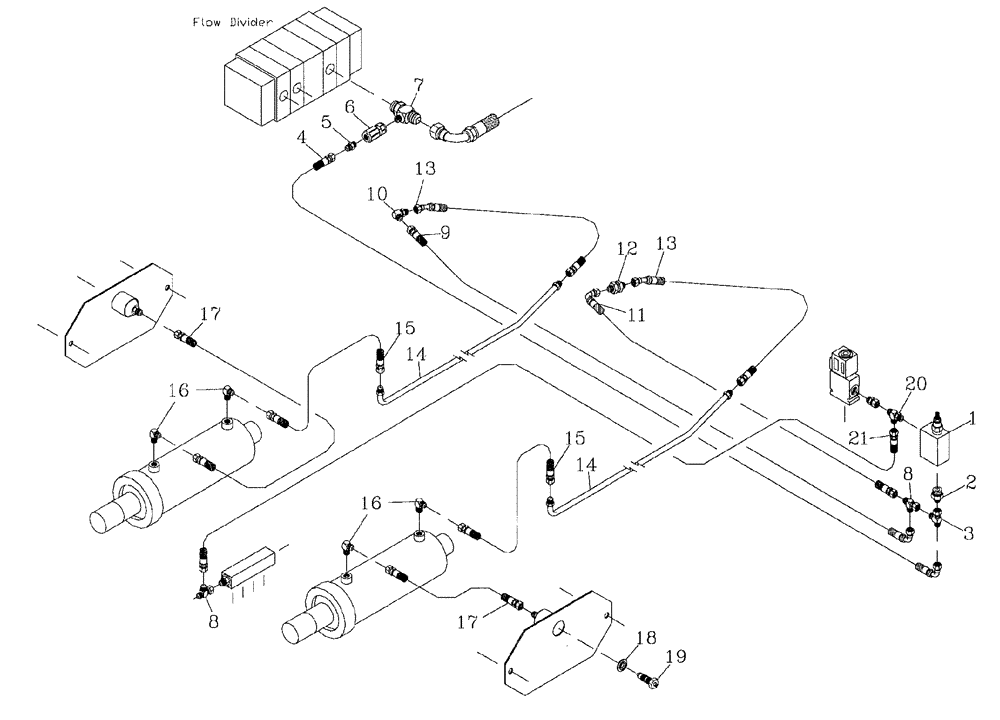

Запчасти Case IH 7700 (B12[05]) - HYDRAULIC CIRCUIT, TRACK ADJUSTER 7700 Hydraulic Components & Circuits

1

HYDRAULIC RELIEF VALVE, Refer Figure B05

1шт.

22

1шт.

2

00400073

HYD CONNECTOR

Nipple

1шт.

3

00408682

TEE

1шт.

4

86313244

HOSE,9.53mm ID x 1300mm L, SAE 100R17

HOSE

1шт.

5

00404766

HYD CONNECTOR

NIPPLE

1шт.

6

HYDRAULIC CHECK VALVE, Refer Figure B05 (19) -3/8"

1шт.

7

00408639

TEE

1шт.

8

00404677

TEE

2шт.

9

84004000

HOSE,6.35mm ID x 1670mm L, SAE 100R17

HOSE

1шт.

10

00404781

HYD CONNECTOR

Elbow

1шт.

11

87235277

HOSE,6.35mm ID x 470mm L, SAE 100R17

1шт.

12

00400070

HYD CONNECTOR

Nipple

1шт.

13

87256252

HOSE

2шт.

14

87170700

TUBE,9.50 mm DIA

2шт.

15

86315450

HOSE

HOSE

2шт.

16

00400238

HYD CONNECTOR

Elbow

4шт.

17

87242731

HOSE

2шт.

18

00131478

WASHER

2шт.

19

00131479

VALVE

2шт.

20

00408455

TEE

TEE

1шт.

21

86853000

HOSE

1шт.
