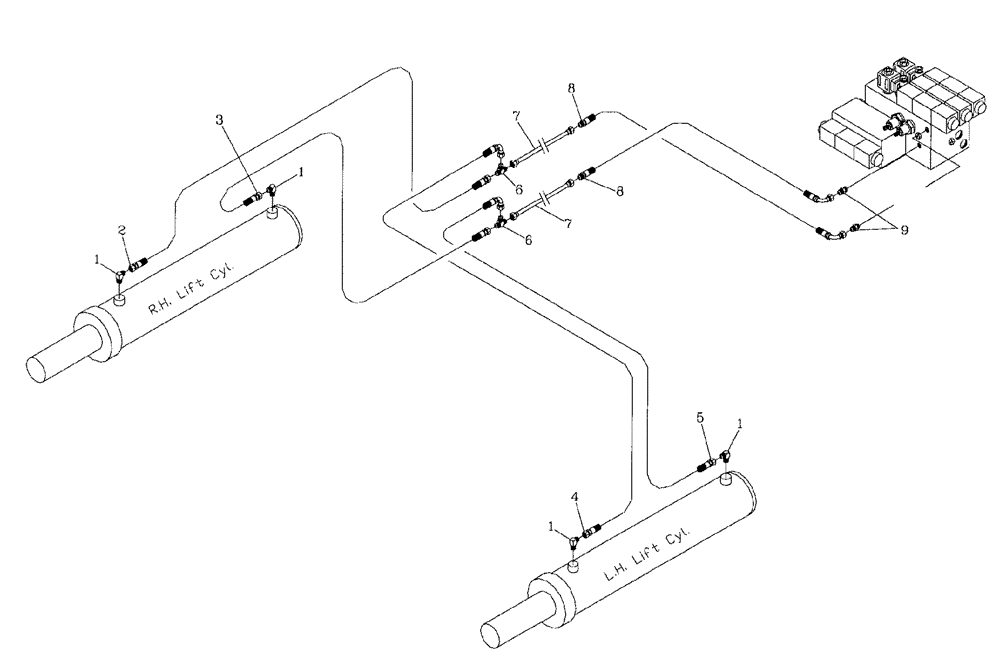

Запчасти Case IH 7700 (B10[03]) - HYDRAULIC CIRCUIT, ELEVATOR LIFT Hydraulic Components & Circuits

1

00400189

HYD CONNECTOR

Elbow

4шт.

2

87222449

HOSE ASSY.

Standard/Extended Elevator

1шт.

2

82721300

HOSE,6.35mm ID x 1920mm L, SAE 100R17

HOSE, Extended Elevator+250

1шт.

3

87237582

HOSE ASSY.

Standard/Extended Elevator

1шт.

3

87235847

HOSE,6.35mm ID x 920mm L, SAE 100R17

HOSE, Extended Elevator+250

1шт.

4

82725000

HOSE ASSY.,6.35mm ID x 2720mm L, SAE 100R17

Standard/Extended Elevator

1шт.

4

86837700

HOSE,6.35mm ID x 3020mm L, SAE 100R17

HOSE, Extended Elevator+250

1шт.

5

87219146

HOSE,6.35mm ID x 2150mm L, SAE 100R17

HOSE, Standard/Extended Elevator

1шт.

5

82731200

HOSE,6.35mm ID x 2550mm L, SAE 100R17

HOSE, Extended Elevator+250

1шт.

6

00400207

TEE

2шт.

7

87247176

TUBE,9.50 mm ID x 6.30 mm OD x 850 mm L

TUBE

2шт.

8

419700A1

HOSE,6.35mm ID x 1650mm L, SAE 100R17

HOSE

2шт.

9

00400223

HYD CONNECTOR

Nipple

2шт.
