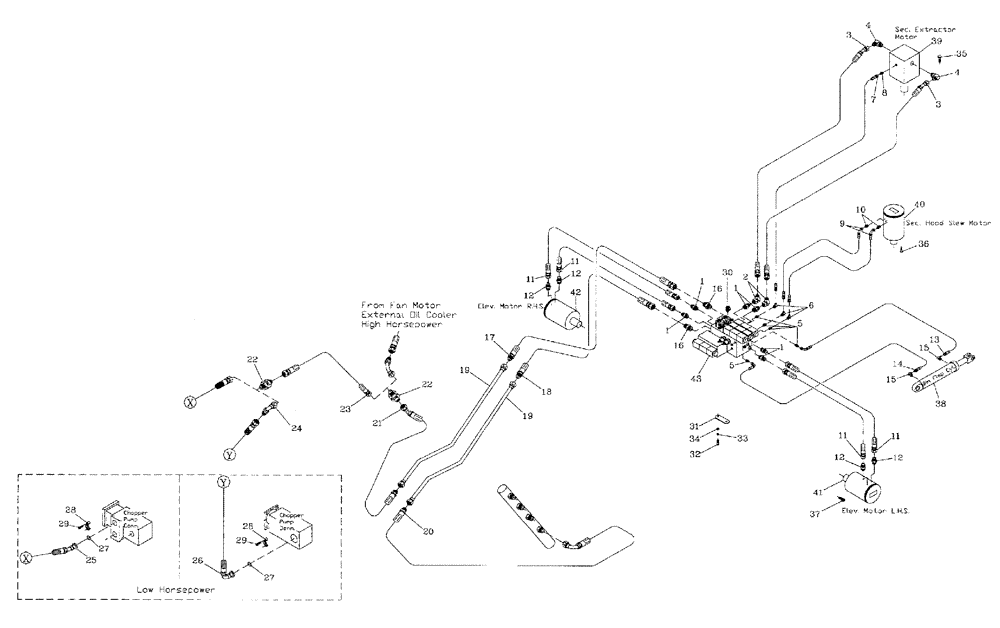

Запчасти Case IH 7700 (B10[02]) - HYDRAULIC CIRCUIT, ELEVATOR Hydraulic Components & Circuits
![Схема запчастей Case IH 7700 - (B10[02]) - HYDRAULIC CIRCUIT, ELEVATOR Hydraulic Components & Circuits](https://partsell.ru/storage/images/caseih/970136.png)
№
Артикул
Название
Примечание
Количество
1
00400231
HYD CONNECTOR
Nipple
6шт.
2
00404300
HYD CONNECTOR
Elbow
2шт.
3
87121700
HOSE
Standard Elevator
2шт.
3
87236502
HOSE ASSY.
Extended/+250
2шт.
4
00400246
HYD CONNECTOR
Elbow
2шт.
5
00400223
HYD CONNECTOR
Nipple
5шт.
6
00405172
TEE
Elbow
3шт.
7
87248824
HOSE,6.35mm ID x 1350mm L, SAE 100R17
Standard elevator
1шт.
7
82713500
HOSE ASSY.
HOSE, Extended/+250
1шт.
8
00400162
HYD CONNECTOR
Nipple
1шт.
9
87236500
HOSE
Standard Elevator
2шт.
9
86612500
HOSE
HOSE, Extended/+250
2шт.
10
00400074
HYD CONNECTOR
Nipple
2шт.
11
81965200
HOSE
Standard Elevator
2шт.
11
82714600
HOSE ASSY.
HOSE, Extended/+250
2шт.
12
00400229
HYD CONNECTOR
Nipple
4шт.
13
87217477
HOSE ASSY.
HOSE, Standard Elevator
1шт.
13
86300927
HOSE ASSY.
HOSE, Extended/+250
1шт.
14
86300927
HOSE ASSY.
HOSE, Standard Elevator
1шт.
14
87234593
HOSE,6.35mm ID x 1950mm L, SAE 100R17
HOSE, Extended/+250
1шт.
15
00402879
HYD CONNECTOR
Elbow
2шт.
16
00400234
HYD CONNECTOR
Nipple
2шт.
17
87255996
HOSE ASSY.
HOSE, Standard/Extended Elevator
1шт.
17
87255994
HOSE,25.4mm ID x 1800mm L, SAE 100R17
HOSE, Extended Elevator +250
1шт.
18
419701A1
HOSE
HOSE, Standard/Extended Elevator
1шт.
18
419702A1
HOSE,25.4mm ID x 1900mm L, SAE 100R17
HOSE, Extended Elevator +250
1шт.
19
87247175
TUBE,25.40 mm OD
2шт.
20
87247906
HOSE ASSY.
1шт.
21
87252188
HOSE ASSY.
1шт.
22
00400067
HYD CONNECTOR
B/H Nipple
2шт.
23
82710200
HOSE
1шт.
24
00407240
HYD CONNECTOR
Bend
1шт.
25
87254838
HOSE
1шт.
26
82710700
HOSE
1шт.
27
00100024
O-RING
1шт.
28
00400151
SPECIAL CLAMP
Pair
2шт.
29
00604462
SCREW
4шт.
30
00405498
SCREW ON COUPLING
Test Point
1шт.
31
87255819
PLATE
Clamp
2шт.
32
FA110030
BOLT
4шт.
33
WB100000
WASHER
4шт.
34
WA100000
WASHER
4шт.
35
00601511
BOLT
4шт.
36
00601495
BOLT
4шт.
37
00601506
BOLT
4шт.
38
HYDRAULIC CYLINDER, Refer Figure B02
1шт.
10
1шт.
39
HYDRAULIC MOTOR, Refer Figure B03
1шт.
14
1шт.
40
HYDRAULIC MOTOR, Refer Figure B03
1шт.
08
1шт.
41
HYDRAULIC MOTOR, Refer Figure B03
1шт.
04
1шт.
42
HYDRAULIC MOTOR, Refer Figure B03
1шт.
03
1шт.
43
HYDRAULIC SOLENOID VALVE, Refer Figure B05
1шт.
12
1шт.
Выбрано товаров: 57
