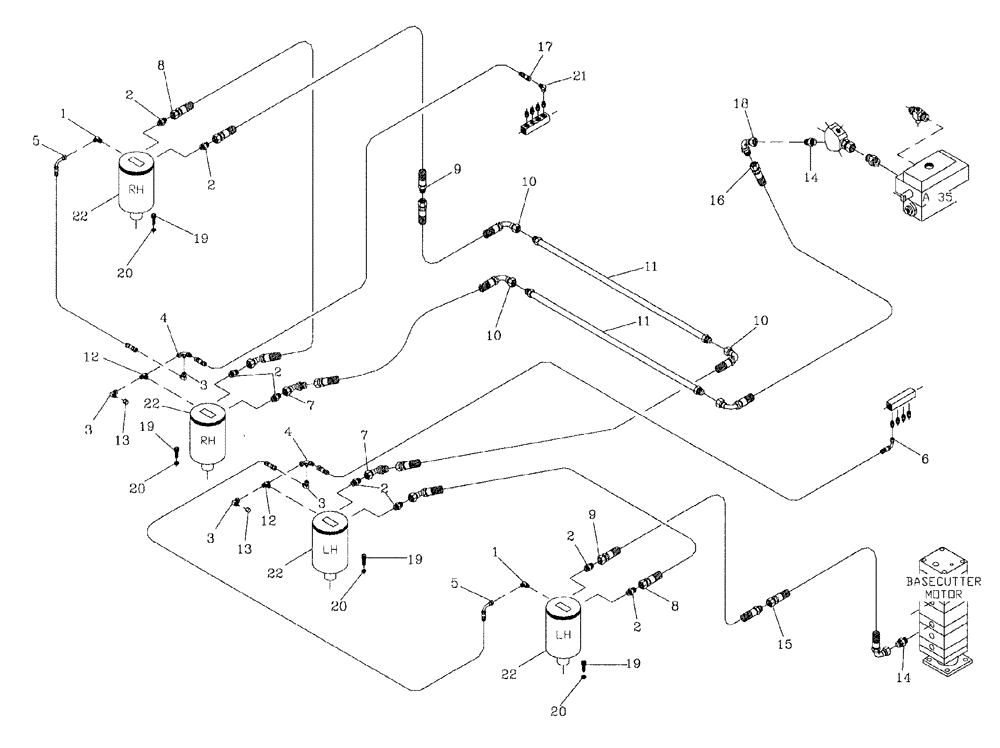

Запчасти Case IH 7700 (B09[09]) - HYDRAULIC CIRCUIT, CROPDIVIDER SPIRALS Hydraulic Components & Circuits

1

00405242

HYD CONNECTOR

Elbow

2шт.

2

00400229

HYD CONNECTOR

Nipple

8шт.

3

00402879

HYD CONNECTOR

Elbow

4шт.

4

87219738

ADAPTER

2шт.

5

87253835

HOSE ASSY.

HOSE, Standard Spiral

2шт.

5

87038600

HOSE,6.35mm ID x 2420mm L, SAE 100R17

HOSE, Extended Spiral

2шт.

6

86315420

HOSE ASSY.

1шт.

7

00408418

HYD CONNECTOR

Bend

2шт.

8

86832900

HOSE ASSY.

HOSE, Standard Spiral

2шт.

8

87255990

HOSE,19.05mm ID x 2000mm L, SAE 100R17

HOSE, Extended Spiral

2шт.

9

87244019

HOSE, Standard Spiral

2шт.

9

81673700

HOSE,19.05mm ID x 1300mm L, SAE 100R17

HOSE, Extended Spiral

2шт.

10

87247511

HOSE ASSY.

HOSE

3шт.

11

385633A1

TUBE,21.40mm ID x 25.40mm OD x 1462mm L

2шт.

12

00403925

TEE

2шт.

13

00400143

HYD CONNECTOR

Cap Nut

2шт.

14

00400231

HYD CONNECTOR

Nipple

2шт.

15

86330600

HOSE ASSY.

1шт.

16

82720000

HOSE

1шт.

17

82713700

HOSE,6.35mm ID x 2800mm L, SAE 100R17

HOSE

1шт.

18

00407045

HYD CONNECTOR

Bend

1шт.

19

00604536

SCREW

8шт.

20

00605829

WASHER

8шт.

21

00405173

HYD CONNECTOR

Elbow

1шт.

22

HYDRAULIC MOTOR, Refer Figure B03

1шт.

03

1шт.
