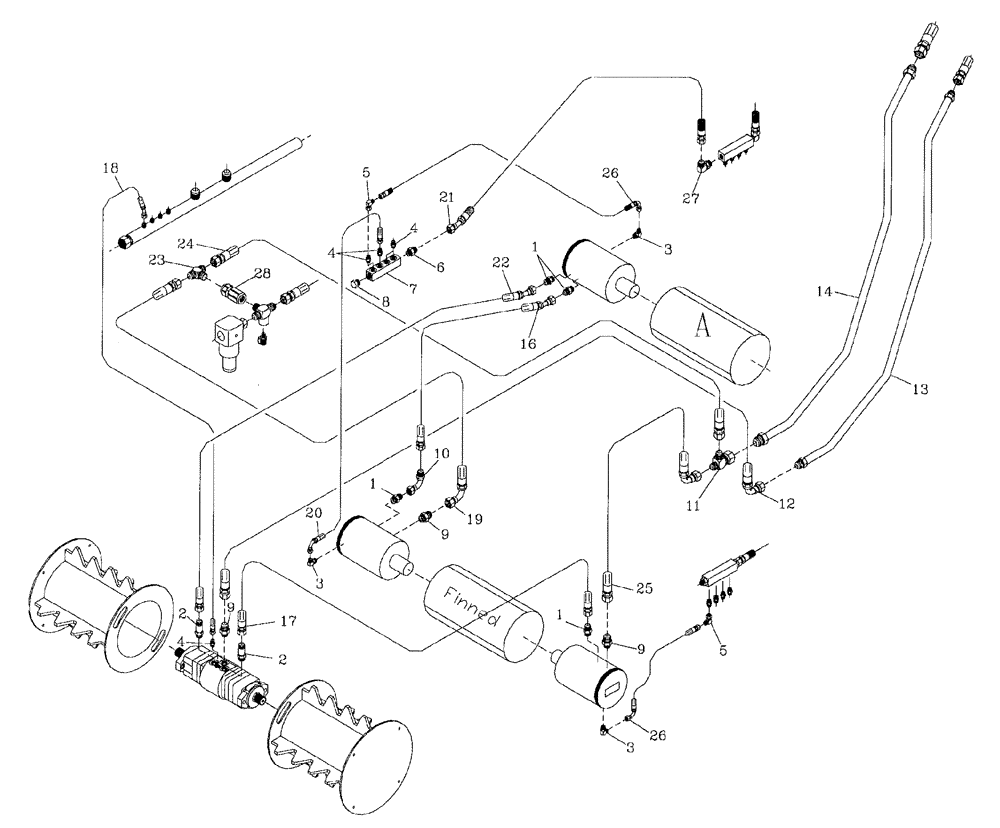

Запчасти Case IH 7700 (B08[02]) - HYDRAULIC CIRCUIT, ADJUSTABLE, PKD,FINNED,1ST FLOATING ROLLER Hydraulic Components & Circuits

1

00400228

HYD CONNECTOR

Nipple

4шт.

2

00408012

HYD CONNECTOR

NIPPLE

2шт.

3

00405242

HYD CONNECTOR

Elbow

3шт.

4

00400223

HYD CONNECTOR

Nipple

4шт.

5

00402879

HYD CONNECTOR

Elbow

2шт.

6

00400226

HYD CONNECTOR

Nipple

1шт.

7

00409953

RETURN PIPE

Manifold

1шт.

8

00400106

HYD CONNECTOR

Plug

1шт.

9

00400229

HYD CONNECTOR

Nipple

3шт.

10

00407516

HYD CONNECTOR

Bend

1шт.

11

00409239

ADAPTER

Tee

1шт.

12

82709000

HOSE

1шт.

13

87256153

TUBE,25.40 mm OD

1шт.

14

87256155

TUBE,1792 mm L

1шт.

15

00404677

TEE

1шт.

16

87217618

HOSE,12.7mm ID x 2330mm L, SAE 100R17

HOSE

1шт.

17

86308517

PIPE FITTING

HOSE

1шт.

18

87256266

HOSE,6.35mm ID x 3020mm L, SAE 100R17

HOSE

1шт.

19

82721000

HOSE,19.05mm ID x 560mm L, SAE 100R16

HOSE

1шт.

20

82702100

HOSE ASSY.

1шт.

21

87214353

HOSE

HOSE

1шт.

22

393593A1

SLEEVE

HOSE

1шт.

23

00407003

TEE

1шт.

24

86313007

HOSE ASSY.

HOSE

1шт.

25

87255572

HOSE,19.05mm ID x 1950mm L, SAE 100R16

HOSE

1шт.

26

86310227

HOSE ASSY.

2шт.

27

00407832

HYD CONNECTOR

Elbow

1шт.

28

HYDRAULIC CHECK VALVE 3/4", Refer Figure B05

1шт.

19

1шт.
