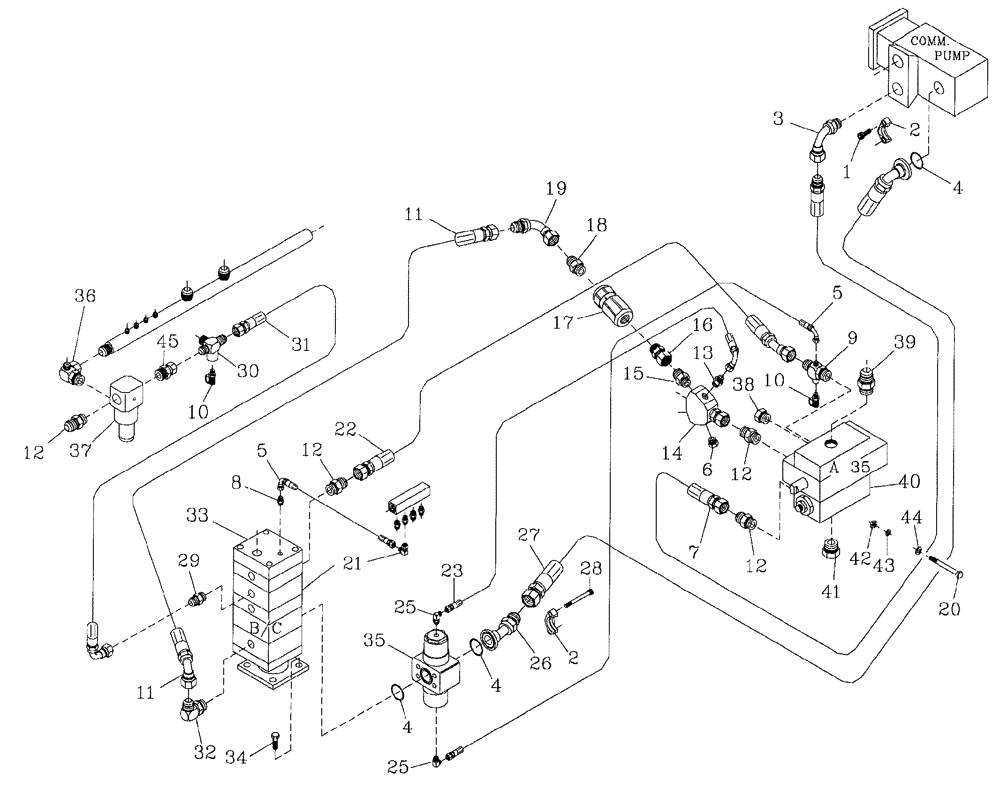

Запчасти Case IH 7700 (B07[01]) - HYDRAULIC CIRCUIT, BASECUTTER, COMMERCIAL PUMP, HIGH HORSEPOWER Hydraulic Components & Circuits

1

00604498

SCREW

4шт.

2

00400266

SPECIAL CLAMP

2шт.

3

00409889

HYD CONNECTOR

Bend

1шт.

4

00100026

O-RING

3шт.

5

86310227

HOSE ASSY.

2шт.

6

00400256

PLUG

PLUG

1шт.

7

87252500

HOSE

1шт.

8

00400223

HYD CONNECTOR

Nipple

1шт.

9

00408641

TEE

1шт.

10

00405498

SCREW ON COUPLING

Test Point

2шт.

11

87247504

HOSE

1шт.

12

00400234

HYD CONNECTOR

Nipple

4шт.

13

00400073

HYD CONNECTOR

Nipple

1шт.

14

87247876

ADAPTER

Y Block

1шт.

15

00400232

HYD CONNECTOR

Nipple

1шт.

16

00409230

HYD CONNECTOR

Adaptor

1шт.

17

HYDRAULIC CHECK VALVE 1" , Refer Figure B05

1шт.

19

1шт.

18

00400175

HYD CONNECTOR

Nipple

1шт.

19

00403944

HYD CONNECTOR

Bend

1шт.

20

00601558

BOLT

3шт.

21

00402879

HYD CONNECTOR

Elbow

1шт.

22

87256022

HOSE

1шт.

23

87235740

HOSE

1шт.

25

00405242

HYD CONNECTOR

Elbow

2шт.

26

00409950

ADAPTER

1шт.

27

87252502

HOSE

1шт.

28

00608212

BOLT

Screw

4шт.

29

00400231

HYD CONNECTOR

Nipple

1шт.

30

00410248

TEE

1шт.

31

87218997

HOSE ASSY.

HOSE

1шт.

32

00400097

HYD CONNECTOR

Elbow

1шт.

33

HYDRAULIC MOTOR, Refer Figure B03

1шт.

15

1шт.

34

FM112035

BOLT

4шт.

35

HYDRAULIC SHUTTLE VALVE, Refer Figure B05

1шт.

18

1шт.

36

86310816

HYD CONNECTOR

ELBOW

1шт.

37

HYDRAULIC RELIEF VALVE, Refer Figure B05

1шт.

21

1шт.

38

00400258

HYD CONNECTOR

Plug

1шт.

39

00400237

HYD CONNECTOR

Nipple

1шт.

40

HYDRAULIC VALVE, Manual, Refer Figure B05

1шт.

05

1шт.

40

HYDRAULIC VALVE, Electric, Refer Figure B05

1шт.

07

1шт.

41

00407385

PLUG

1шт.

42

00605797

NUT

3шт.

43

00605829

WASHER

3шт.

44

00605810

WASHER

3шт.

45

00410246

HYD CONNECTOR

Adaptor

1шт.
