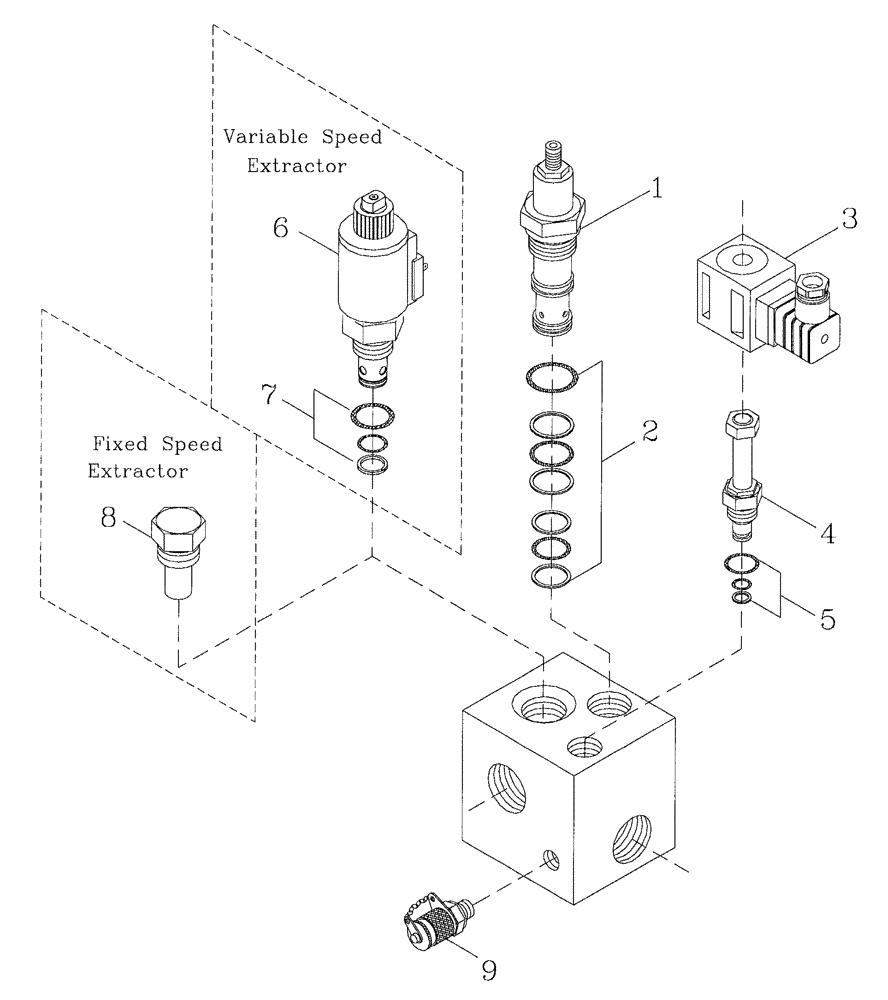

Запчасти Case IH 7700 (B05[11]) - HYDRAULIC SOLENOID RELIEF VALVE Hydraulic Components & Circuits

1

00409851

VALVE PRESSURE RELIE

Cartridge

1шт.

2

00409631

SEAL KIT

1шт.

3

00409848

SOLENOID

1шт.

4

00409849

VALVE PRESSURE RELIE

Cartridge

1шт.

5

00409850

SEAL KIT

1шт.

6

00409959

VALVE

Valvistor, Variable Speed

1шт.

6

00410173

SOLENOID

Coil, Variable Speed

1шт.

7

00409960

SEAL KIT

Variable Speed

1шт.

8

00409958

PLUG

Fixed Speed

1шт.

9

00405498

SCREW ON COUPLING

Test Point

1шт.

10

00409949

VALVE

Assembly, Variable Speed, Excludes Items 8/9

1шт.

10

00409948

VALVE

Assembly, Fixed Speed, Excludes Items 6/7/9

1шт.
