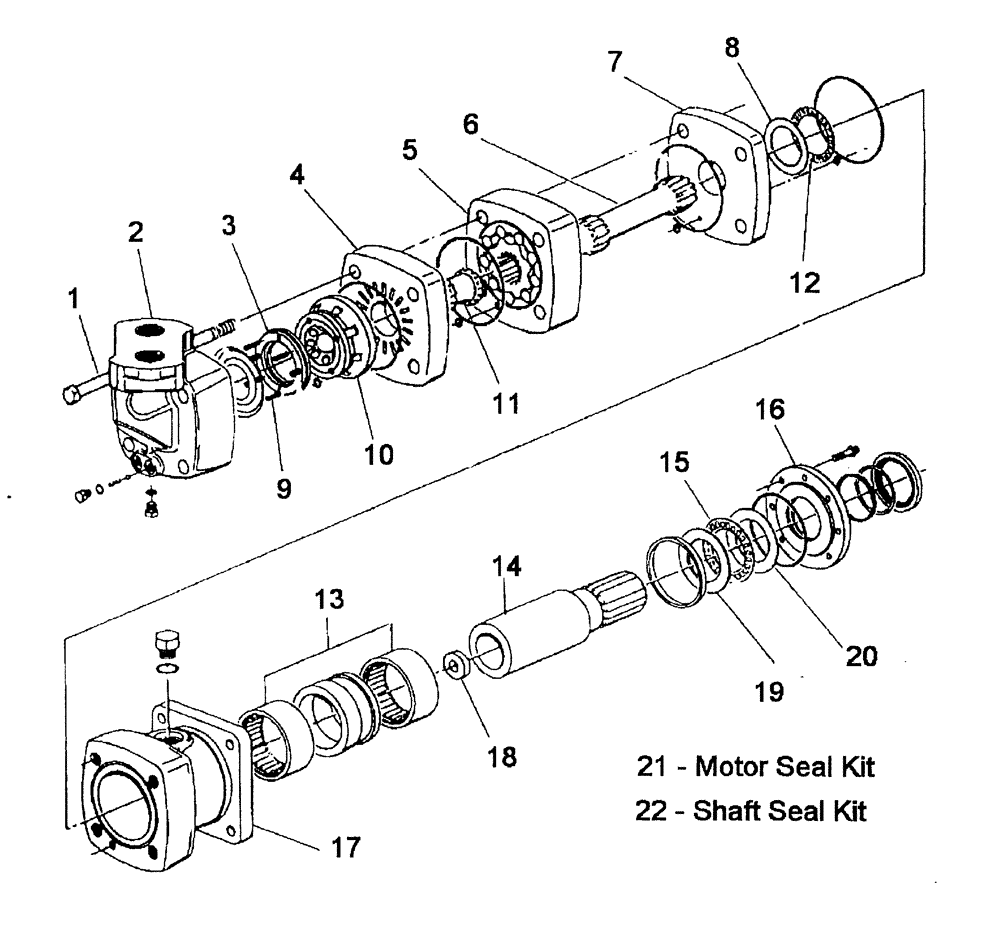

Запчасти Case IH 7700 (B03[09]) - HYDRAULIC MOTOR 10000 CHAR-LYNN: 29/40 CU. IN. Hydraulic Components & Circuits

1

00409519

CAPSCREW

BOLT

4шт.

2

00410253

FIP KIT

HOUSING

1шт.

3

00410252

PIN

RING PIN balance

1шт.

4

00410208

VALVE

PLATE

1шт.

5

00409622

GEROTOR

29 cu. in.

1шт.

5

00409517

GEROTOR

40 cu. in.

1шт.

6

00409518

DRIVE

1шт.

7

00410207

WEAR STRIP

PLATE

1шт.

8

00409599

THRUST BEARING

WASHER

1шт.

9

00410254

SPRING

4шт.

10

00410255

VALVE

VALVE

1шт.

11

00410251

DRIVE

DRIVE

1шт.

12

00409627

THRUST BEARING

1шт.

13

00409601

BEARING

2шт.

14

00409623

SHAFT

1шт.

15

00409625

BEARING

1шт.

16

00410258

RETAINER

RETAINER

1шт.

17

00410256

FIP KIT

KIT housing

1шт.

18

00410257

SPACER

SPACER

1шт.

19

00409624

WASHER

1шт.

20

00409626

WASHER

1шт.

21

00409596

SEAL KIT

motor

1шт.

22

00409597

SEAL KIT

shaft

1шт.

23

00409356

MOTOR, HYDRAULIC

ASSEMBLY, 29 cu. in.

1шт.

23

00409513

MOTOR, HYDRAULIC

ASSEMBLY, 40 cu. in.

1шт.
