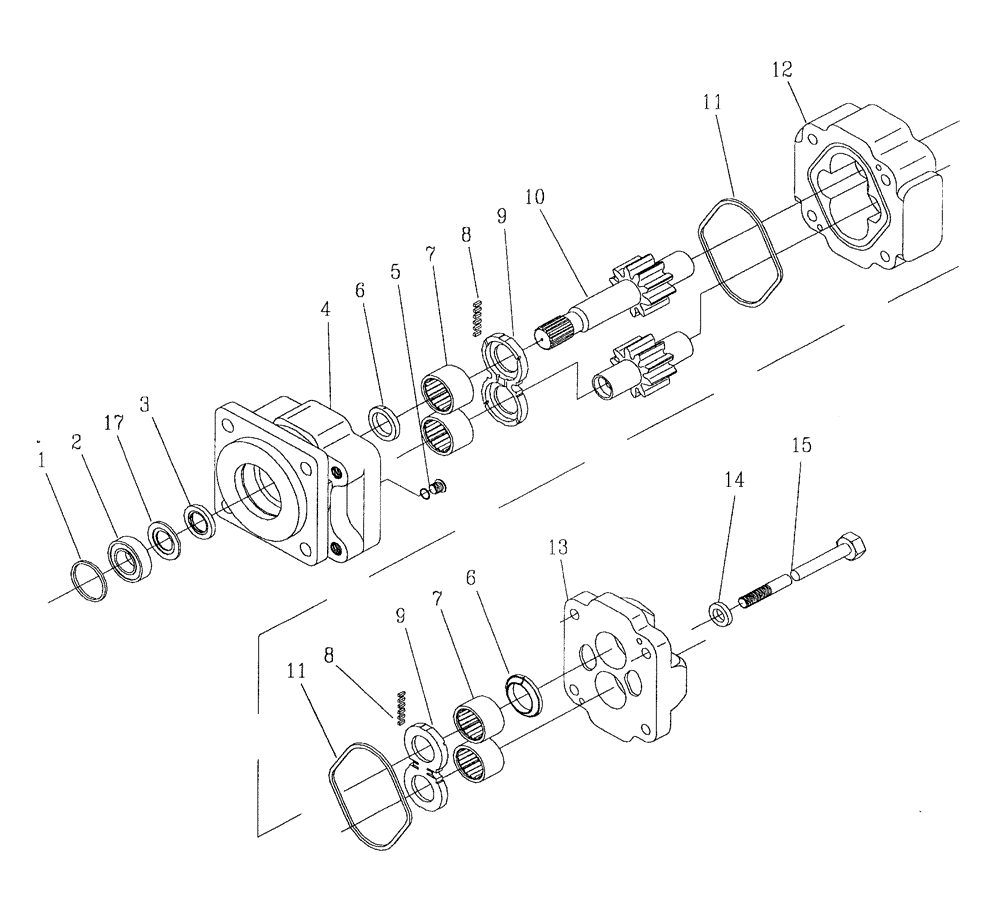

Запчасти Case IH 7700 (B03[07]) - HYDRAULIC MOTOR M50A Hydraulic Components & Circuits

1

00400581

RING

snap

1шт.

2

00144114

BALL BEARING

1шт.

3

00400621

SEAL

1шт.

4

00408384

SHAFT

COVER end

1шт.

5

00400608

CHECK VALVE

2шт.

6

00400576

SEAL

2шт.

7

00400577

ROLLER

BEARING

4шт.

8

00409503

ASSEMBLY

STRIP seal

2шт.

9

00400589

PLATE

thrust

2шт.

10

00409380

SHAFT

SET gear

1шт.

11

00400590

GASKET

2шт.

12

00409372

TRANSMISSION HOUSING

1шт.

13

00409408

COVER

end

1шт.

14

00400531

WASHER

4шт.

15

00409393

SCREW

4шт.

17

00407689

ASSEMBLY

RETAINER

1шт.

18

00409692

SEAL KIT

1шт.

19

00409101

MOTOR, HYDRAULIC

ASSEMBLY

1шт.

19

00409101R

REMAN-HYD MOTOR

7700 AUSTOFT SUGAR CANE HARVESTER, ASSEMBLY (1/00-12/00)

1шт.

19

00409101C

CORE-MOTOR HYDRAULIC

Return Number

1шт.
