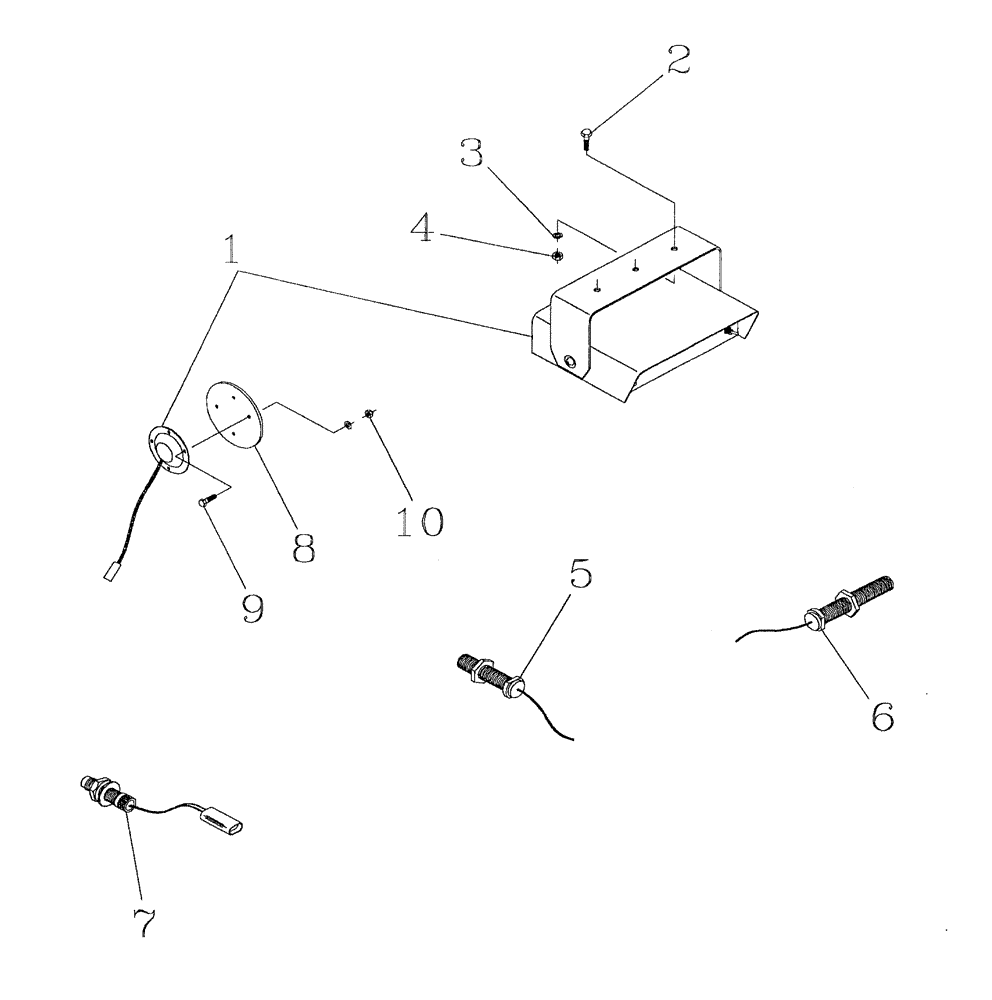

Запчасти Case IH 7700 (C09[01]) - CANE LOSS MONITOR Engine & Engine Attachments

1

00198037

CONTROL MONITOR

EXTRACTOR SENSOR

1шт.

1

00198227

SENSOR

EXTRACTOR hood

1шт.

2

FA106016

BOLT

2шт.

3

WB060000

SPRING WASHER

2шт.

4

NA106000

NUT

2шт.

5

00180619

SENDER UNIT

SENDER SENSOR basecutter

1шт.

6

00181825

SENDER UNIT

SENDER SENSOR extractor arm

1шт.

7

00409487

SENDER UNIT

SENDER PICK-UP ground speed magnetic

1шт.

8

87249563

PLATE

PLATE

1шт.

9

FA105020

BOLT,Hex, M5 x 0.8, Gr 8.8

4шт.

10

NC015000

NUT

4шт.
