(C03[01]) - ENGINE COMPARTMENT

Запчасти Case IH 7700 (C03[01]) - ENGINE COMPARTMENT Engine & Engine Attachments

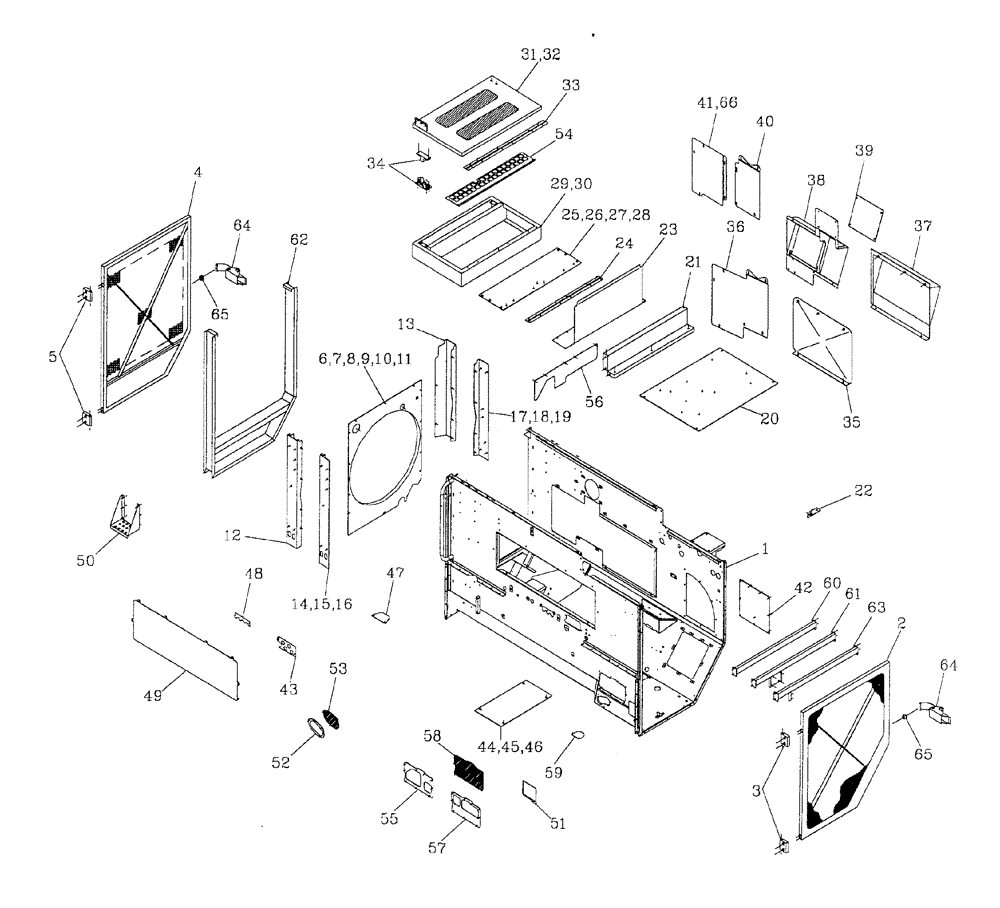

Схема запчастей Case IH 7700 - (C03[01]) - ENGINE COMPARTMENT Engine & Engine Attachments
50
44
51
37
3
25
65
54
27
26
21
38
17
19
45
10
9
43
4
40
13
48
64
18
61
20
53
8
62
15
23
55
42
5
11
39
56
29
16
60
30
58
65
31
63
35
28
34
59
6
24
47
33
7
52
12
36
46
66
14
22
64
49
57
32
2
1
41
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

361706A1

BOX

ENGINE COMPARTMENT, 108, 6CT, M11

1шт.

1

361707A1

ENGINE COMPARTMENT, 125

1шт.

1

361708A1

ENGINE COMPARTMENT, 3306

1шт.

2

87246485

DOOR ASSY.

1шт.

2

00180492

SEAL

RUBBER pinchweld

1шт.

3

87229919

LUG

HINGE

2шт.

4

87247298

DOOR

DOOR, 108/6CT

1шт.

4

87246589

DOOR ASSY.

125, M11, 3306

1шт.

4

00180492

SEAL

RUBBER pinchweld

1шт.

5

86983900

HINGE

2шт.

6

385968A1

SHROUD, 108

1шт.

7

87256504

SHROUD

125

1шт.

8

380337A1

SHROUD, 6CT

1шт.

9

87247292

SHROUD ASSY.

SHROUD, M1 1-330

1шт.

10

87249600

SHROUD, M1 1-250

1шт.

11

87257130

SHROUD, 3306

1шт.

12

87247319

SUPPORT front, 108/6CT

1шт.

13

87235422

SUPPORT rear, 108/6CT

1шт.

14

87256500

BRACKET

SUPPORT front, 125

1шт.

15

87247294

SUPPORT

front, M11

1шт.

16

87257132

SUPPORT front, 3306

1шт.

17

87256502

BRACKET

SUPPORT rear, 125

1шт.

18

87232824

GUARD

SUPPORT rear M11

1шт.

19

87257134

SUPPORT rear, 3306

1шт.

20

369268A1

TOOL KIT

COVER

1шт.

21

87242289

BRACKET

MEMBER

1шт.

22

87250256

CLAMP BRACKET

MOUNT filter

1шт.

23

87242090

PLATE

COVER

1шт.

24

87242089

HINGE

1шт.

25

380339A1

PLATE, 108/6CT

1шт.

26

87245624

PLATE

125

1шт.

27

87245623

PLATE

M11

1шт.

28

87245725

PLATE, 3306

1шт.

29

87238026

MOUNTING PARTS

COVER, 125, M11-250

1шт.

30

87233183

COVER ASSY

108, 6CT, M11-330, 3306

1шт.

31

86958000

COVER

108,6CT, M11-330, 3306

1шт.

32

87238040

COVER ASSY

125 M11-250

1шт.

33

86958200

HINGE

1шт.

34

00607939

SPRING

CATCH

2шт.

35

87231867

COVER ASSY

rear 108, 125, 6CT, 3306

1шт.

36

376680A1

COVER

COVER rear, 125, 3306

1шт.

37

87231847

COVER ASSY

rear, M11

1шт.

38

376677A1

MOUNTING PARTS

COVER rear, M11

1шт.

39

376679A1

COVER PLATE

COVER rear, M11

1шт.

40

389996A1

COVER

COVER rear, 108/6CT

1шт.

41

389993A1

COVER rear, 108

1шт.

42

87250256

CLAMP BRACKET

COVER inspection

1шт.

43

381444A1

COVER

COVER

1шт.

44

87230221

COVER ASSY

lower, 108/6CT, M11

1шт.

45

87238192

COVER ASSY

lower 125

1шт.

46

87242552

COVER lower, 3306

1шт.

47

87243284

SUPPORT traction cable

1шт.

48

87243296

PLATE

PLATE

1шт.

49

367702A1

PLATE

1шт.

50

369385A1

STEP

STEP

1шт.

51

87246617

COVER

1шт.

52

87247976

COVER

1шт.

53

87247978

SEAL

SEAL

1шт.

54

87254097

COVER

COVER

1шт.

55

87252048

COVER

COVER, Denison

1шт.

56

87254156

PLATE

GUARD fan, 3306

1шт.

57

87253480

COVER commercial

1шт.

58

87248877

RUBBER

SEAL

1шт.

59

87246619

PLATE

COVER

1шт.

60

87232171

STIFFENER

108, 6CT, 3306

1шт.

61

87249841

SUPPORT

MEMBER cross, M11

1шт.

62

87246519

EXTENSION

125, M11

1шт.

63

380350A1

BRACE

MEMBER cross, 125

1шт.

64

00181902

LATCH

2шт.

65

00181881

BUTTON

2шт.

66

395721A1

COVER

rear, 6CT

1шт.
