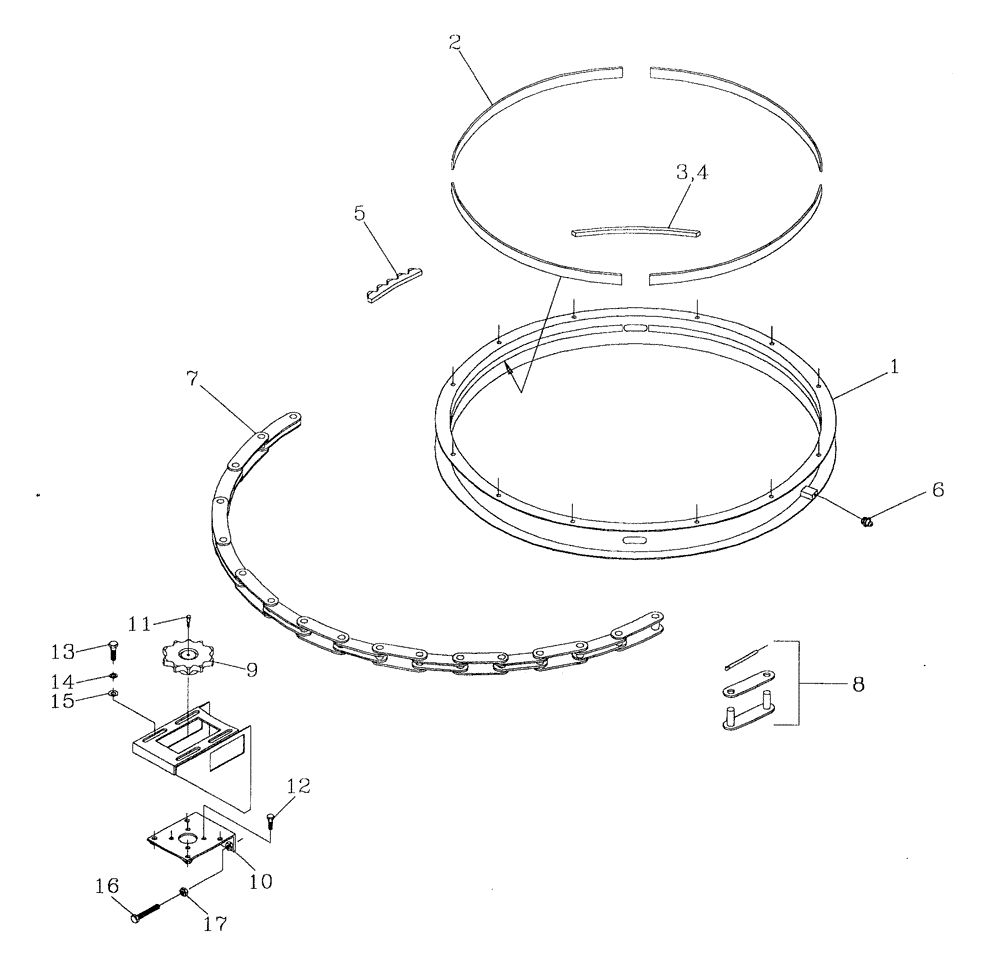

Запчасти Case IH 7700 (A08[04]) - SECONDARY EXTRACTOR HOOD HYDRAULIC SLEW Mainframe & Functioning Components

1

87150900

CHANNEL

RING ASSEMBLY

1шт.

2

87224575

HALF-RING

WEAR RING

4шт.

3

87151100

BAR

GUIDE short

2шт.

4

87151200

BAR

GUIDE long

2шт.

5

87151300

SPROCKET ASSY.

segment

4шт.

6

00152827

LUBE NIPPLE

grease

4шт.

7

87159600

CHAIN (AG)

1шт.

8

00700096

CONNECTING LINK

joining

1шт.

9

87150500

SPROCKET ASSY.

1шт.

10

87256014

PLATE

adjusting

1шт.

11

00601497

BOLT

1шт.

12

00601495

BOLT

4шт.

13

FM112030

BOLT

4шт.

14

WB120000

WASHER

4шт.

15

WA120000

WASHER

4шт.

16

FB112100

SCREW,Hex, M12 x 1.75 x 100mm

2шт.

17

NJ112000

NUT

2шт.
