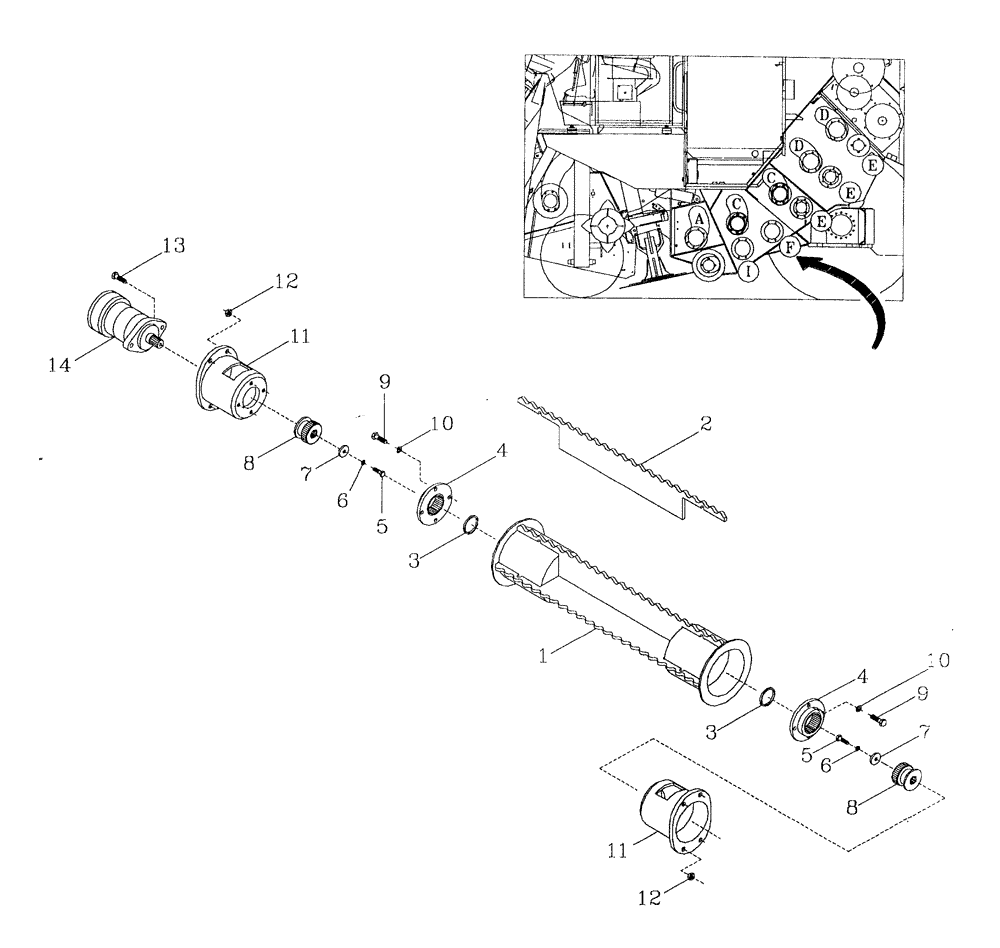

Запчасти Case IH 7700 (A05[05]) - BOTTOM ROLLER {LOWER, F} Mainframe & Functioning Components

1

86701601

ROLLER,220mm OD x 880mm L

1шт.

2

86927900

SLAT

3шт.

3

86701900

SPACER,52mm ID x 63mm OD x 5mm L

if required

1шт.

4

86700800

ADAPTER

2шт.

5

00601499

BOLT

2шт.

6

00605827

WASHER

2шт.

7

86778400

WASHER,10.5mm ID x 38.5mm OD x 5.15mm Thk

WASHER

2шт.

8

86701200

GEAR

pinion

2шт.

9

FM112025

BOLT

8шт.

10

WB120000

WASHER

8шт.

11

87217094

HOUSING

OVERALL LENGTH 151MM

2шт.

12

NC112000

NUT

8шт.

13

00604538

SCREW

4шт.

14

HYDRAULIC MOTOR, refer to Figure B03 [03]

1шт.
