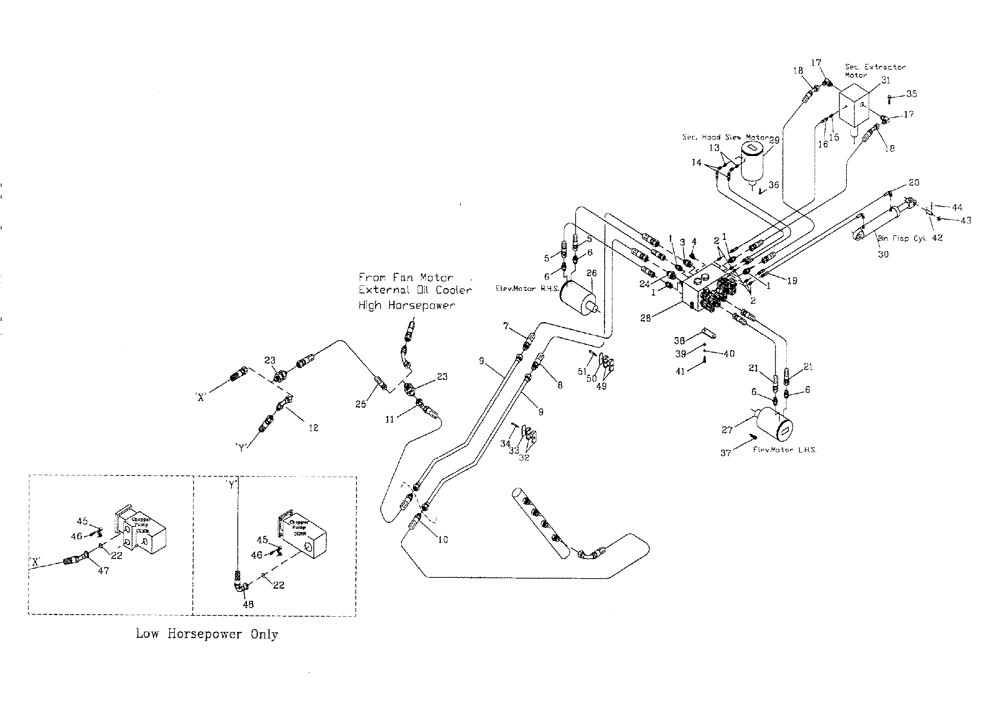

Запчасти Case IH 7700 (B10[02]) - HYDRAULIC CIRCUIT {ELEVATOR} Hydraulic Components & Circuits
№
Артикул
Название
Примечание
Количество
1
00400231
HYD CONNECTOR
NIPPLE
4шт.
2
00400223
HYD CONNECTOR
NIPPLE
5шт.
3
00400234
HYD CONNECTOR
NIPPLE
1шт.
4
00405498
SCREW ON COUPLING
TESTPOINT
1шт.
5
81965200
HOSE
Standard Elevator
2шт.
5
81967000
HOSE ASSY.
Extended Elevator
2шт.
5
82707600
HOSE, Louisiana
2шт.
6
00400229
HYD CONNECTOR
NIPPLE
4шт.
7
87250079
HOSE ASSY.
standard/ extended elevator
1шт.
7
87255995
HOSE extended elevator + 250
1шт.
8
87255996
HOSE ASSY.
HOSE standard/ extended elevator
1шт.
8
87255994
HOSE,25.4mm ID x 1800mm L, SAE 100R17
HOSE extended elevator + 250
1шт.
9
87247175
TUBE,25.40 mm OD
2шт.
10
87247906
HOSE ASSY.
1шт.
11
87252188
HOSE ASSY.
1шт.
12
00407240
HYD CONNECTOR
BEND
1шт.
13
00400074
HYD CONNECTOR
NIPPLE
2шт.
14
87217481
HOSE standard elevator
2шт.
14
86612500
HOSE
HOSE extended elevator + 250
2шт.
14
86312484
HOSE Louisiana
2шт.
15
00400162
HYD CONNECTOR
NIPPLE
1шт.
16
87248824
HOSE,6.35mm ID x 1350mm L, SAE 100R17
Standard elevator
1шт.
16
82713500
HOSE ASSY.
HOSE extended elevator + 250
1шт.
16
87247522
HOSE ASSY.,6.35mm ID x 2170mm L, SAE 100R17
HOSE Louisiana
1шт.
17
00400246
HYD CONNECTOR
ELBOW
2шт.
18
87121700
HOSE
standard elevator
2шт.
18
87236502
HOSE ASSY.
extended elevator + 250
2шт.
18
87256990
HOSE, Louisiana
2шт.
19
82745900
HOSE ASSY.,6.35mm ID x 1440mm L, SAE 100R17
standard elevator
1шт.
19
79100295
CONTROL VALVE
HOSE extended elevator + 250
1шт.
19
87237583
HOSE ASSY.
Louisiana
1шт.
20
79100295
CONTROL VALVE
HOSE standard elevator
1шт.
20
84004000
HOSE,6.35mm ID x 1670mm L, SAE 100R17
HOSE extended elevator + 250
1шт.
20
87256989
HOSE Louisiana
1шт.
21
81967000
HOSE ASSY.
Standard Elevator
2шт.
21
87227010
HOSE extended elevator + 250
2шт.
21
82709800
HYDRAULIC HOSE,19.05mm ID x 1570mm L, SAE 100R16
HOSE Louisiana
2шт.
22
00100024
O-RING
1шт.
23
00400067
HYD CONNECTOR
NIPPLE
2шт.
24
00400236
HYD CONNECTOR
NIPPLE
1шт.
25
82710200
HOSE
1шт.
26
HYDRAULIC MOTOR, refer to Figure B03 [04]
1шт.
27
HYDRAULIC MOTOR, refer to Figure B03 [03]
1шт.
28
HYDRAULIC SOLENOID VALVE
1шт.
Refer Figure B05.12
1шт.
29
HYDRAULIC MOTOR, refer to Figure B03 [08]
1шт.
30
HYDRAULIC CYLINDER
1шт.
Refer Figure B02.10
1шт.
31
HYDRAULIC MOTOR, refer to Figures B03 [14]
1шт.
32
00405072
CLAMP
3шт.
33
00405228
COVER PLATE
3шт.
34
FA108045
BOLT
3шт.
35
00601511
BOLT
4шт.
36
00601495
BOLT
4шт.
37
00601506
BOLT
4шт.
38
87255819
PLATE
short
1шт.
38
87255820
PLATE
long
1шт.
39
WA100000
WASHER
4шт.
40
WB100000
WASHER
4шт.
41
FA110030
BOLT
4шт.
42
82087400
PIN,15.88mm OD x 68mm L
2шт.
43
WA160000
WASHER
2шт.
44
SA050050
COTTER PIN
2шт.
45
00400151
SPECIAL CLAMP
4шт.
46
00604462
SCREW
2шт.
47
87254838
HOSE
1шт.
48
82710700
HOSE
1шт.
49
00409585
CLAMP
1шт.
50
00409586
COVER PLATE
1шт.
51
FA108065
BOLT
1шт.
Выбрано товаров: 70
