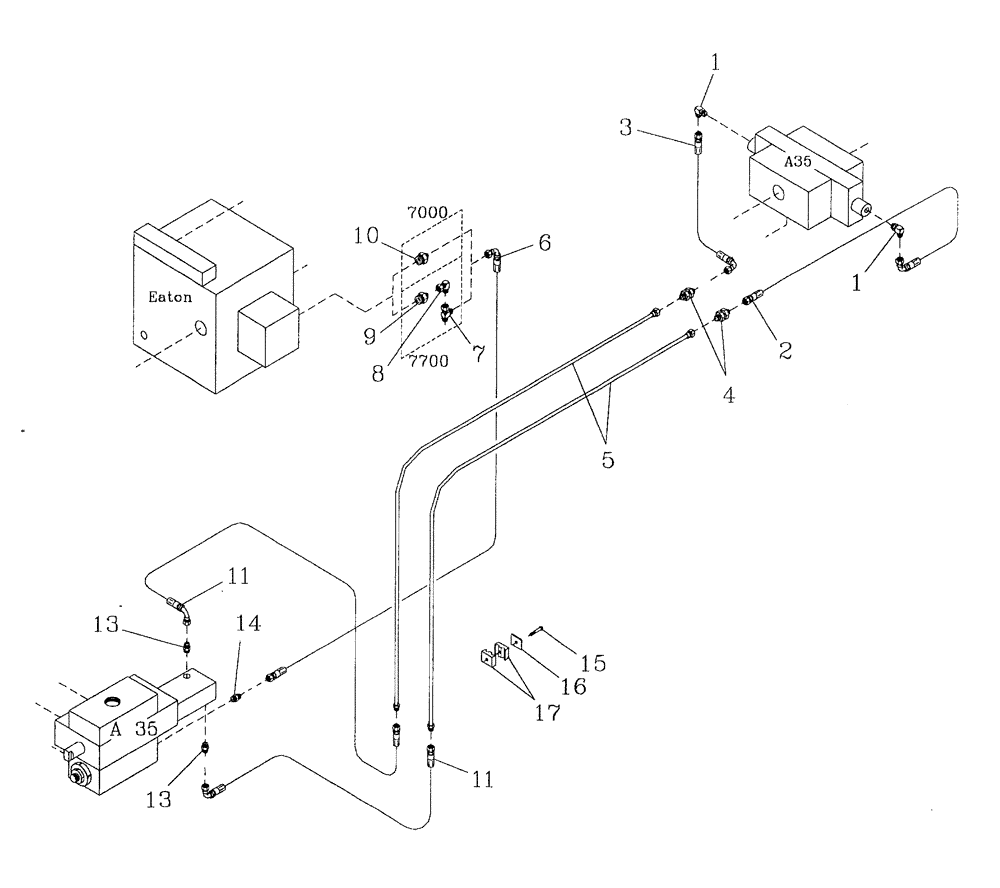

Запчасти Case IH 7700 (B07[05]) - HYDRAULIC PILOT LINES [ELECTRIC CABIN] Hydraulic Components & Circuits

1

00402475

HYD CONNECTOR

ELBOW

2шт.

2

82743100

HOSE,6.35mm ID x 350mm L, SAE 100R17

1шт.

3

82704900

HOSE,6.35mm ID x 530mm L, SAE 100R17

1шт.

4

00400070

HYD CONNECTOR

NIPPLE

2шт.

5

87256127

TUBE,9.50 mm OD

2шт.

6

86312263

HOSE ASSY.

1шт.

7

00404677

TEE

1шт.

8

00402879

HYD CONNECTOR

ELBOW

1шт.

9

00400074

HYD CONNECTOR

NIPPLE, model 7700

1шт.

10

87246605

HYD CONNECTOR

NIPPLE, model 7000

1шт.

11

86306891

HOSE ASSY.

HOSE

2шт.

13

00400160

HYD CONNECTOR

NIPPLE

2шт.

14

00400223

HYD CONNECTOR

NIPPLE

1шт.

15

FA106035

BOLT

2шт.

16

00408517

COVER PLATE

2шт.

17

00408516

CLAMP

2шт.
