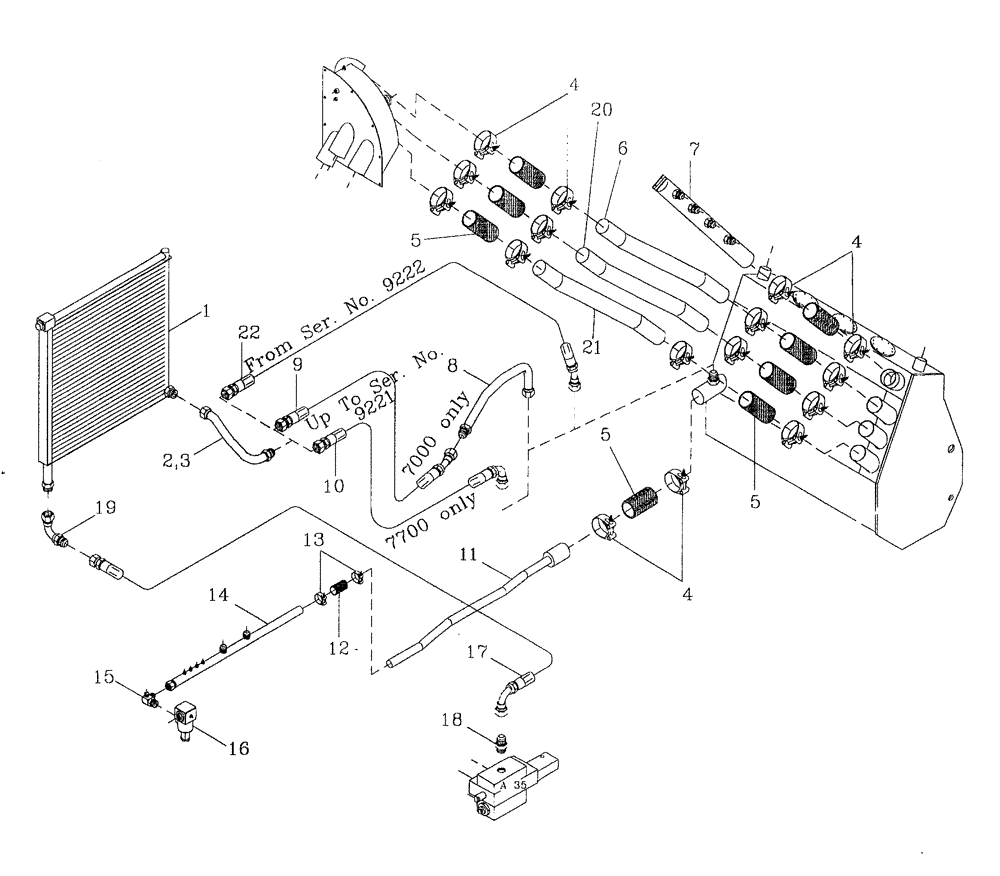

Запчасти Case IH 7700 (B06[03]) - HYDRAULIC SUCTION LINES - LOW HORSEPOWER Hydraulic Components & Circuits

1

00180536

COOLER

oil

1шт.

2

87247311

TUBE, 108/6CT

1шт.

3

87249604

TUBE, M11/ 3306-250

1шт.

4

00135785

HOSE CLAMP

16шт.

5

86475800

HOSE,76.20 mm ID x 150.00 mm

8шт.

6

87256523

TUBE,3" DIA

upper

1шт.

7

87249496

RETURN PIPE

MANIFOLD

1шт.

8

87248798

TUBE, model 7000

1шт.

Up to and including Serial # 9221

1шт.

9

87255529

HOSE, model 7000

1шт.

Up to and including Serial # 9221

1шт.

10

87256261

HOSE, model 7700

1шт.

Up to and including Serial # 9221

1шт.

11

87247352

RETURN PIPE

TUBE

1шт.

12

87227201

HOSE,38.10 mm ID x 240.00 mm

1шт.

13

00181182

HOSE CLAMP

2шт.

14

87247350

RETURN PIPE

1шт.

15

86310816

HYD CONNECTOR

ADAPTOR

1шт.

16

HYDRAULIC RELIEF VALVE

1шт.

Refer Figure B05.21

1шт.

17

87232797

HOSE

1шт.

18

00400237

HYD CONNECTOR

NIPPLE

1шт.

19

00408451

HYD CONNECTOR

BEND

1шт.

20

87256524

TUBE

middle

1шт.

21

87256525

TUBE,617 mm L

lower

1шт.

22

397901A1

HOSE

1шт.

Serial # 9222 and onwards

1шт.
