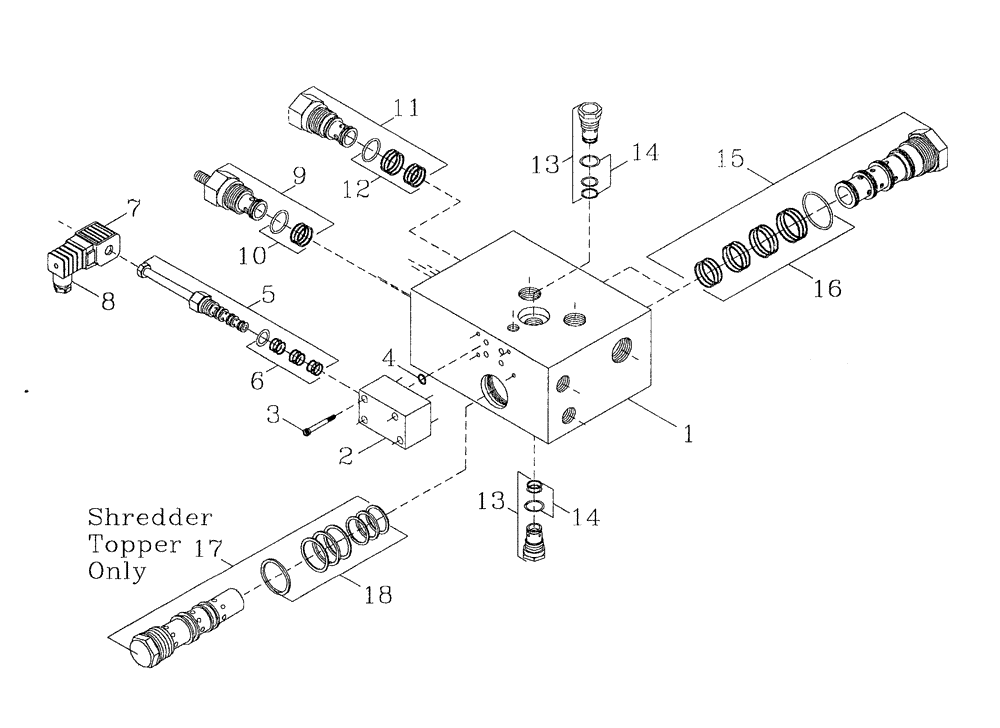

Запчасти Case IH 7700 (B05[13]) - HYDRAULIC SOLENOID VALVE Hydraulic Components & Circuits

1

00410223

HYDRAULIC VALVE

MANIFOLD

1шт.

2

00410224

VALVE BLOCK

1шт.

3

00410225

BOLT

KIT

1шт.

4

00410226

SEAL KIT

1шт.

5

00410227

SOLENOID VALVE

CARTRIDGE

1шт.

6

00410123

SEAL KIT

1шт.

7

00409521

COIL

solenoid

2шт.

8

00409524

ELEC CONNECTOR

2шт.

9

00410032

VALVE PRESSURE RELIE

CARTRIDGE

1шт.

10

00410159

SEAL KIT

1шт.

11

00410228

HYDRAULIC VALVE

CARTRIDGE

1шт.

12

00410229

SEAL KIT

1шт.

13

00410230

CHECK VALVE

CARTRIDGE

2шт.

14

00410231

SEAL KIT

2шт.

15

00410232

FLOAT VALVE

CARTRIDGE

2шт.

16

00410233

SEAL KIT

2шт.

17

00410084

FLOW DIVIDER

CARTRIDGE

1шт.

18

00410234

SEAL KIT

1шт.

19

00410081

VALVE

ASSEMBLY standard topper

1шт.

19

87255551

PUMP, HYDROSTATIC

HYDROSTATIC PUMP ASSEMBLY shredder topper

1шт.
