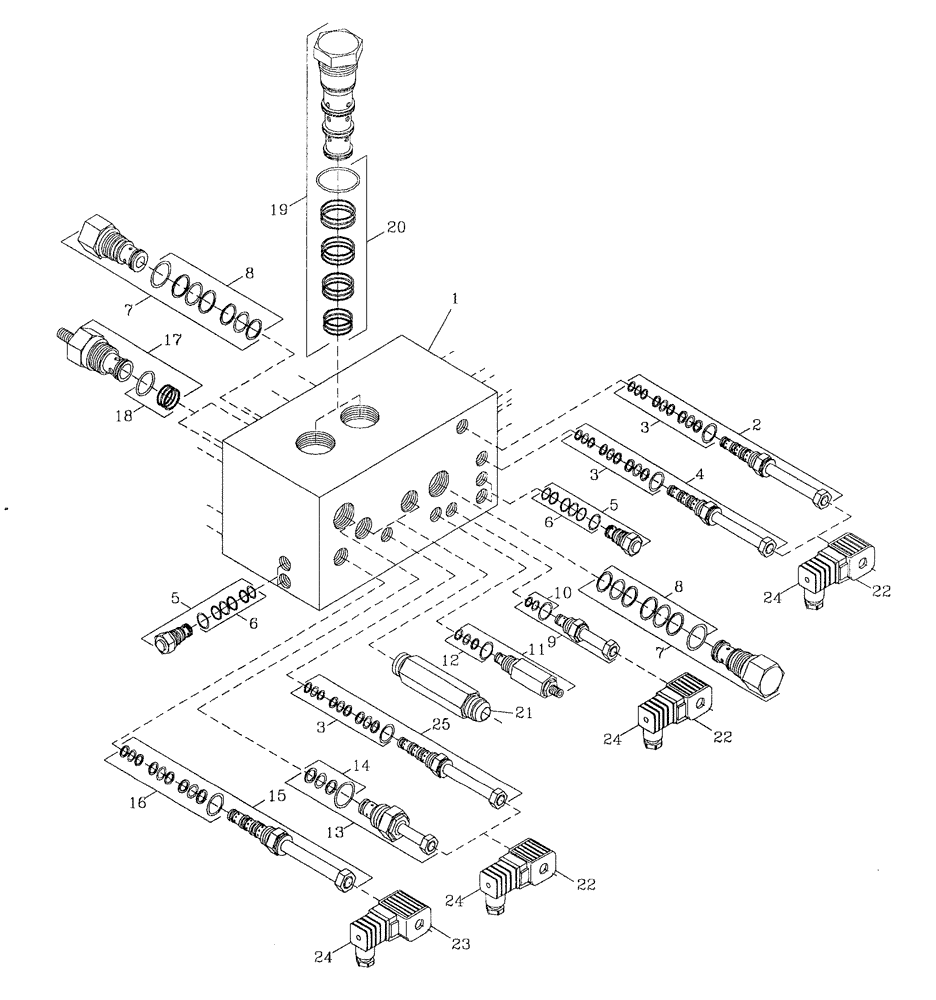

Запчасти Case IH 7700 (B05[12]) - HYDRAULIC SOLENOID VALVE Hydraulic Components & Circuits

1

00410235

HYDRAULIC VALVE

1шт.

2

00410236

SOLENOID VALVE

CARTRIDGE

1шт.

3

00410237

SEAL KIT

3шт.

4

00410238

SOLENOID VALVE

CARTRIDGE

1шт.

5

00410239

CHECK VALVE

CARTRIDGE

4шт.

6

00410240

SEAL KIT

4шт.

7

00410228

HYDRAULIC VALVE

CARTRIDGE

2шт.

8

00410229

SEAL KIT

2шт.

9

00409520

VALVE PRESSURE RELIE

CARTRIDGE

1шт.

10

00409514

SEAL KIT

1шт.

11

00410241

VALVE PRESSURE RELIE

CARTRIDGE

1шт.

12

00410242

SEAL KIT

1шт.

13

00409654

VALVE PRESSURE RELIE

CARTRIDGE

1шт.

14

00409655

SEAL KIT

1шт.

15

00410243

SOLENOID VALVE

CARTRIDGE

1шт.

16

00410244

SEAL KIT

1шт.

17

00410032

VALVE PRESSURE RELIE

CARTRIDGE

2шт.

18

00410159

SEAL KIT

2шт.

19

00410232

FLOAT VALVE

CARTRIDGE

2шт.

20

00410233

SEAL KIT

2шт.

21

00410083

PIPE FITTING

NIPPLE

2шт.

22

00409521

COIL

solenoid

8шт.

23

00410245

COIL

solenoid

2шт.

24

00409524

ELEC CONNECTOR

10шт.

25

00410227

SOLENOID VALVE

CARTRIDGE

1шт.

26

00410082

HYDRAULIC VALVE

ASSEMBLY

1шт.
