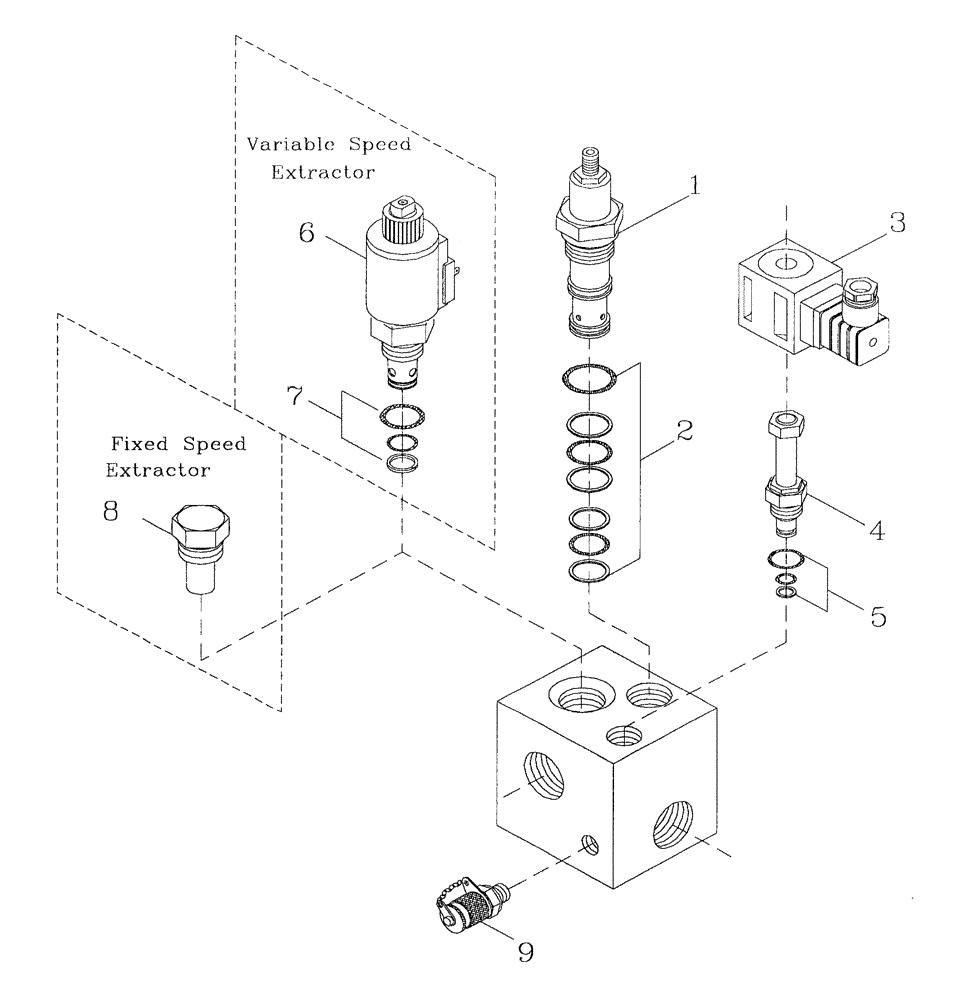

Запчасти Case IH 7700 (B05[11]) - HYDRAULIC SOLENOID RELIEF VALVE Hydraulic Components & Circuits

1

00409851

VALVE PRESSURE RELIE

CARTRIDGE

1шт.

2

00409631

SEAL KIT

1шт.

3

00409848

SOLENOID

1шт.

4

00409849

VALVE PRESSURE RELIE

CARTRIDGE

1шт.

5

00409850

SEAL KIT

1шт.

6

00409959

VALVE

variable speed

1шт.

6

00410173

SOLENOID

COIL variable speed

1шт.

7

00409960

SEAL KIT

variable speed

1шт.

8

00409958

PLUG

fixed speed

1шт.

9

00405498

SCREW ON COUPLING

TEST POINT

1шт.

10

00409949

VALVE

ASSEMBLY variable speed, Excludes: items 8, 9

1шт.

10

00409948

VALVE

ASSEMBLY fixed speed, Excludes: items 6, 7, 9

1шт.
