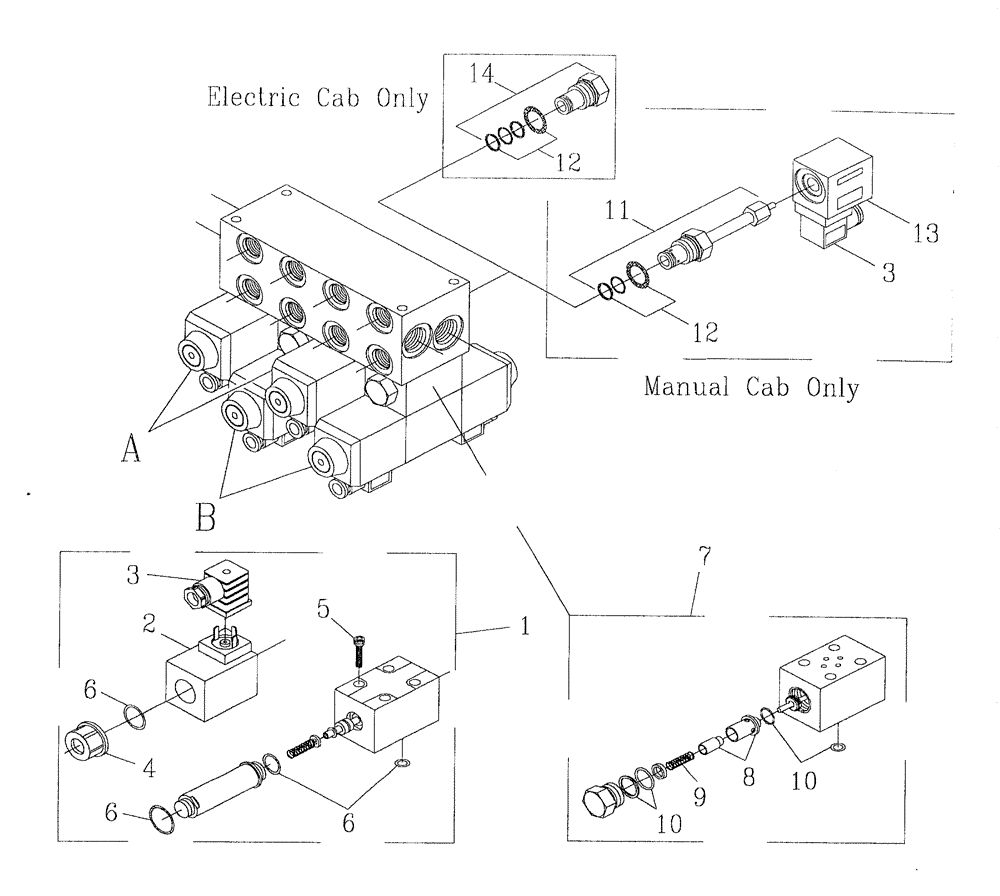

Запчасти Case IH 7700 (B05[10]) - HYDRAULIC VICKERS VALVE Hydraulic Components & Circuits

1

00410121

HYDRAULIC VALVE

CETOP - A ASSEMBLY

2шт.

1

00410122

HYDRAULIC VALVE

CETOP - B ASSEMBLY

2шт.

2

00409922

COIL

solenoid

2шт.

3

00409524

ELEC CONNECTOR

2шт.

4

00409924

NUT

nylon

2шт.

5

00409891

BOLT

KIT, A ASSEMBLY

1шт.

5

00410117

KIT

BOLT, B ASSEMBLY

1шт.

6

00409929

SEAL KIT

1шт.

7

00410116

VALVE

pilot check

2шт.

8

00410169

KIT

poppet

2шт.

9

00410170

SPRING

KIT

1шт.

10

00410171

SEAL KIT

1шт.

11

00410038

SOLENOID

CARTRIDGE mechanical cabin

1шт.

12

00408151

SEAL KIT

1шт.

13

00410172

SOLENOID

COIL

1шт.

14

00409847

PLUG

electric cabin

1шт.

15

00410025

VALVE

ASSEMBLY, 4 bank electric cabin

1шт.

15

00410028

VALVE

ASSEMBLY, 4 bank mechanical cabin

1шт.

15

00410026

VALVE

ASSEMBLY, 5 bank

1шт.
