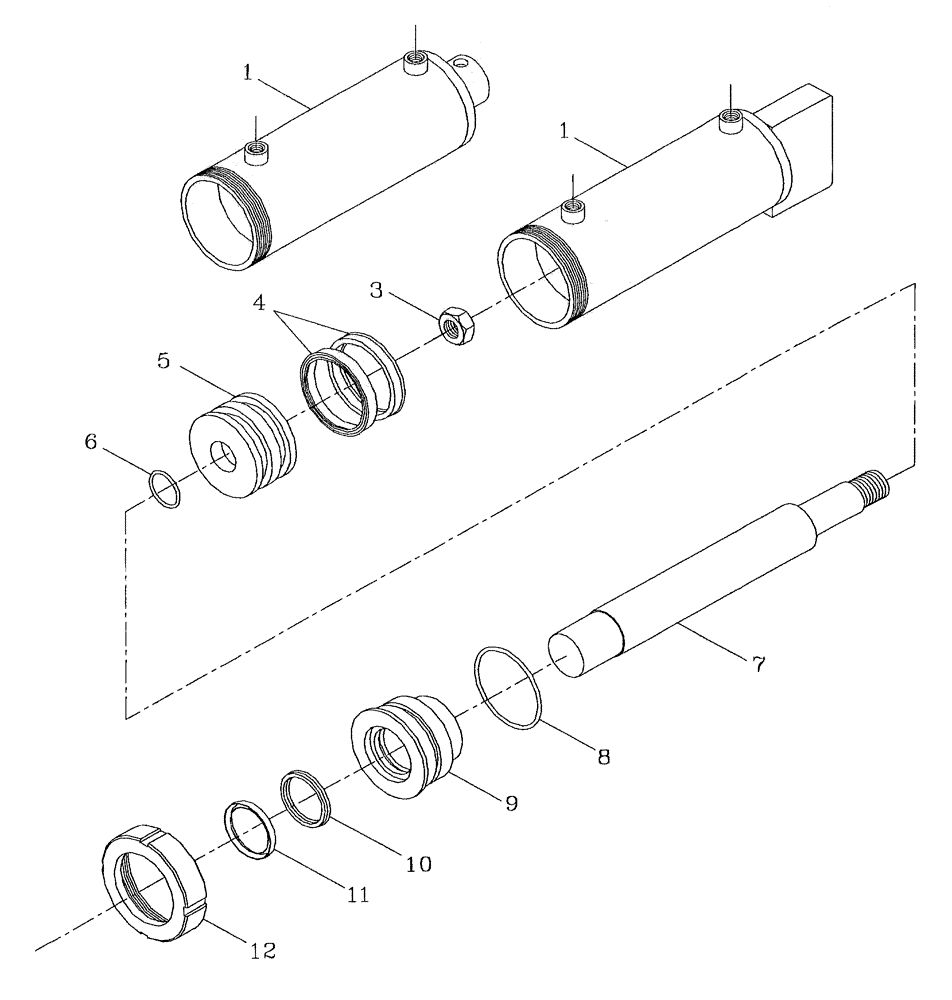

Запчасти Case IH 7700 (B02[07]) - HYDRAULIC CYLINDER {TRACK ADJUSTER} Hydraulic Components & Circuits

1

87253895

CYLINDER,101.68mm Bore Dia

BARREL (Up to and including Serial #9095)

1шт.

1

87256142

CYLINDER

BARREL (Serial #9096 and onwards)

1шт.

3

00603133

NUT

1шт.

4

00100788

OIL SEAL

2шт.

5

87223207

PISTON

1шт.

6

00100023

O-RING

1шт.

7

87255841

SHAFT

ROD

1шт.

8

00100045

O-RING

1шт.

9

87214820

CYLINDER HEAD

1шт.

10

00100718

OIL SEAL

1шт.

11

00100719

SEAL

WIPER

1шт.

12

87113600

NUT

1шт.

13

87255842

SEAL KIT

1шт.

14

87255840

CYLINDER

ASSEMBLY (Up to and including Serial # 9095)

1шт.

14

87256141

CYLINDER ASSY.

(Serial #9096 and onwards)

1шт.
