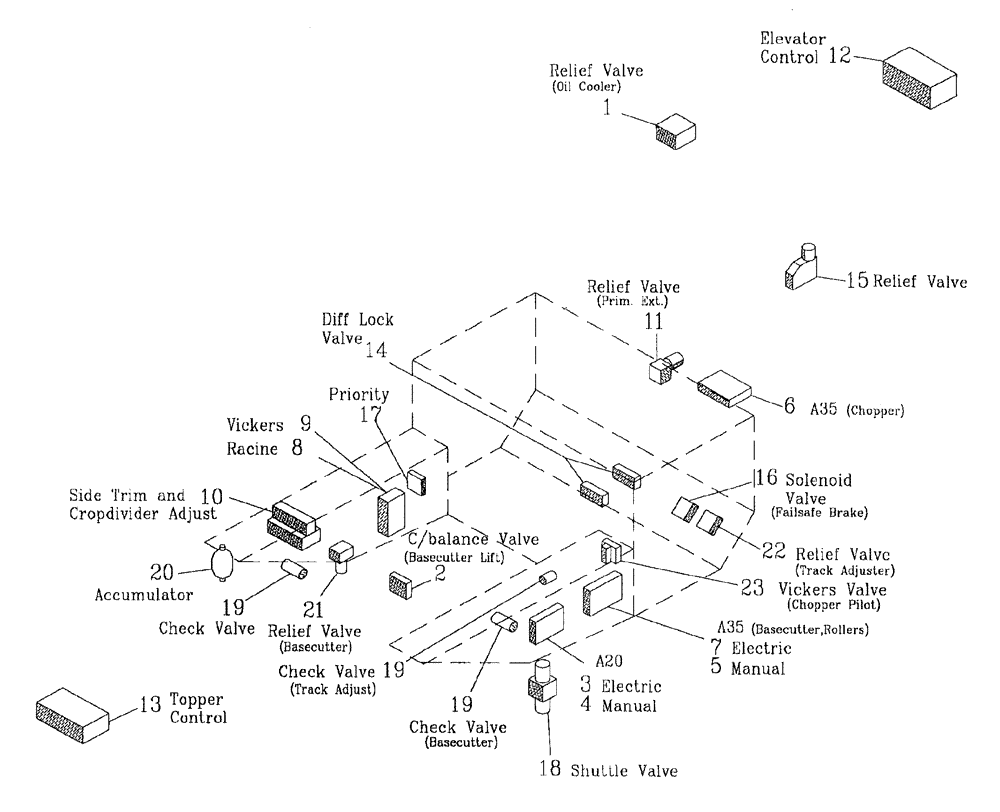

Запчасти Case IH 7700 (B01[06]) - HYDRAULIC VALVES Hydraulic Components & Circuits

1

VALVE hydraulic solenoid relief (Refer Page B05.01)

1шт.

2

VALVE hydraulic counter-balance (Refer Page B05.02)

1шт.

3

VALVE A20 hydraulic (electric) (Refer Page B05.03)

1шт.

4

VALVE A20 hydraulic (manual) (Refer Page B05.04)

1шт.

5

VALVE A35 hydraulic (manual) (Refer Page B05.05)

1шт.

6

VALVE A35 hydraulic (Refer Page B05.06)

1шт.

7

VALVE A35 hydraulic (electric) (Refer Page B05.07)

1шт.

8

VALVE hydraulic Racine (Refer Page B05.08)

1шт.

9

VALVE hydraulic Vickers (Refer Page B05.09)

1шт.

10

VALVE hydraulic Vickers relief (Refer Page B05.10)

1шт.

11

VALVE hydraulic solenoid relief (Refer Page B05.11)

1шт.

12

VALVE hydraulic solenoid (Refer Page B05.12)

1шт.

13

VALVE hydraulic solenoid (Refer Page B05.13)

1шт.

14

VALVE hydraulic solenoid (Refer Page B05.14)

1шт.

15

VALVE hydraulic solenoid(Refer Page B05.15)

1шт.

16

VALVE hydraulic solenoid (Refer Page B05.16)

1шт.

17

VALVE hydraulic priority (Refer Page B05.17)

1шт.

18

VALVE hydraulic shuttle (Refer Page B05.18)

1шт.

19

VALVE hydraulic check (Refer Page B05.19)

1шт.

20

ACCUMULATOR (Refer Page B05.20)

1шт.

21

VALVE hydraulic relief (Refer Page B05.21)

1шт.

22

VALVE hydraulic relief (Refer Page B05.22)

1шт.

23

VALVE hydraulic pilot (Refer Page B05.23)

1шт.
