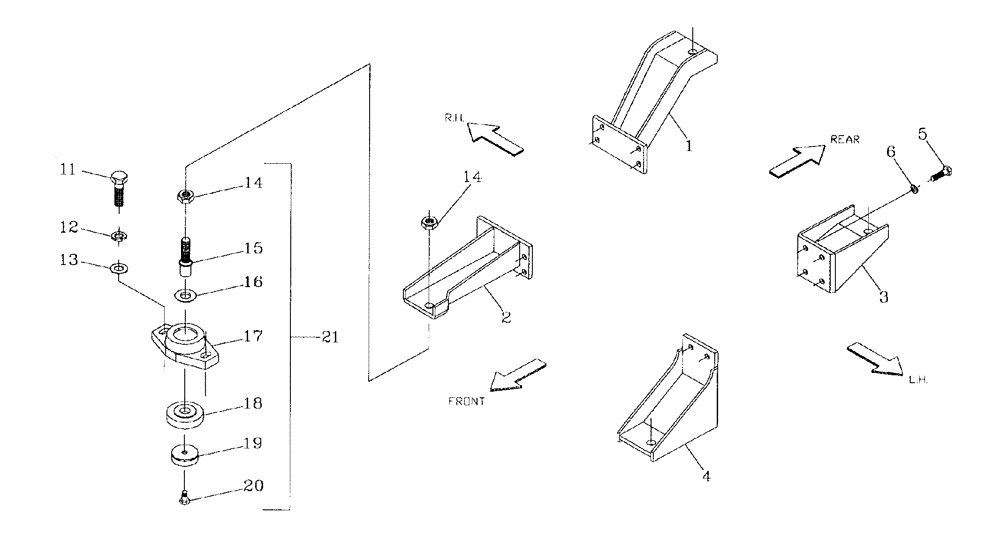

Запчасти Case IH 7700 (C05[03]) - ENGINE MOUNTS {6CT} Engine & Engine Attachments

1

87232469

ENGINE MOUNT

[RH rear]

1шт.

2

87220180

ENGINE MOUNT

MOUNT [RH front]

1шт.

3

87242689

MOUNTING PARTS

[LH rear]

1шт.

4

87220184

ENGINE MOUNT

[LH front]

1шт.

5

FM112030

BOLT

16шт.

6

WB120000

WASHER

16шт.

11

00608166

BOLT

8шт.

12

00605829

WASHER

8шт.

13

00605810

WASHER

8шт.

14

00606250

NUT

8шт.

15

87217397

PIN,19.05mm OD x 95mm L

4шт.

16

87217400

WASHER

4шт.

17

87217410

HOUSING

HOUSING

4шт.

18

87217403

DISC

4шт.

19

87217402

WASHER

4шт.

20

00606755

BOLT

4шт.

21

87217404

MOUNTING PARTS

ASSEMBLY

4шт.
