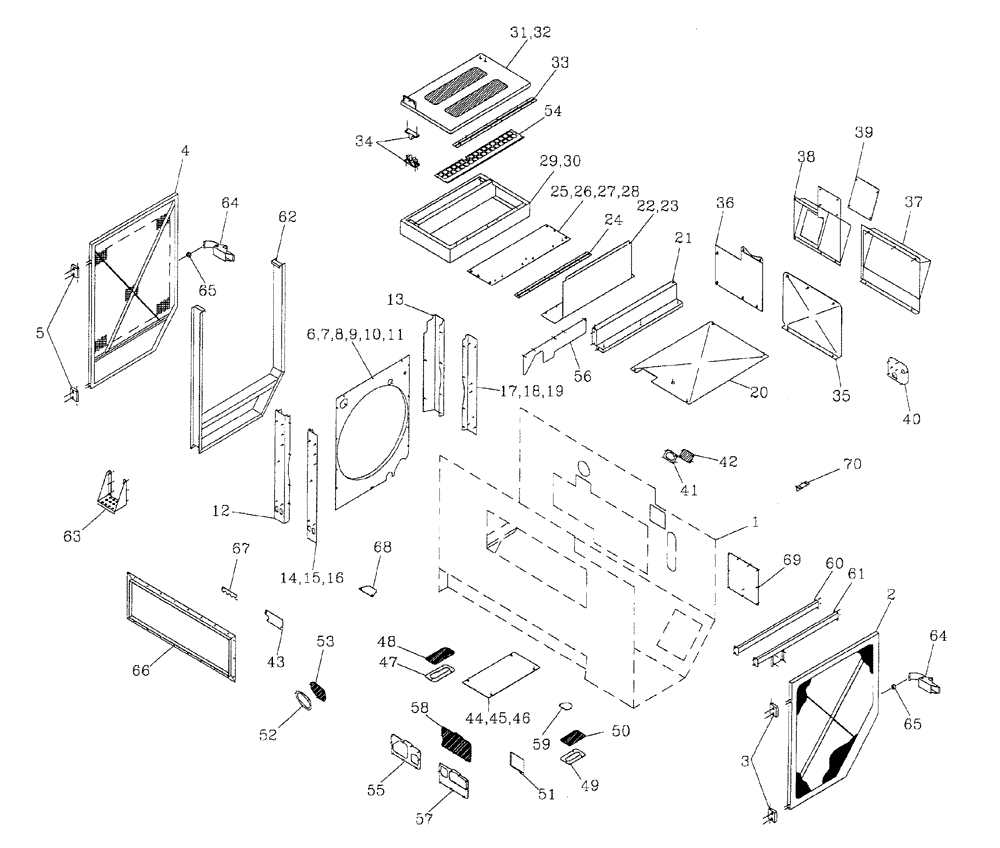

Запчасти Case IH 7700 (C03[01]) - ENGINE COMPARTMENT Engine & Engine Attachments
№
Артикул
Название
Примечание
Количество
1
87249735
SHELL
COMPARTMENT engine [108/6CT/ M11]
1шт.
1
87249736
COMPARTMENT engine[125]
1шт.
1
87249737
COMPARTMENT engine [3306]
1шт.
2
87246485
DOOR ASSY.
1шт.
2
00180492
SEAL
pinchweld /rubber
1шт.
3
87229919
LUG
HINGE
2шт.
4
87247298
DOOR
DOOR [108/6CT]
1шт.
4
87246589
DOOR ASSY.
[125/M11/ 3306]
1шт.
4
00180492
SEAL
pinchweld/rubber
1шт.
5
86983900
HINGE
2шт.
6
87247323
SHROUD [108]
1шт.
7
87247283
SHROUD
[125]
1шт.
8
87232472
SHROUD
SHROUD [6CT]
1шт.
9
87247292
SHROUD ASSY.
SHROUD [M11-330]
1шт.
10
87249600
SHROUD [M11-250]
1шт.
11
87247317
SHROUD
SHROUD [3306]
1шт.
12
87247319
SUPPORT [front] [108/6CT]
1шт.
13
87235422
SUPPORT [rear] [108/6CT]
1шт.
14
87246609
SHROUD ASSY.
SUPPORT [front] [125]
1шт.
15
87247294
SUPPORT
[front] [M11]
1шт.
16
87247315
SUPPORT [front] [3306]
1шт.
17
87242916
BRACKET
SUPPORT [rear] [125]
1шт.
18
87232824
GUARD
SUPPORT [rear] [M11]
1шт.
19
87244126
SUPPORT [rear] [3306]
1шт.
20
87234332
PLATE
COVER
1шт.
21
87242289
BRACKET
MEMBER
1шт.
22
87242186
COVER
COVER [108/6CT]
1шт.
23
87242090
PLATE
COVER [125/M11/ 3306]
1шт.
24
87242089
HINGE
1шт.
25
87242185
PLATE [108/6CT]
1шт.
26
87245624
PLATE
[125]
1шт.
27
87245623
PLATE
[M11]
1шт.
28
87245725
PLATE [3306]
1шт.
29
87238026
MOUNTING PARTS
COVER [125/ M11-250]
1шт.
30
87233183
COVER ASSY
[M11-330/ 3306]
1шт.
31
86958000
COVER
[108/6CT/ M11-330/ 3306]
1шт.
32
87238040
COVER ASSY
[125/ M11-250]
1шт.
33
86958200
HINGE
1шт.
34
00607939
SPRING
CATCH
2шт.
35
87231867
COVER ASSY
[rear] [108/125/ 6CT/3306]
1шт.
36
87231850
COVER ASSY
[rear] [108/125/ 6CT/3306]
1шт.
37
87231847
COVER ASSY
[rear] [M11]
1шт.
38
87236098
MOUNTING PARTS
COVER [rear] [M11]
1шт.
39
87236113
PLATE
COVER [rear] [M11]
1шт.
40
87249631
PLATE
1шт.
41
87213656
COVER PLATE
PLATE cover [108/6CT]
1шт.
42
87219224
PLATE
RUBBER [108/6CT
1шт.
43
87251648
COVER
1шт.
44
87230221
COVER ASSY
[lower] [108/6CT/ M11]
1шт.
45
87238192
COVER ASSY
[lower] [125]
1шт.
46
87242552
COVER [lower] [3306]
1шт.
47
87247279
RETAINER [RH]
1шт.
48
87247281
SEAL [RH]
1шт.
49
87247280
RETAINER [LH]
1шт.
50
87247986
SEAL [LH]
1шт.
51
87246617
COVER
1шт.
52
87247976
COVER
1шт.
53
87247978
SEAL
SEAL
1шт.
54
87254097
COVER
COVER
1шт.
55
87252048
COVER
COVER Denison
1шт.
56
87254156
PLATE
GUARD fan [3306]
1шт.
57
87253480
COVER Commercial
1шт.
58
87248877
RUBBER
SEAL
1шт.
59
87246619
PLATE
SEAL
1шт.
60
87232171
STIFFENER
[108/125/ 6CT/3306]
1шт.
61
87249841
SUPPORT
STIFFENER [M11]
1шт.
62
87246519
EXTENSION
[125/ M1 1-250]
1шт.
63
87247201
STEP
1шт.
64
00181902
LATCH
2шт.
65
00181881
BUTTON
2шт.
66
87251487
FRAME
FRAME
1шт.
67
87243296
PLATE
PLATE
1шт.
68
87243284
SUPPORT
1шт.
69
87254374
COVER
COVER inspection
1шт.
70
87250256
CLAMP BRACKET
MOUNT [filter]
1шт.
Выбрано товаров: 75
