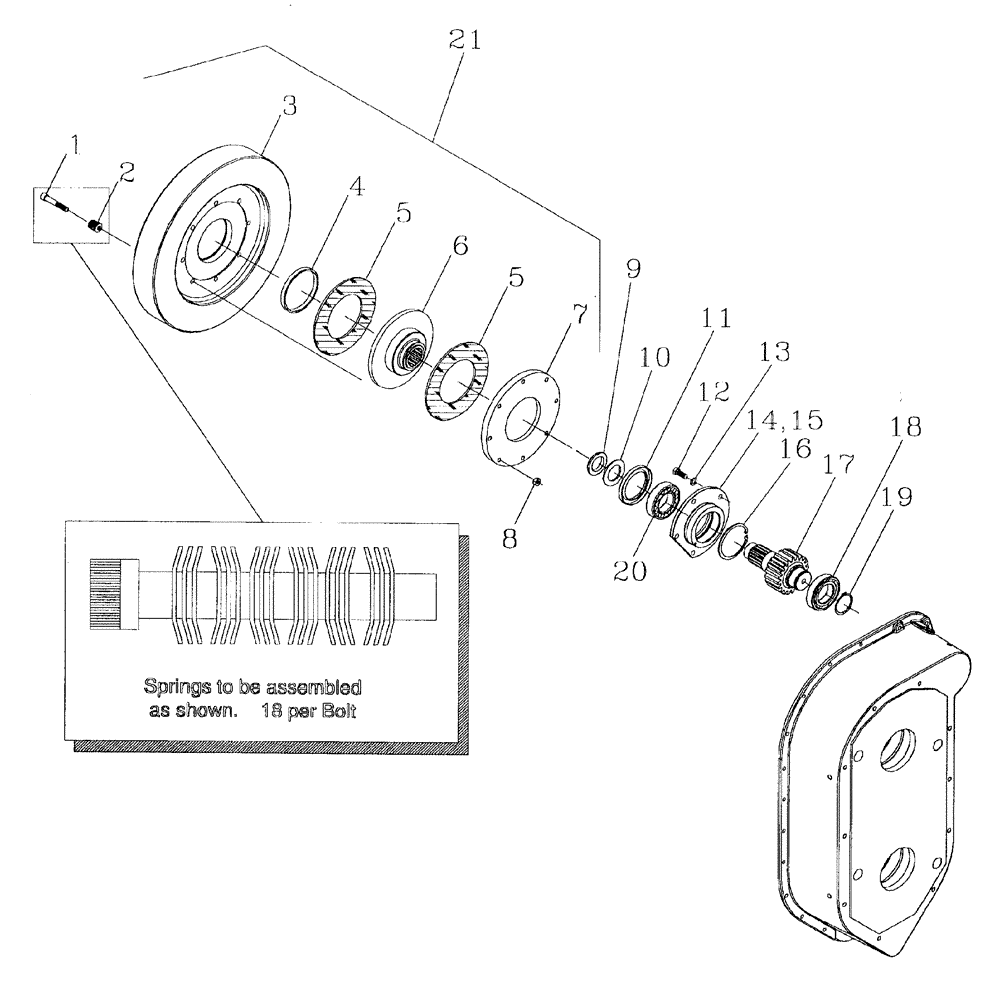

Запчасти Case IH 7700 (A06[03]) - ROTARY CHOPPER FLYWHEEL AND GEARBOX Mainframe & Functioning Components

1

FC112075

SCREW,M12 x 1.75 x 75mm

8шт.

2

00130076

WASHER

144шт.

3

87246148

FLYWHEEL

1шт.

4

87220477

BRONZE BUSHING,116.15mm ID x 126.15mm OD x 12mm L

1шт.

5

87220475

SHIM,125mm ID x 220mm OD x 5.15mm Thk

2шт.

6

87220479

ADAPTER

1шт.

7

87220476

CLUTCH, PRESSURE PLA

PLATE

1шт.

8

NA112000

NUT

8шт.

9

00141225

NUT

1шт.

10

87229334

WASHER,46mm ID x 75mm OD x 4.37mm Thk

1шт.

11

00100717

OIL SEAL

1шт.

12

FA112030

BOLT

6шт.

13

WB120000

WASHER

6шт.

14

87217721

BEARING HOUSING,90 mm ID x 110.06 mm OD x 60 mm

[12"]

1шт.

15

87239617

BEARING HOUSING,90 mm ID x 119.95 mm OD x 59 mm

[15"]

1шт.

16

CI100000

CIRCLIP

1шт.

17

87217726

GEAR

PINION

1шт.

18

00140497

BEARING

1шт.

19

CE055000

CIRCLIP

1шт.

20

00140425

BEARING

1шт.

21

87246147

FLYWHEEL

CLUTCH ASSEMBLY [Includes: Items 1-8]

1шт.
