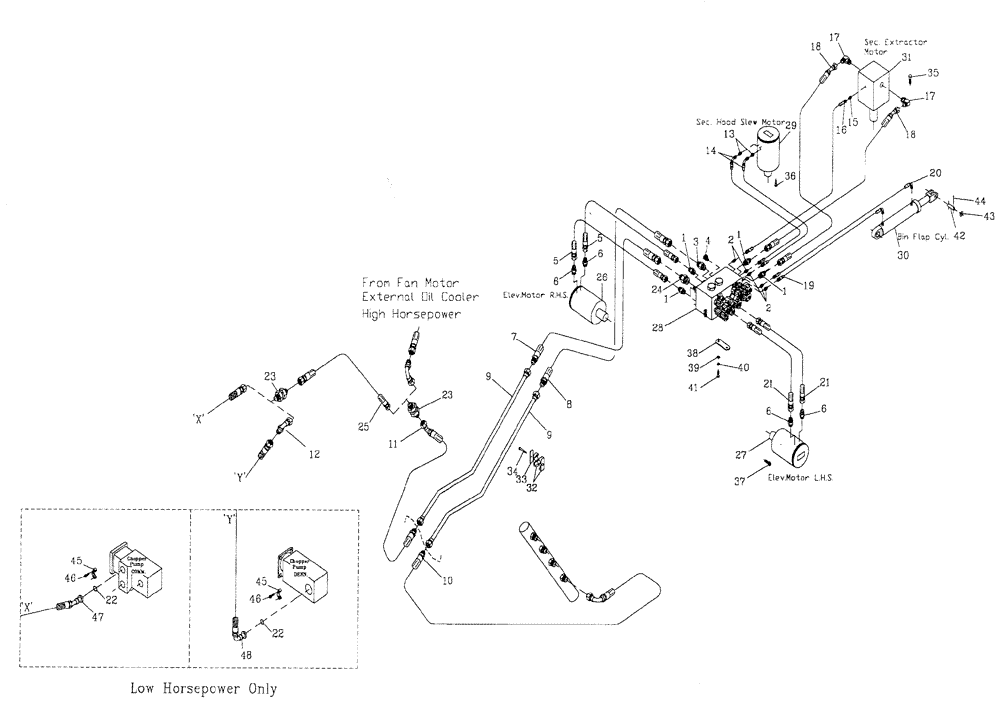

Запчасти Case IH 7700 (B06[28]) - HYDRAULIC CIRCUIT {ELEVATOR} Hydraulic Components & Circuits

1

00400231

HYD CONNECTOR

NIPPLE

4шт.

2

00400223

HYD CONNECTOR

NIPPLE

5шт.

3

00400234

HYD CONNECTOR

NIPPLE

1шт.

4

00405498

SCREW ON COUPLING

POINT test

1шт.

5

81965200

HOSE

Standard Elevator

2шт.

5

81967000

HOSE ASSY.

Extended Elevator

2шт.

6

00400229

HYD CONNECTOR

NIPPLE

4шт.

7

87250079

HOSE ASSY.

[standard/ extended elevator]

1шт.

7

87255995

HOSE [Kratz]

1шт.

8

87255996

HOSE ASSY.

HOSE [standard/ extended elevator]

1шт.

8

87255994

HOSE,25.4mm ID x 1800mm L, SAE 100R17

HOSE [Kratz]

1шт.

9

87247175

TUBE,25.40 mm OD

2шт.

10

87247906

HOSE ASSY.

1шт.

11

87252188

HOSE ASSY.

1шт.

12

00407240

HYD CONNECTOR

BEND

1шт.

13

00400074

HYD CONNECTOR

NIPPLE

2шт.

14

87217481

HOSE [standard elevator]

2шт.

14

86306890

HOSE

HOSE, Extended Elevator/ Kratz

2шт.

14

00000000

HOSE (Louisiana)

2шт.

15

00400162

HYD CONNECTOR

NIPPLE

1шт.

16

87248824

HOSE,6.35mm ID x 1350mm L, SAE 100R17

[Standard elevator]

1шт.

16

82713500

HOSE ASSY.

HOSE [extended elevator/ Kratz]

1шт.

16

00000000

HOSE (Louisiana)

1шт.

17

00400246

HYD CONNECTOR

ELBOW

2шт.

18

87121700

HOSE

[standard elevator]

2шт.

18

87236502

HOSE ASSY.

[extended elevator/ Kratz]

2шт.

18

00000000

HOSE (Louisiana)

2шт.

19

82745900

HOSE ASSY.,6.35mm ID x 1440mm L, SAE 100R17

[standard elevator]

1шт.

19

79100295

CONTROL VALVE

HOSE [extended elevator/ Kratz]

1шт.

19

00000000

HOSE (Louisiana)

1шт.

20

79100295

CONTROL VALVE

HOSE [standard elevator]

1шт.

20

84004000

HOSE,6.35mm ID x 1670mm L, SAE 100R17

HOSE [extended elevator/ Kratz]

1шт.

20

00000000

HOSE (Louisiana)

1шт.

21

81967000

HOSE ASSY.

Standard Elevator

2шт.

21

87227010

HOSE [extended elevator/ Kratz]

2шт.

22

00100024

O-RING

1шт.

23

00400067

HYD CONNECTOR

NIPPLE

2шт.

24

00400236

HYD CONNECTOR

NIPPLE

1шт.

25

82710200

HOSE

1шт.

26

MOTOR hydraulic

1шт.

Refer Figure B03.04

1шт.

27

MOTOR hydraulic

1шт.

Refer Figure B03.03

1шт.

28

VALVE hydraulic solenoid

1шт.

Refer Figure B05.12

1шт.

29

MOTOR hydraulic

1шт.

Refer Figure B03.08

1шт.

30

CYLINDER hydraulic

1шт.

Refer Figure B02.10

1шт.

31

MOTOR hydraulic

1шт.

Refer Figure B03.14

1шт.

32

00405072

CLAMP

3шт.

33

00405228

COVER PLATE

3шт.

34

FA108045

BOLT

3шт.

35

00601511

BOLT

4шт.

36

00601495

BOLT

4шт.

37

00601506

BOLT

4шт.

38

87255819

PLATE

[short]

1шт.

38

87255820

PLATE

[long]

1шт.

39

WA100000

WASHER

4шт.

40

WB100000

WASHER

4шт.

41

FA110030

BOLT

4шт.

42

82087400

PIN,15.88mm OD x 68mm L

2шт.

43

WA160000

WASHER

2шт.

44

SA050050

COTTER PIN

2шт.

45

00400151

SPECIAL CLAMP

4шт.

46

00604462

SCREW

2шт.

47

87254838

HOSE

1шт.

48

82710700

HOSE

1шт.
