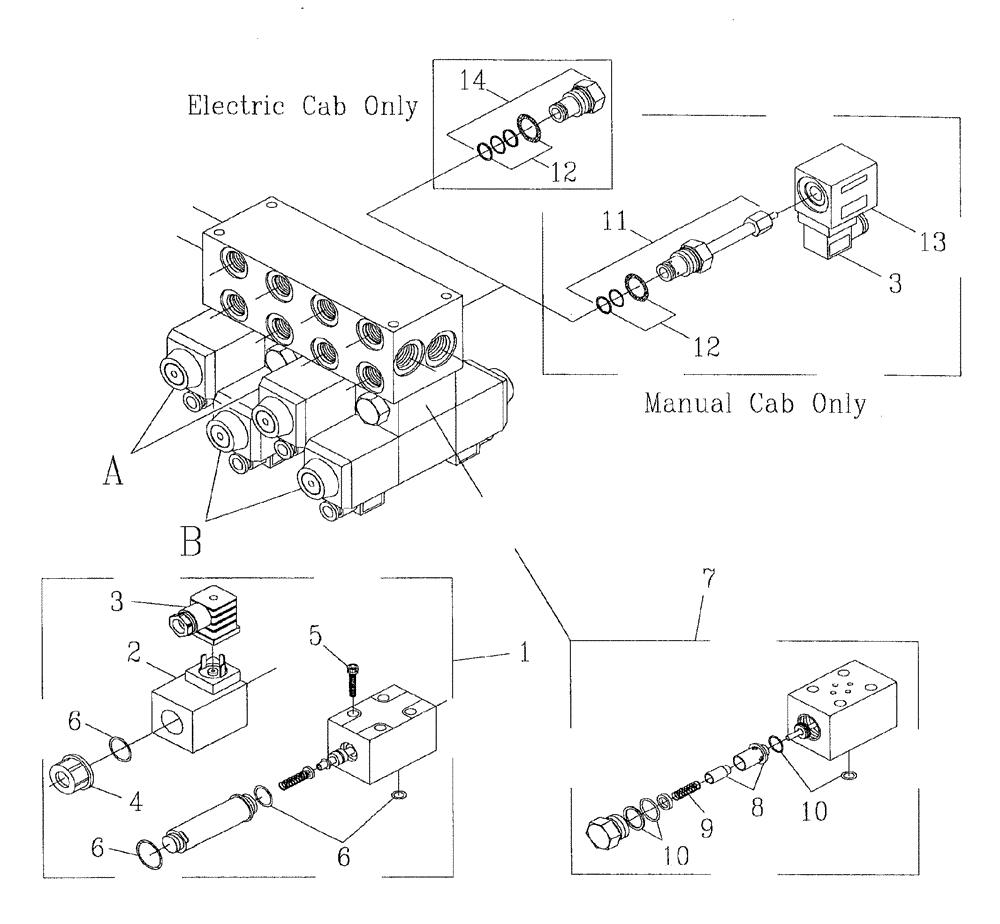

Запчасти Case IH 7700 (B05[10]) - HYDRAULIC VICKERS RELIEF VALVE Hydraulic Components & Circuits

1

00410121

HYDRAULIC VALVE

ASSEMBLY cetop - A

2шт.

1

00410122

HYDRAULIC VALVE

ASSEMBLY cetop - B

2шт.

2

00409922

COIL

solenoid

2шт.

3

00409524

ELEC CONNECTOR

PLUG

2шт.

4

00409924

NUT

nylon

2шт.

5

00409891

BOLT

KIT A assembly

1шт.

5

00410117

KIT

BOLT B assembly

1шт.

6

00409929

SEAL KIT

1шт.

7

00410116

VALVE

pilot check

2шт.

8

00410169

KIT

poppet

2шт.

9

00410170

SPRING

KIT

1шт.

10

00410171

SEAL KIT

1шт.

11

00410038

SOLENOID

CARTRIDGE [mechanical cabin]

1шт.

12

00408151

SEAL KIT

1шт.

13

00410172

SOLENOID

COIL

1шт.

14

00409847

PLUG

[electric cabin]

1шт.

15

00410025

VALVE

ASSEMBLY [4 bank electric cabin]

1шт.

15

00410028

VALVE

ASSEMBLY [4 bank mechanical cabin]

1шт.

15

00410026

VALVE

ASSEMBLY [5 bank]

1шт.
