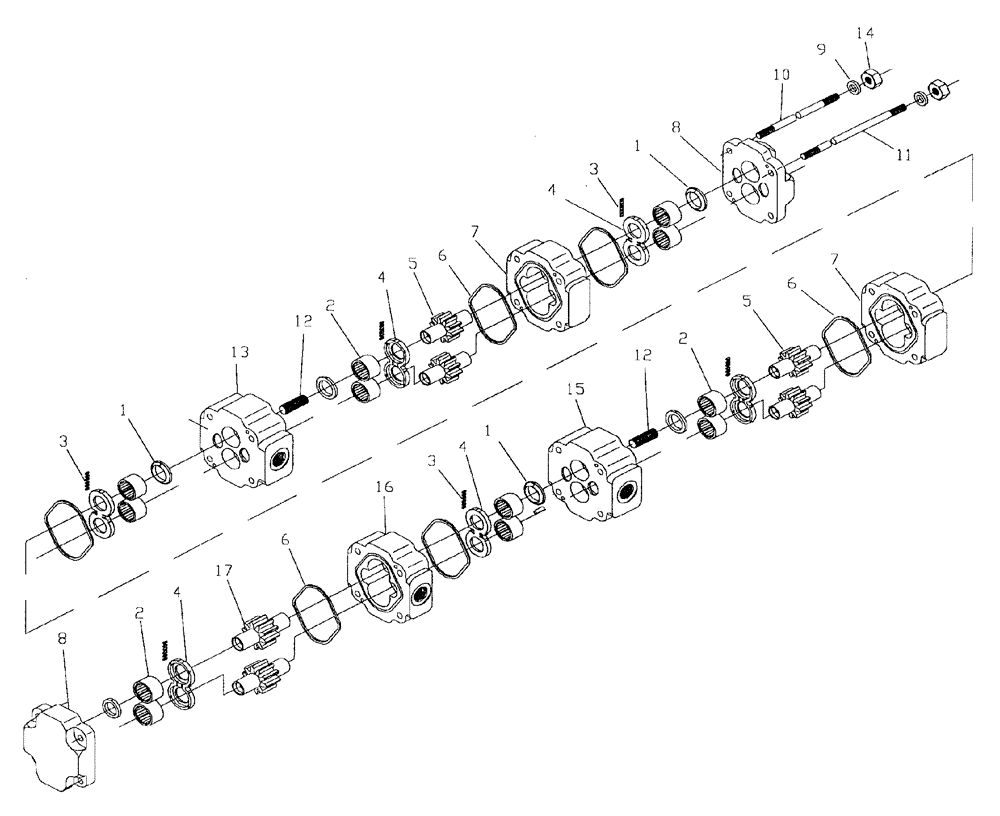

Запчасти Case IH 7700 (B04[12]) - FLOW DIVDER HIGH HORSEPOWER Hydraulic Components & Circuits

1

00400507

SEAL

6шт.

2

00400508

BEARING

roller

12шт.

3

00409760

ASSEMBLY

STRIP seal

6шт.

4

00400516

RETAINER

PLATE thrust

6шт.

5

00400536

GEAR

SET

2шт.

6

00400518

GASKET

6шт.

7

00400572

HOUSING

2шт.

8

00407886

COVER

COVER end

2шт.

9

00400531

WASHER

8шт.

10

00400668

STUD

[short]

2шт.

11

00400686

STUD

[long]

2шт.

12

00400527

SHAFT

2шт.

13

00409905

CARRIER

CARRIER

1шт.

14

00400532

NUT

8шт.

15

00409904

CARRIER

CARRIER

1шт.

16

00409903

TRANSMISSION HOUSING

HOUSING

1шт.

17

00402877

GEAR SET

1шт.

18

00409827

FLOW DIVIDER

ASSEMBLY

1шт.
