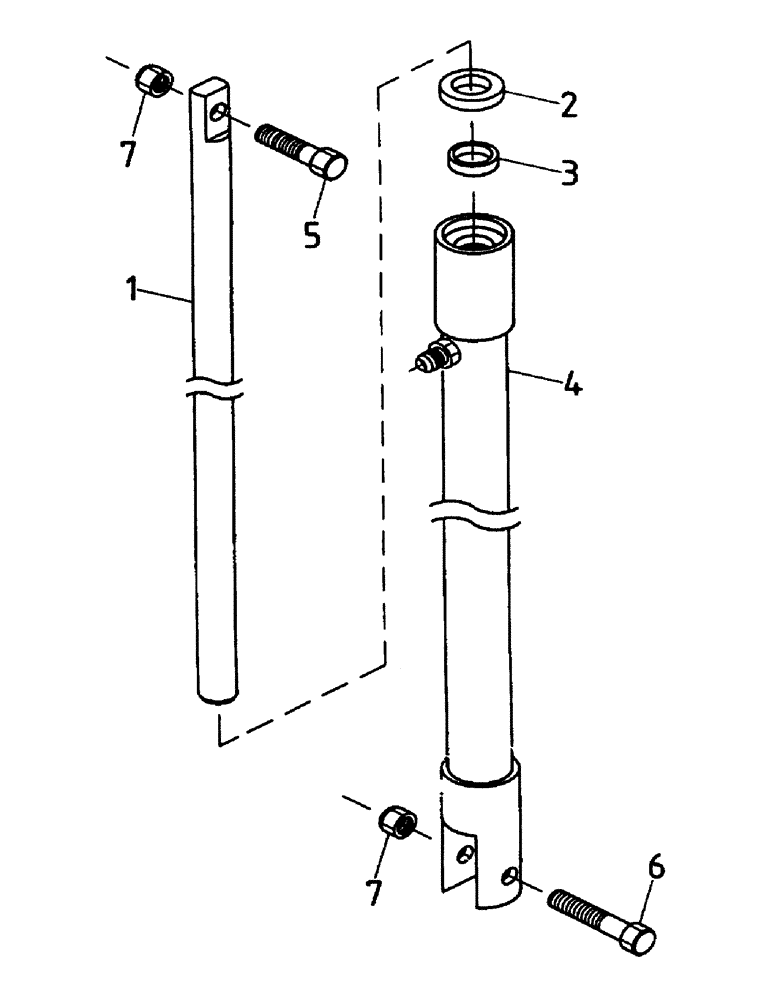

Запчасти Case IH 7700 (B02-12) - HYDRAULIC CYLINDER, HEIGHT INDICATOR 7700 Hydraulic Components & Circuits

1

87237350

SHAFT,22.23mm OD x 692mm L

ROD

1шт.

2

00100552

OIL SEAL

SEAL

1шт.

3

00100759

OIL SEAL

SEAL

1шт.

4

87250161

CYLINDER ASSY.

BARREL (LH)

1шт.

4

87250162

CYLINDER ASSY.,25mm Bore Dia

BARREL (RH)

1шт.

5

FM112045

BOLT

1шт.

6

FM112060

BOLT

1шт.

7

NC112000

NUT

NUT

2шт.

8

87250159

INDICATOR

ASSEMBLY (LH)

1шт.

8

87250160

HYDRAULIC CYLINDER

ASSEMBLY (RH)

1шт.
