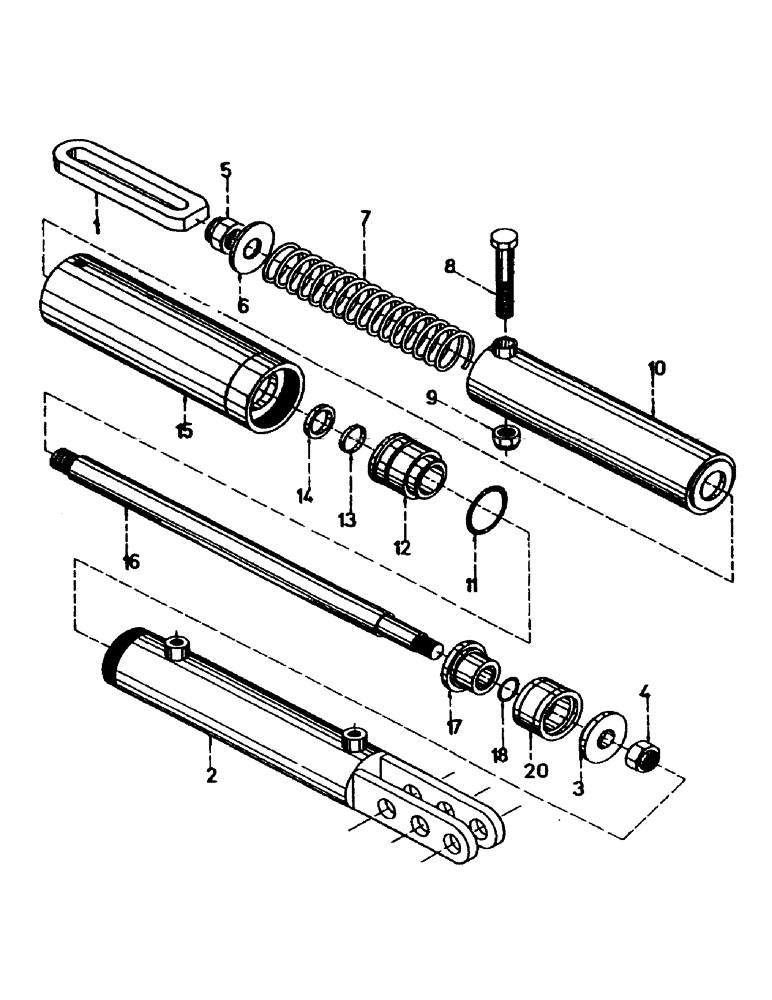

Запчасти Case IH 7700 (B02-02) - HYDRAULIC CYLINDER, CROPDIVIDER LIFT ARMS Hydraulic Components & Circuits

1

87254262

PLATE

TONGUE

1шт.

2

87235045

CYLINDER,65mm Bore Dia

BARREL

1шт.

3

86787900

PISTON

RETAINER

1шт.

4

00606612

NUT

1шт.

5

00606020

LOCK NUT

NUT

1шт.

6

87239942

WASHER,25.5mm ID x 76.2mm OD x 8mm Thk

1шт.

7

87239933

SPRING

1шт.

8

FM120150

BOLT

1шт.

9

NC120000

NUT

NUT

1шт.

10

87239934

SPRING

TUBE

1шт.

11

00100106

O-RING

1шт.

12

87214803

CYLINDER HEAD

GLAND

1шт.

13

00100758

OIL SEAL

SEAL

1шт.

14

00100675

SEAL

WIPER

1шт.

15

87239938

GLAND

NUT (Welded Assembly)

1шт.

16

87240097

SHAFT

ROD

1шт.

17

86787800

PISTON

1шт.

18

00100019

O-RING

1шт.

20

00100716

OIL SEAL

SEAL

1шт.

21

87214805

SEAL KIT

1шт.

22

87254261

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 128mm Stroke

ASSEMBLY

2шт.
