(B06-40) - HYDRAULIC CIRCUIT, REMOTE OIL COOLER

Запчасти Case IH 7700 (B06-40) - HYDRAULIC CIRCUIT, REMOTE OIL COOLER Hydraulic Components & Circuits

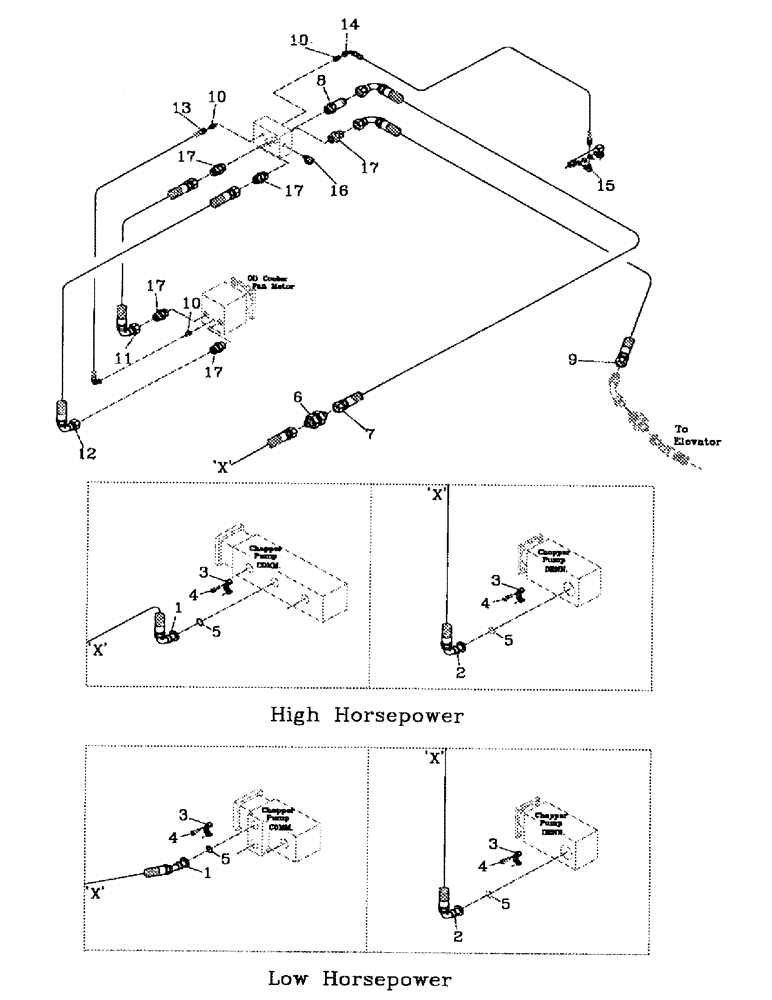

Схема запчастей Case IH 7700 - (B06-40) - HYDRAULIC CIRCUIT, REMOTE OIL COOLER Hydraulic Components & Circuits
2
10
10
4
8
3
4
14
3
6
17
17
16
17
5
4
12
3
11
4
1
5
15
1
5
2
7
10
17
13
17
3
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87252561

HOSE ASSY.

HOSE (High Horsepower)

1шт.

1

87254838

HOSE (Low Horsepower)

1шт.

2

83134400

HOSE

(High Horsepower)

1шт.

2

87254483

HOSE

(125 High Horsepower)

1шт.

2

87254476

HOSE

(Low Horsepower)

1шт.

3

00400151

SPECIAL CLAMP

CLAMP (PAIR)

1шт.

4

00604462

SCREW

4шт.

5

00100024

O-RING

1шт.

6

00400067

HYD CONNECTOR

NIPPLE

1шт.

7

86310296

HOSE ASSY.

HOSE

1шт.

8

00409816

ADAPTER

EXTENDED NIPPLE

1шт.

9

82765500

HOSE,25.4mm ID x 2130mm L, SAE 100R16

1шт.

10

00400223

HYD CONNECTOR

NIPPLE

3шт.

11

81684500

HOSE ASSY.

HOSE

1шт.

12

82703800

HOSE ASSY.

HOSE

1шт.

13

87225582

HOSE

HYDRAULIC HOSE

1шт.

14

82756500

HYDRAULIC HOSE,6.35mm ID x 1490mm L, SAE 100R17

HOSE

1шт.

15

00402879

HYD CONNECTOR

ELBOW

1шт.

16

00405498

SCREW ON COUPLING

TEST POINT

1шт.

17

00400234

HYD CONNECTOR

NIPPLE

3шт.
